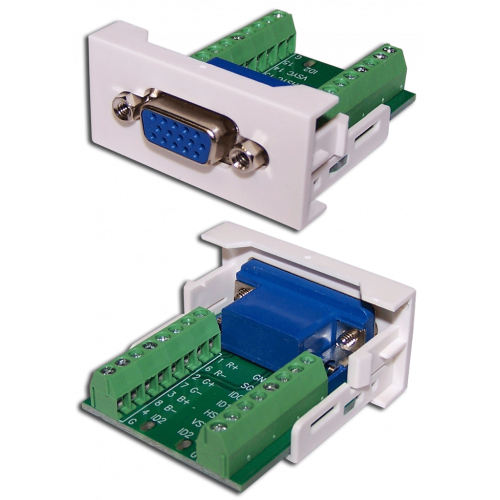

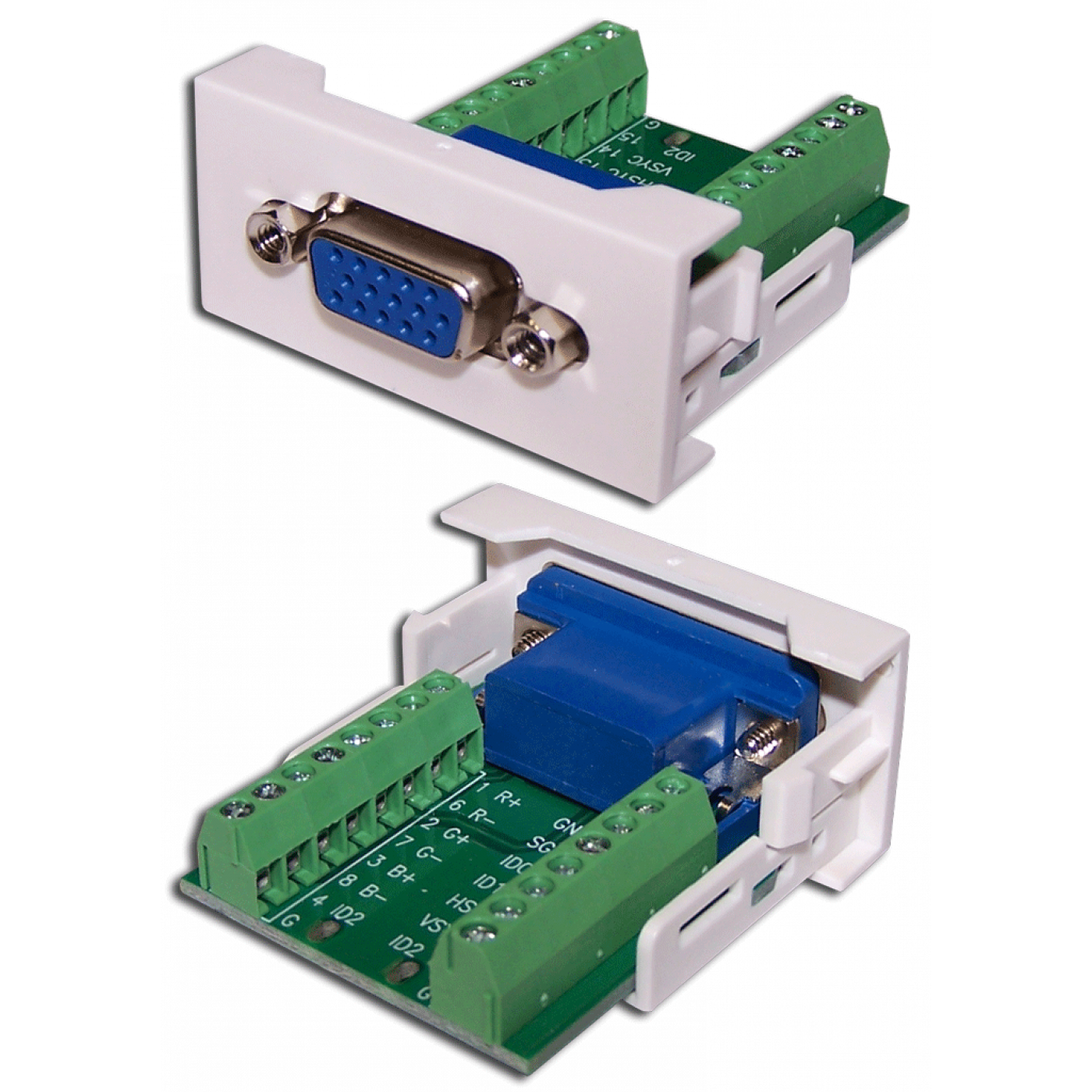

22.5x45 Mosaic adapter with VGA D-SUB (HDB-15) connector, female, white

22.5x45 Mosaic adapter with VGA D-SUB (HDB-15) connector, female, white
22.5x45 Mosaic adapter with VGA D-SUB (HDB-15) connector, female, white
LAN-WA-LP-VGA16-WH

The front panel is designed to organize connection points for monitors or projectors with VGA/SVGA D-Sub connectors.

On the front side, the module is equipped with a D-SUB (HDB-15) connector. Termination of the cable from the rear side of the panel is carried out on screw blocks.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

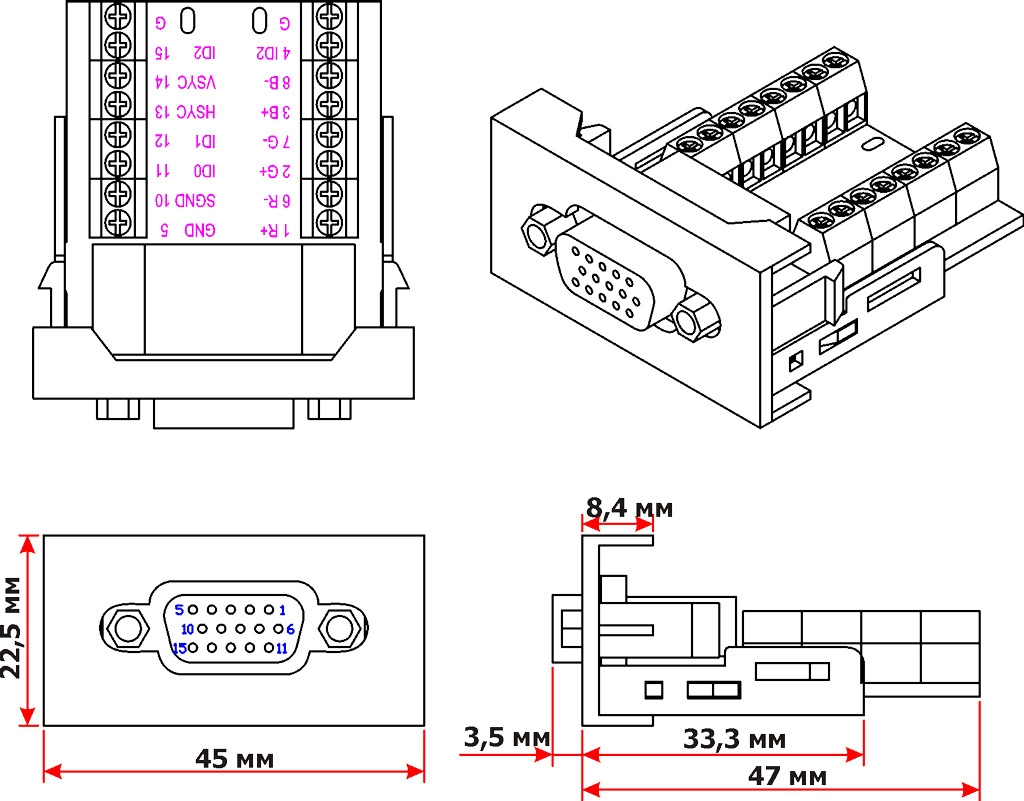

Dimensions


Model range (1)

  • Code Code / Name Name Количество
  • LAN-WA-LP-VGA16-WH
    22.5x45 Mosaic adapter with VGA D-SUB (HDB-15) connector, female, white
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
