22.5x45 Mosaic insert with TV socket, white

22.5x45 Mosaic insert with TV socket, white
22.5x45 Mosaic insert with TV socket, white
LAN-WA-LP-TV-WH

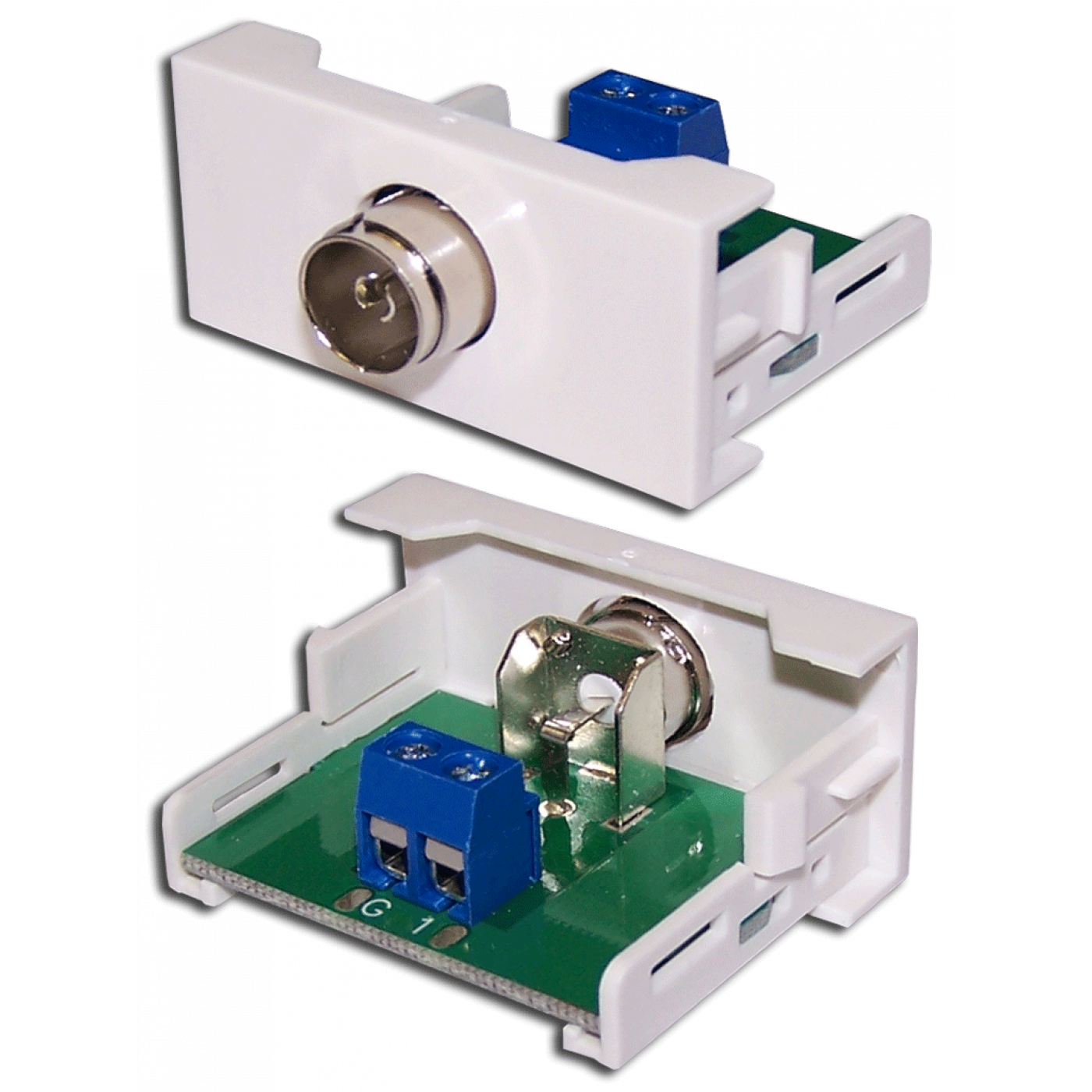

The front panel is designed to organize the connection point for the coaxial cable.

On the front side, the module is equipped with a PAL female socket. The termination of the cable conductors from the back is carried out in the screw block. Common TV/PAL coaxial plug is used to connect cables for TV, video, antenna amplifier, CATV network, etc.

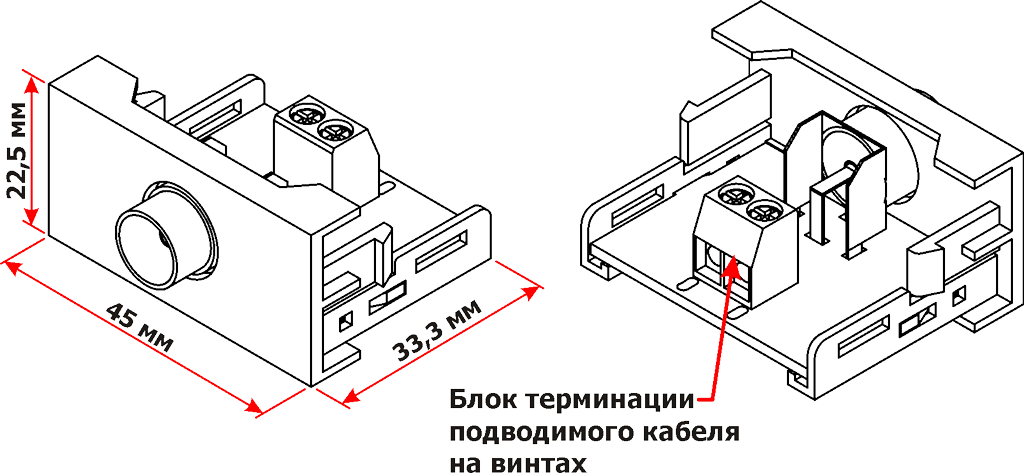

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

Dimensions


Model range (1)

  • Code Code / Name Name Количество
  • LAN-WA-LP-TV-WH
    22.5x45 Mosaic insert with TV socket, white
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
