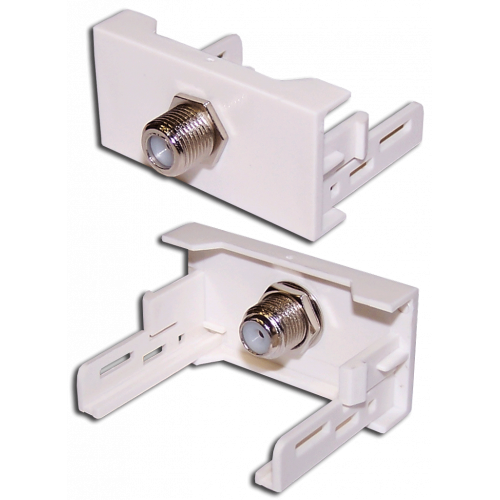

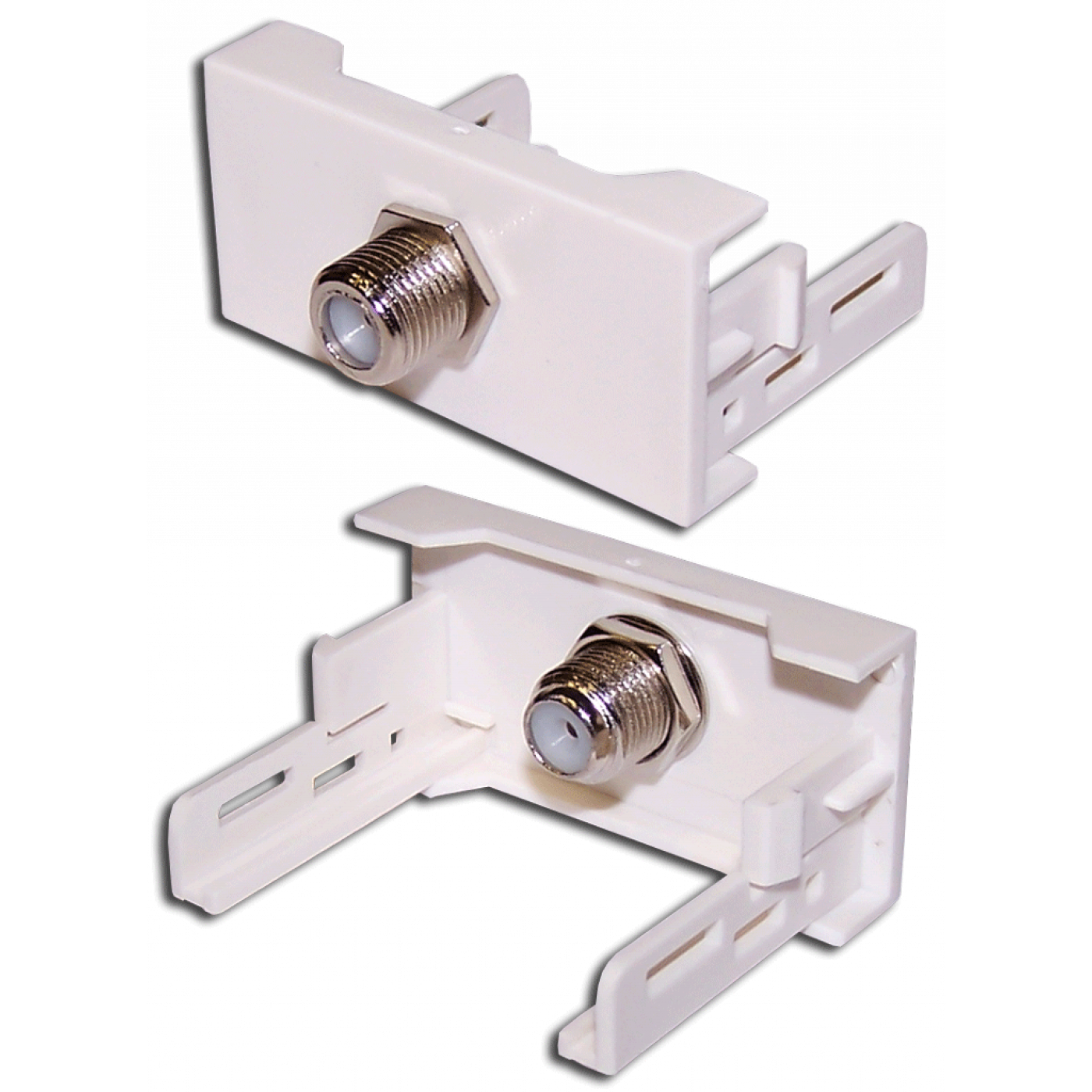

22.5x45 Mosaic insert with F-81 RF-adapter, white

22.5x45 Mosaic insert with F-81 RF-adapter, white
22.5x45 Mosaic insert with F-81 RF-adapter, white
LAN-WA-LP-RF-WH

The front panel is designed to organize the connection point for the coaxial cable.

The panel is equipped with an F-81 adapter. Termination of the incoming cable and outgoing cord is carried out using F-connectors on both sides.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

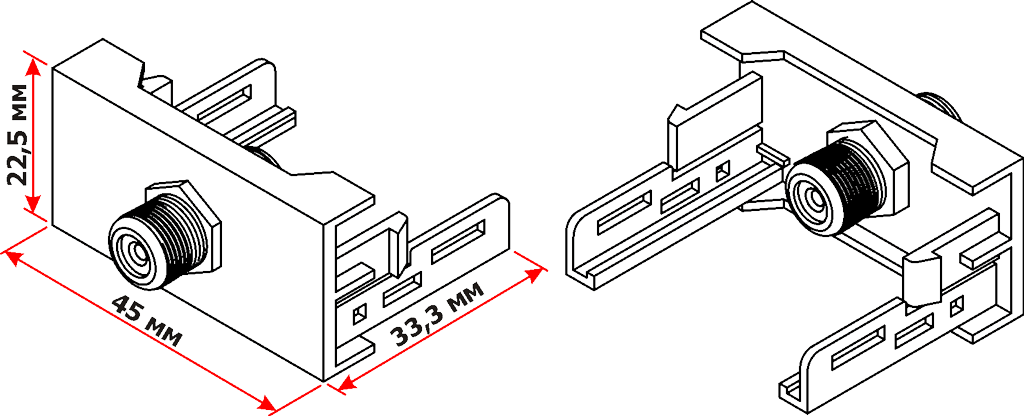

Dimensions


Model range (1)

  • Code Code / Name Name Количество
  • LAN-WA-LP-RF-WH
    22.5x45 Mosaic insert with F-81 RF-adapter, white
