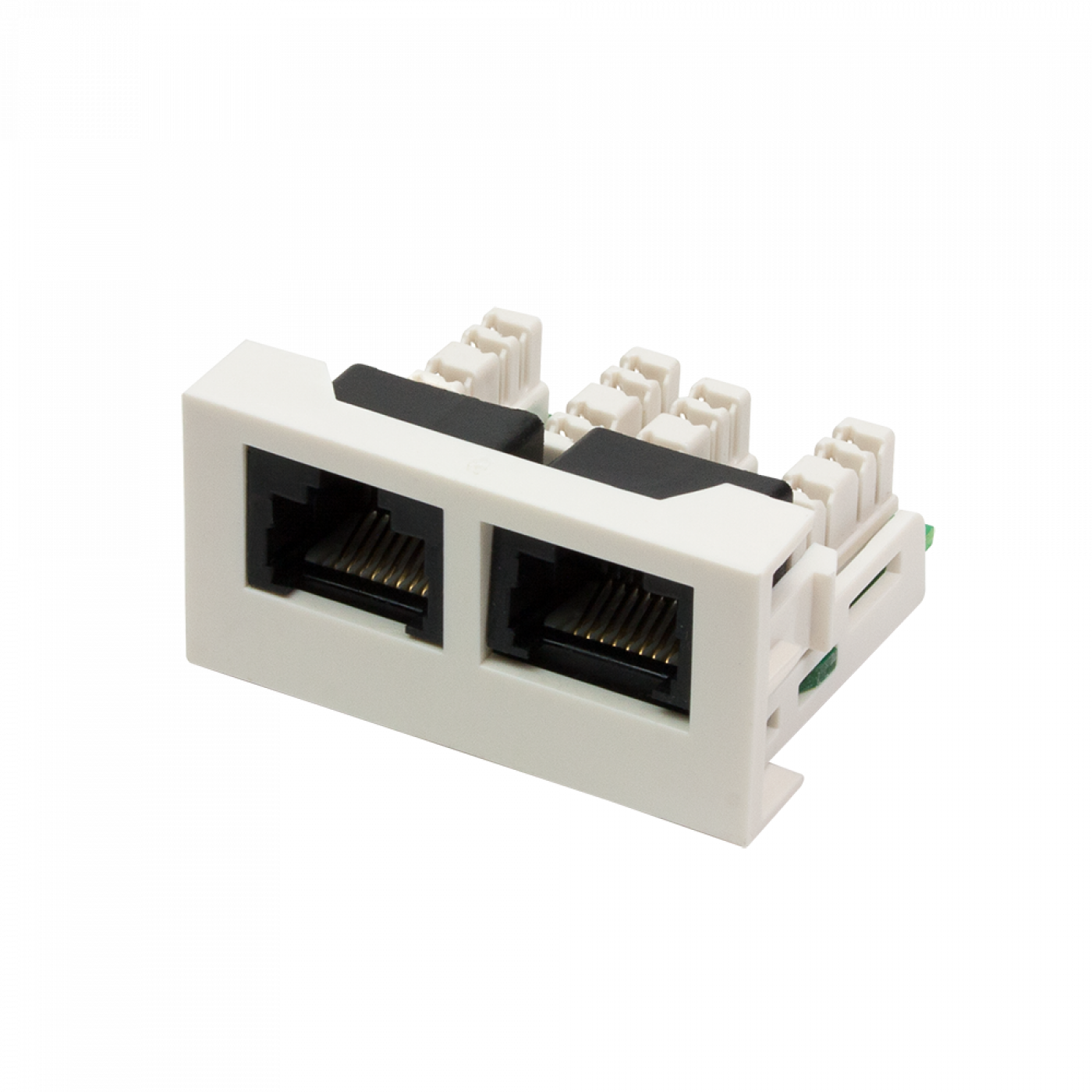

22.5x45 Mosaic insert with 2xRJ45 Cat.6 sockets, white

22.5x45 Mosaic insert with 2xRJ45 Cat.6 sockets, white
22.5x45 Mosaic insert with 2xRJ45 Cat.6 sockets, white
LAN-WA-LP-2x45/6-WH

The front panel with built-in category 6 UTP RJ-45 (8P8C) modules is designed to organize a two-socket workplace for unshielded data and voice networks.

Termination of the cable from the rear side of the panel is done by the method of insulation displacement contact (IDC) on the LSA type termination block. To ensure error-free connection, all contacts of the blocks have digital identifiers.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

Model range (1)

  • Code Code / Name Name Количество
  • LAN-WA-LP-2x45/6-WH
    22.5x45 Mosaic insert with 2xRJ45 Cat.6 sockets, white
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
