22.5x45 Mosaic insert with 2xRCA Stereo Audio, white

22.5x45 Mosaic insert with 2xRCA Stereo Audio, white
22.5x45 Mosaic insert with 2xRCA Stereo Audio, white
LAN-WA-LP-2RCA-WH

The front panel is designed to organize the audio line connection point. RCA (or composite) jack, widely used in audio and video equipment.

The front panel is designed to organize the audio line connection point. RCA (or composite) jack, widely used in audio and video equipment.

The front panel is used to complete Mosaic sockets, for installation in floor hatches, minicolumns, wall blocks. The panel has a size of 45x22.5, installation is done by snapping into the mounting frame.

Supplied individually packed.

Made of ABS.

Color is white RAL9010.

Terminals Description and Dimensions

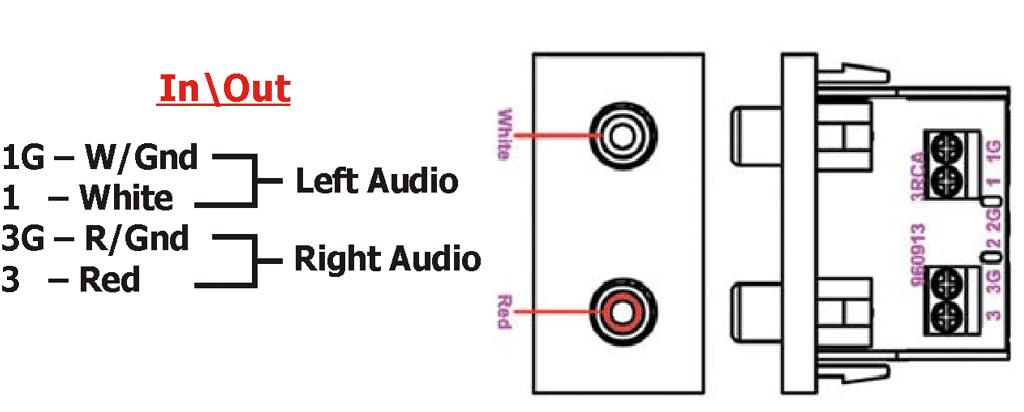

Terminal Assignments


Model range (1)

  • Code Code / Name Name Количество
  • LAN-WA-LP-2RCA-WH
    22.5x45 Mosaic insert with 2xRCA Stereo Audio, white
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
