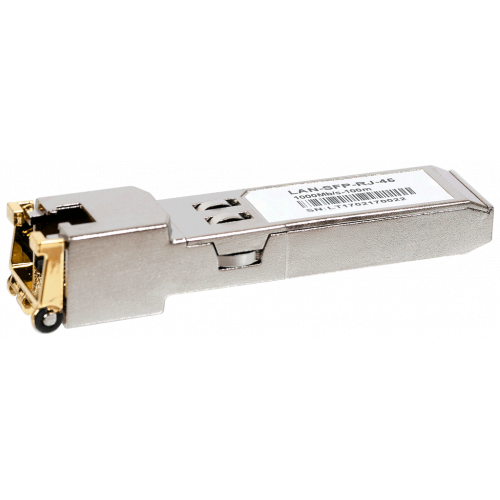

RJ-45 1000BaseT SFP module, Cisco

RJ-45 1000BaseT SFP module, Cisco
RJ-45 1000BaseT SFP module, Cisco
LAN-SFP-RJ45

SFP module with support for the 1000Base-T standard provides data transmission over twisted-pair cable of category 5e at a distance up to 100 meters.

SFP modules support hot-swap mode and can have DDM (Digital Diagnostic Monitoring) function, with which you can monitor various parameters of the module in real time.

The software of the modules supports interoperability with equipment of different brands, depending on the selected firmware version.

Key features:

  • Support for 1000BASE-T in server systems
  • Hot-swap (hot-pluggable)
  • Data transmission distance up to 100 m over UTP Category 5e cable
  • Compact housing with RJ45 connector
  • Metal case for low EMI
  • Low heat dissipation at 1.06 W Низкое тепловыделение 1.05Вт
  • Operating temperature range: 0 °C to 70 °C
  • Connection to physical access chip via 2-wire serial interface

Applications:

  • 10000Base-T LAN
  • Switch-to-switch interface
  • Server-router interface

Model range (2)

  • Code Code / Name Name Количество
  • LAN-SFP-RJ45
    RJ-45 1000BaseT SFP module, Cisco
  • LAN-SFPi-RJ45
    RJ-45 1000BaseT SFP module, 100 m, industrial, Cisco
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
