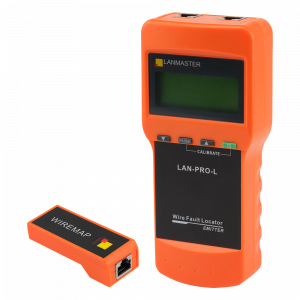

Cable tester with length measurement, one remote identifier
Cable tester with length measurement, one remote identifier
LAN-PRO-L

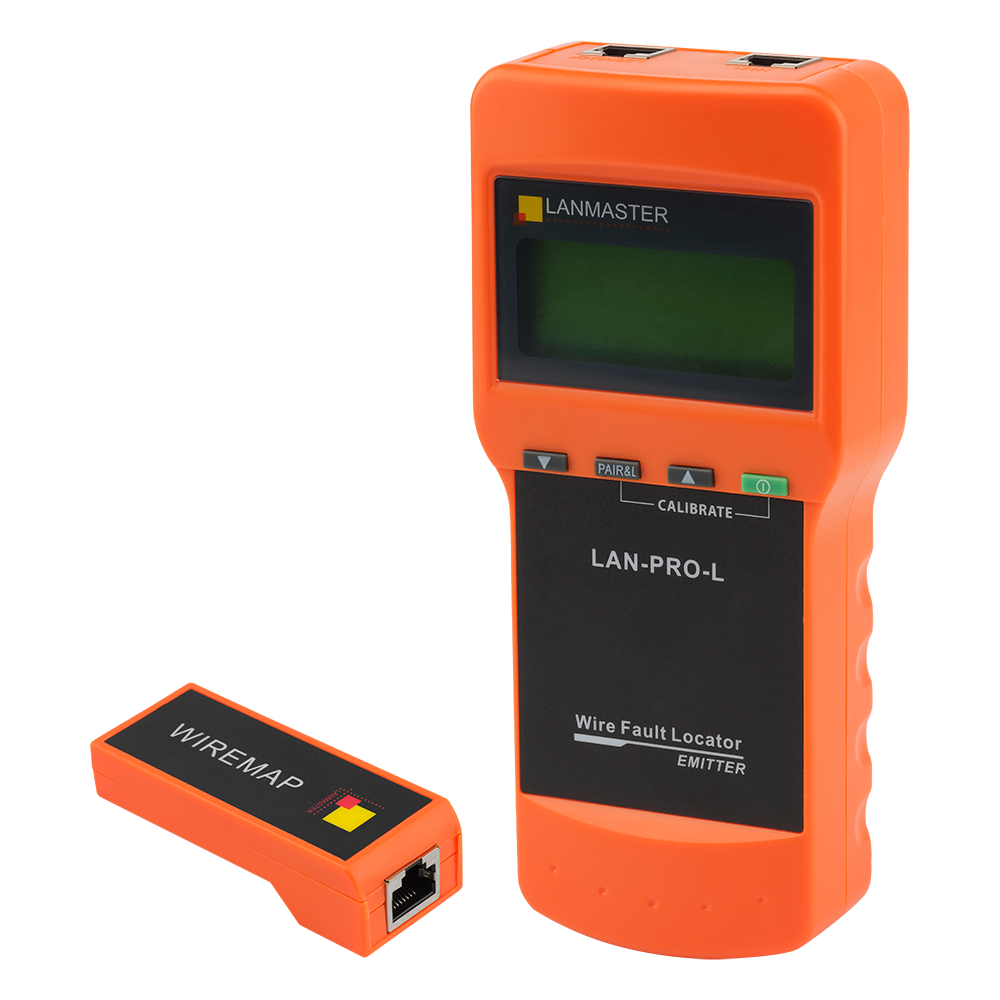

The LAN-PRO-L tester is designed to test copper twisted pair communication lines, phone, and coaxial cables. It can detect line faults (reversed pairs, opens and shorts) and measure the length of each pair.
Specific adapters are included in the package:
- RJ45-BNC - for testing coaxial cables terminated with BNC type connectors.
- RJ45-crocodile, 1 pair - for testing single pairs or unterminated cables.
To save the battery, the tester switches to "Sleep mode" after 30 minutes of inactivity.

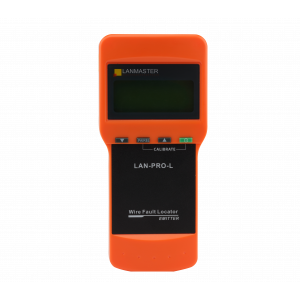

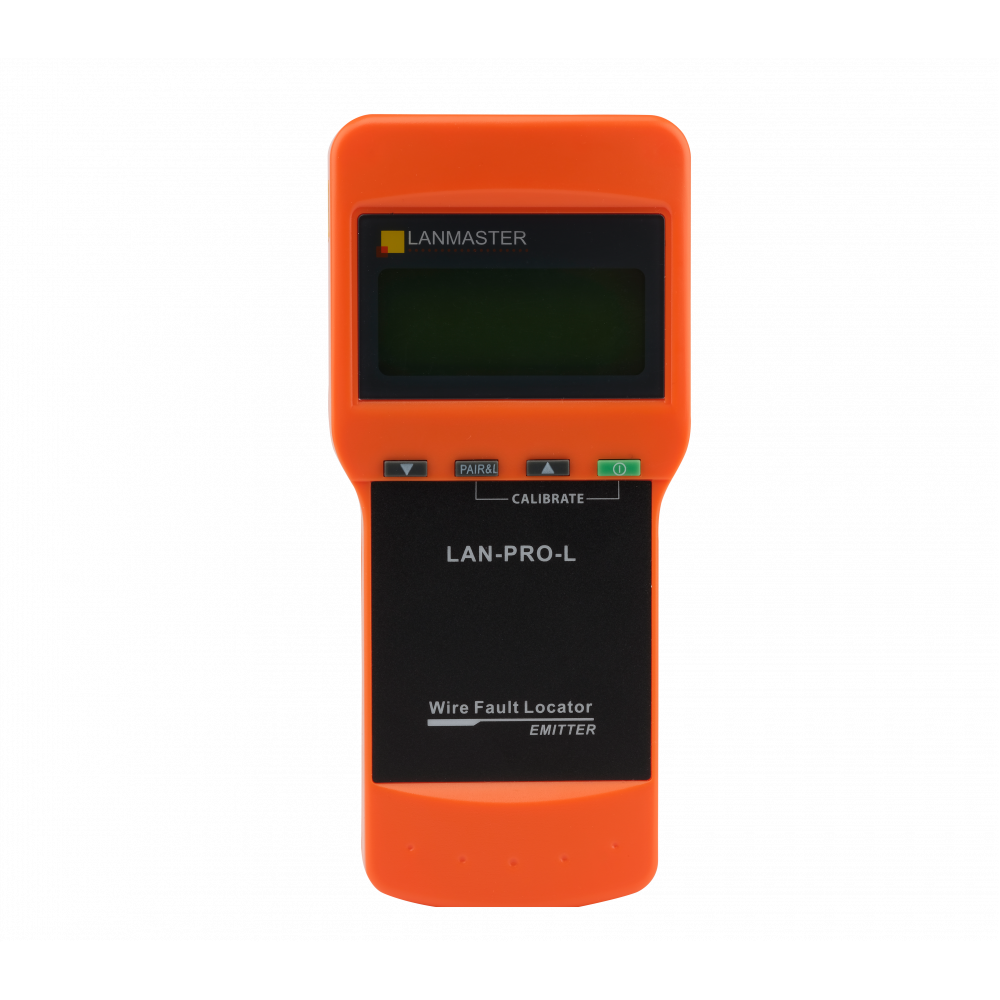

Head unit emitter technical specifications
| Display type | LCD |
| Display size | 53 х 25 mm |
| Maximum fault detection distance | 1000 m |
| Tested cables | Twisted pair: UTP, STP, cat. 5е, 6 Coaxial cables Phone twisted pair cables |
| Tone frequency | 225 Hz |
| Battery type | АА, 1.5V |
| Measurement accuracy | 3% |
| Body material | Plastic |
| Operating temperature range | -10ºC ~ +60ºC |
| Dimensions | 185 х 80 х 40 mm |

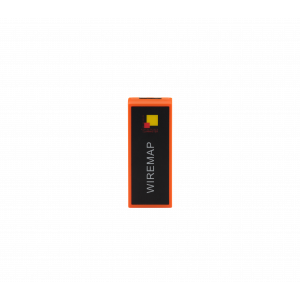

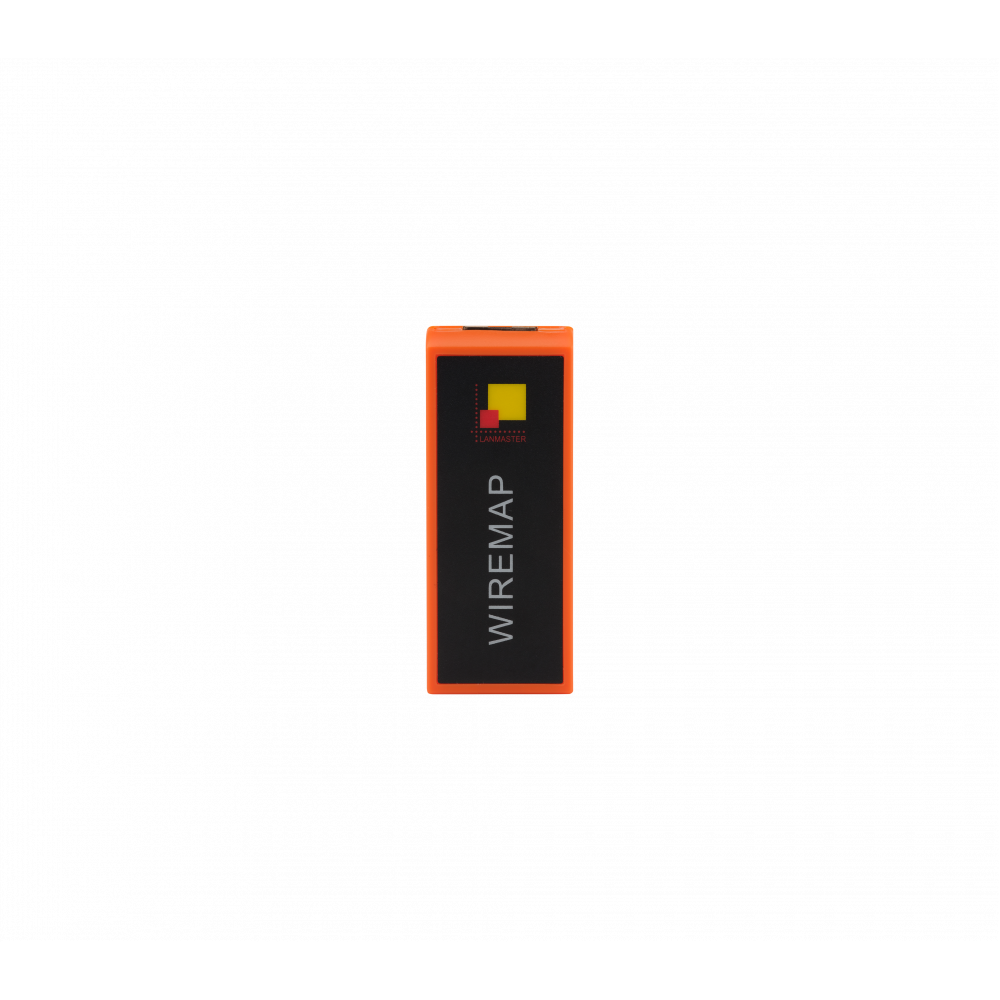

Remote identifier technical specifications
| Compatible connectors | RJ45 |
| Dimensions | 78 х 32 х 22 mm |

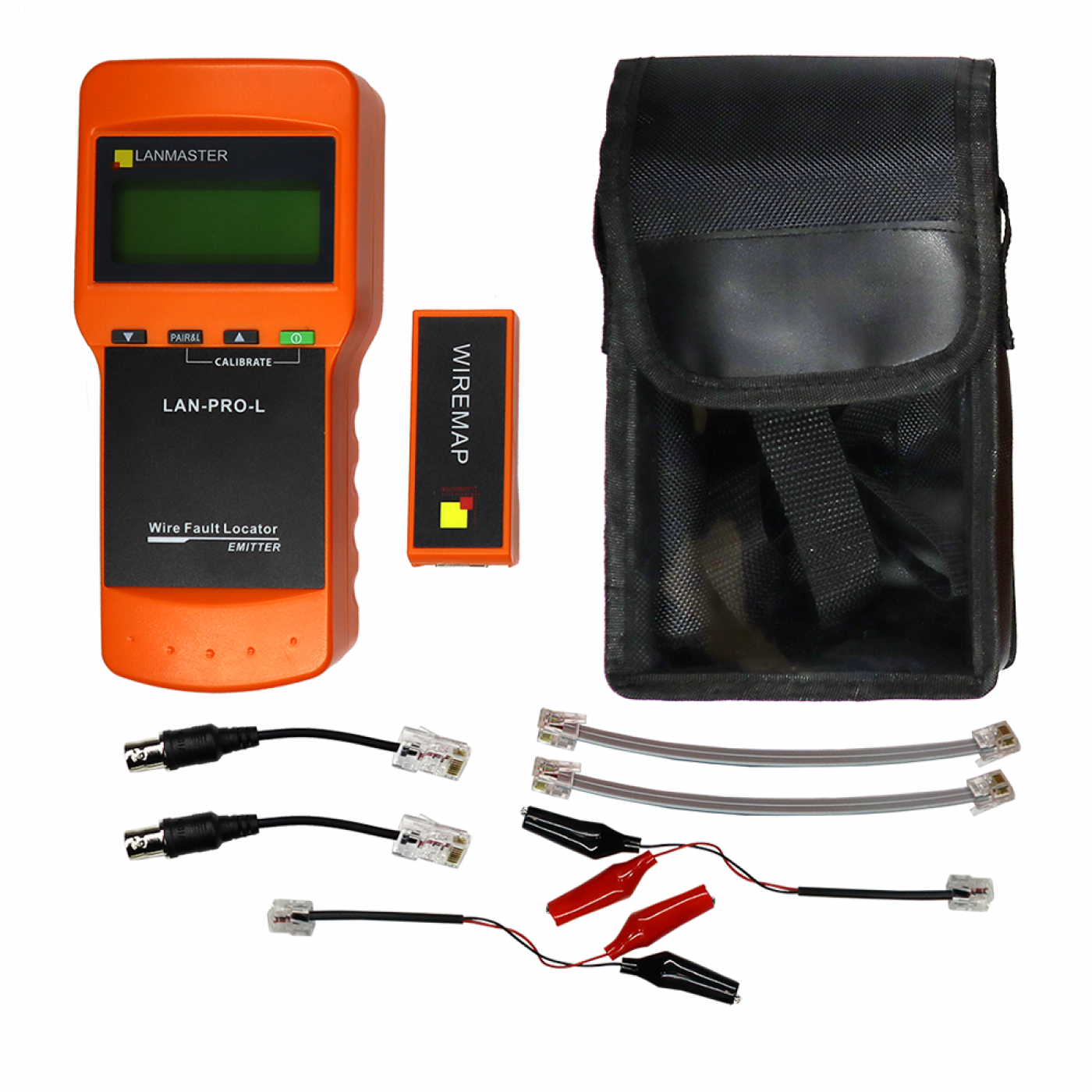

Package includes:
- Main unit (emitter) — 1 pc.,
- Remote identifier — 1 pc.,
- RJ-45 patch cord — 2 pcs.,
- RJ-45 – BNC adapter — 2 pcs.,
- RJ-45 - "crocodile" clip adapter — 2 pcs.,
- 1.5 V, АА battery — 4 pcs.,
- Carrying case — 1 pc.,
- User manual — 1 pc.
Warning!

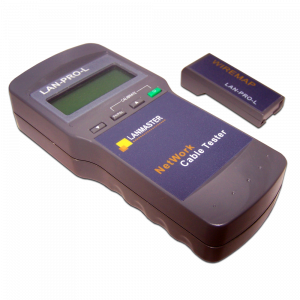

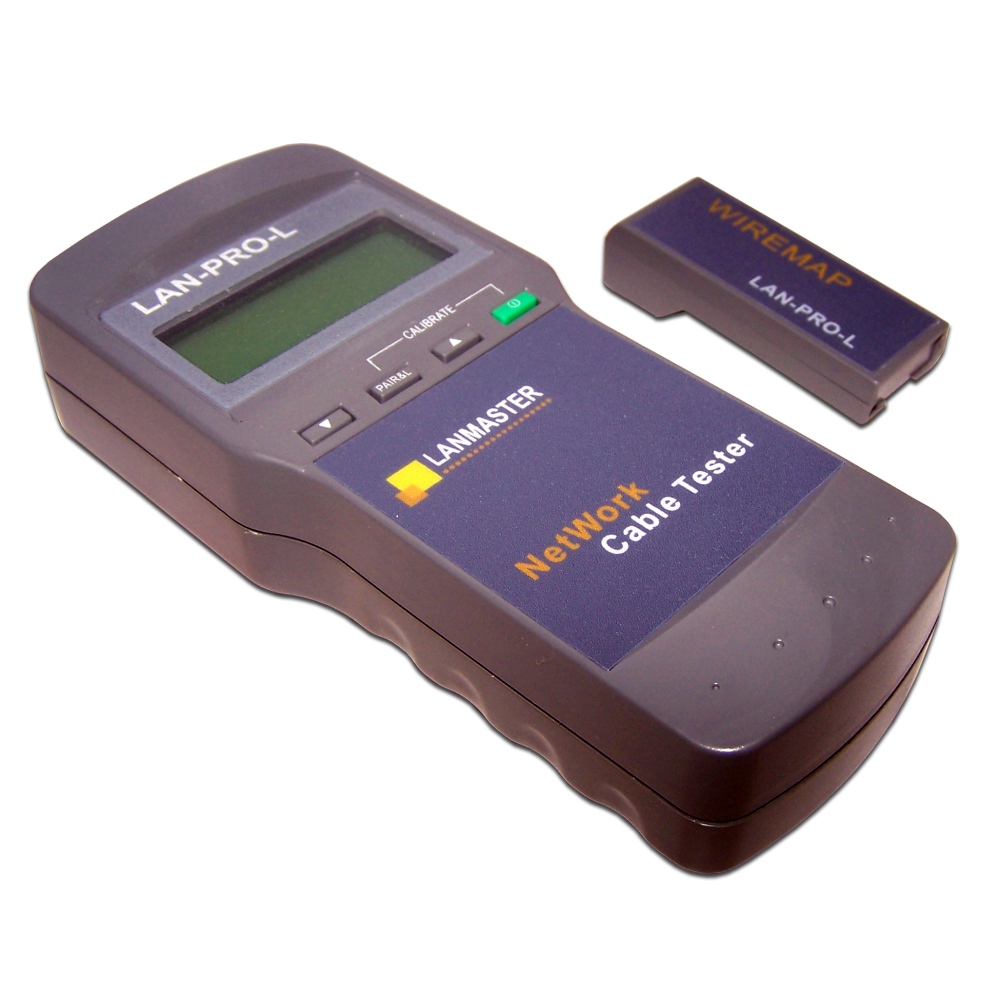

The body of the instrument has changed since the beginning of 2022.
Devices are available for shipment in the new and old bodies. Only the quantities currently in the manufacturer and distributors stocks are available in the old enclosure. Both versions of the device are covered by the official factory warranty from the manufacturer.
