Cable tester with length measurement, cable tracer, and POE detection, with time domain reflectometer function
Cable tester with length measurement, cable tracer, and POE detection, with time domain reflectometer function
LAN-PRO-L/TPK-TDR

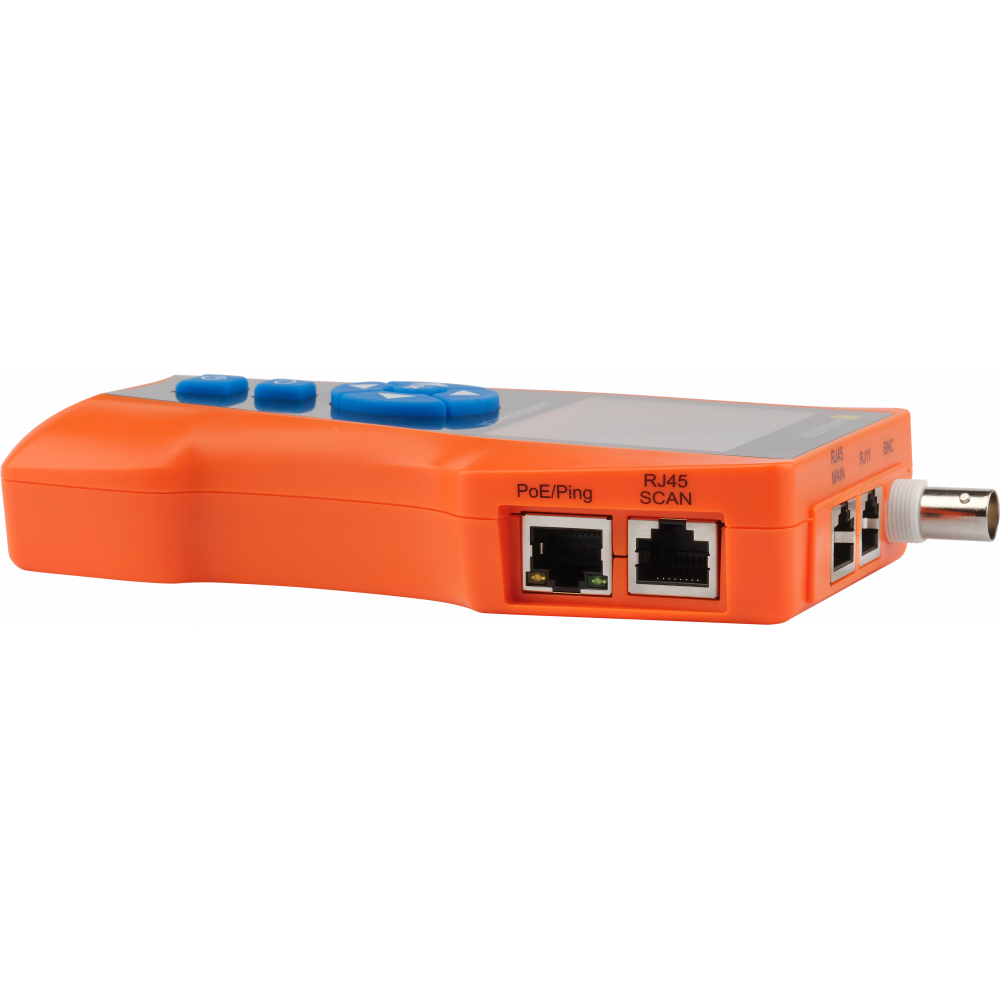

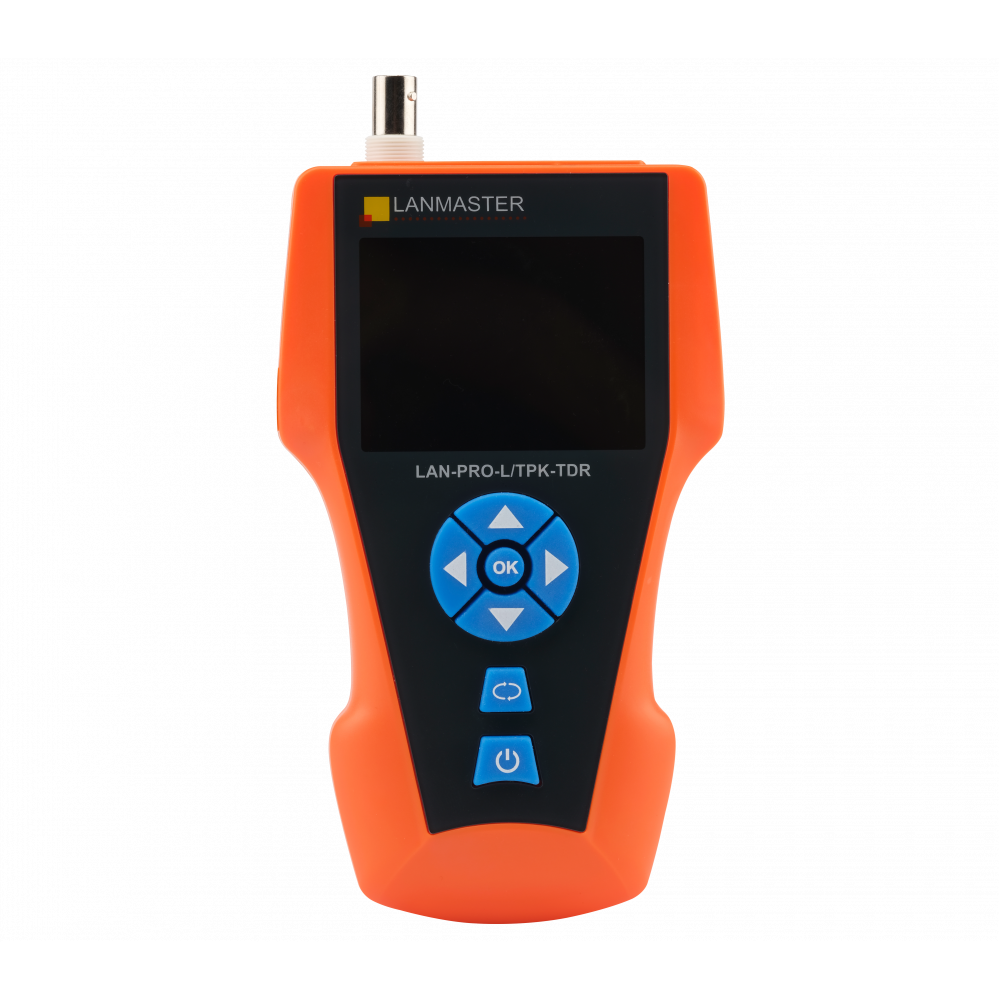

The LAN-PRO-L/TPK-TDR is designed for testing cable links. Allows to determine cable lengths, detect various faults, and display fault locations via an intuitive graphical interface (using the Time Domain Reflectometry method).
Instrument easily locates cables, traces them with an AC filter, and identify ports on a network switch using the flashing feature.
Device capabilities:
- Line fault detection by pulse reflectometry method (TDR) for precise fault location in communication lines.
- The device allows you to perform a Ping test in the local network, on the Internet.
- Detects the presence of "Power over Ethernet" (POE) and measures the voltage on the wires of the cables connected to the PoE ports.
- Automatically detects and assigns an IP address (DHCP client).
- Checking twisted pair, phone wiring, coaxial cable for open or short circuits.

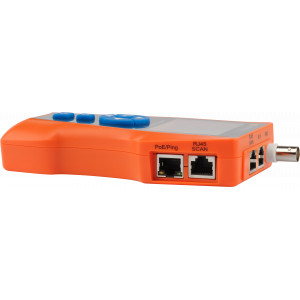

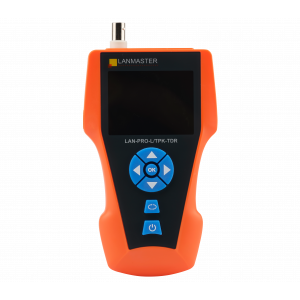

Head unit emitter technical specifications
| Display type | LCD |
| Display size | 60 х 45 mm |
| Cable length measurement range | 1 ~ 1500 m |
| Tested cables | Twisted pair: UTP, STP, cat. 5е, 6, 6a, CAT7 Coaxial cables Phone twisted pair cables Metal wires connected with crocodile clips |
| Minimum calibration distance | 20 m |
| Battery type | 3.7V 1800 mAh Li-ion |
| Measurement accuracy | 2% (±0.5 m or ±1.5 ft) with calibration cable length > 50 m |
| Body material | Plastic |
| Operating temperature/humidity range | -10ºC ~ +60ºC / 20% ~ 70% |
| Dimensions | 173 х 92 х 35 mm |
Remote identifier technical specifications
| Compatible connectors | 3,7В Li-Ion 1800мАч |
| Dimensions (W*H*D) | 183 х 58 х 35 mm |
Package includes:
| Compatible connectors | RJ11, RJ45, BNC |
| Dimensions (W*H*D) | 106 x 32 x 30 mm |

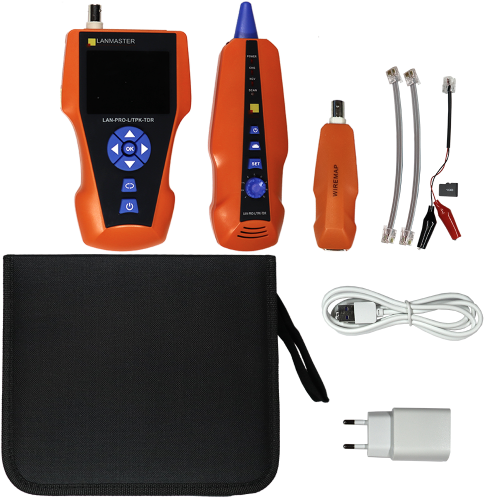

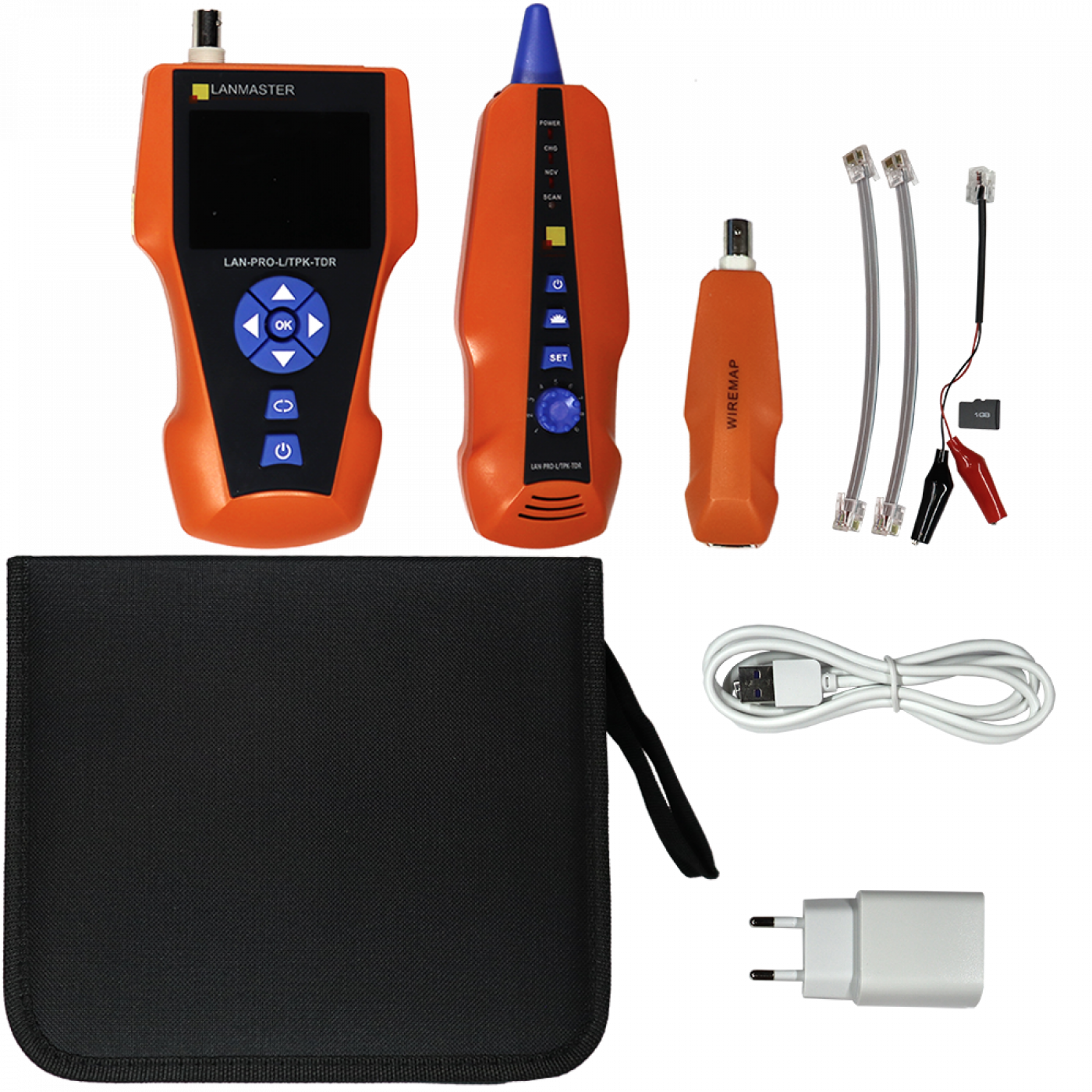

Package includes:
- Main unit (emitter) — 1 pc.,

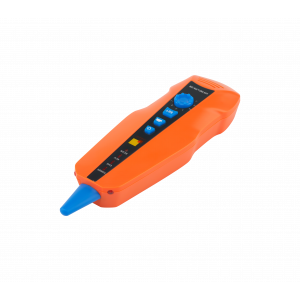

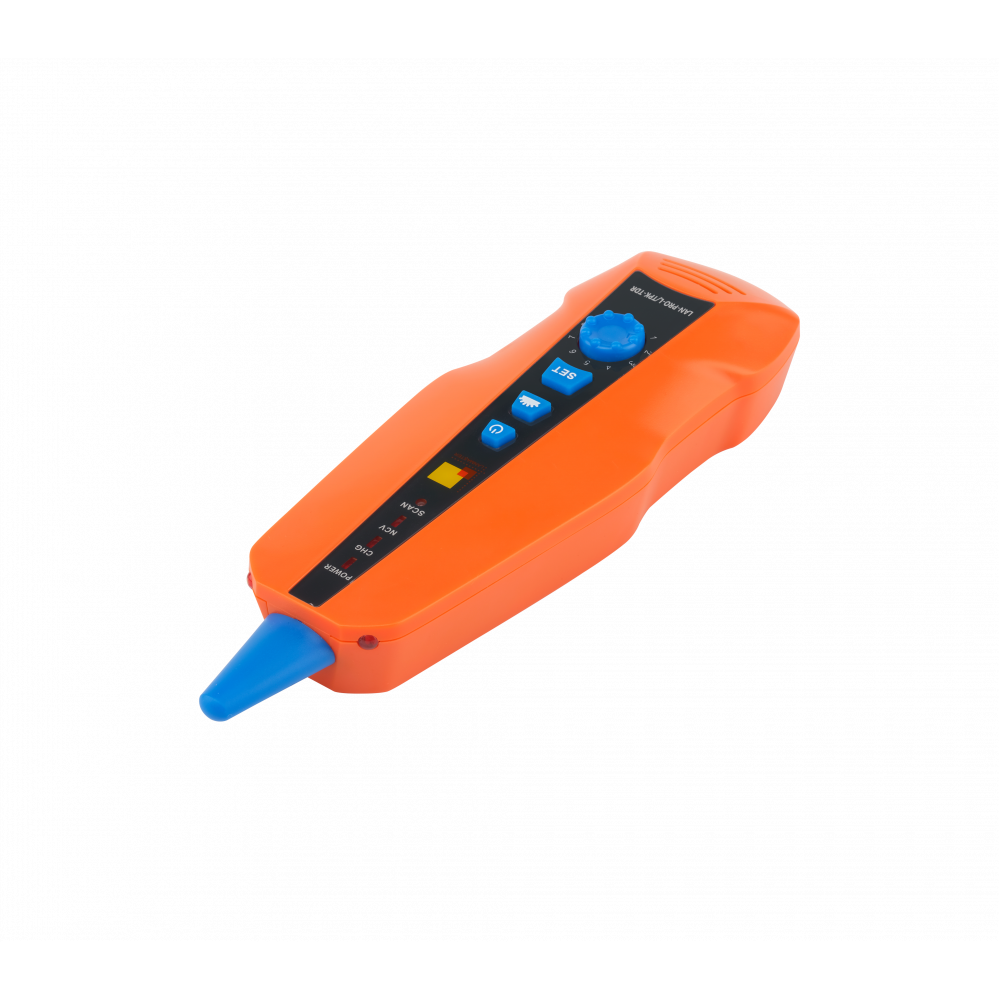

- Inductive probe — 1 pc.,

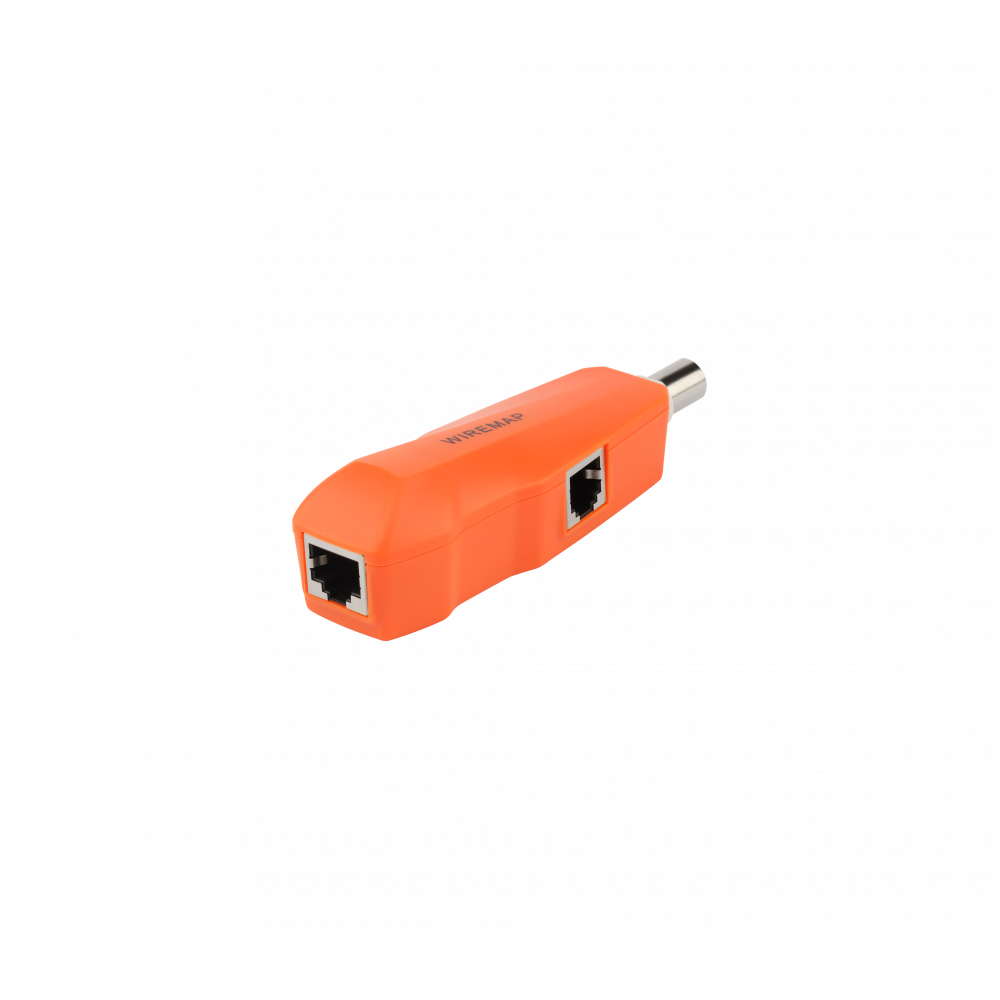

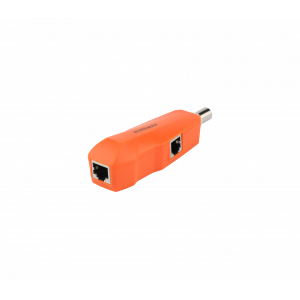

- Remote identifier — 1 pc.,
- Micro-USB cord — 1 pc.,
- Battery charger — 1 pc.,
- RJ45 - RJ45 jumper — 1 pc.,
- RJ11 - RJ11 jumper — 1 pc.,
- RJ-11 - "crocodile" clip adapter — 1 pc.,
- Flash card — 1 pc.,
- Belt pouch — 1 pc.,
- User manual — 1 pc.
