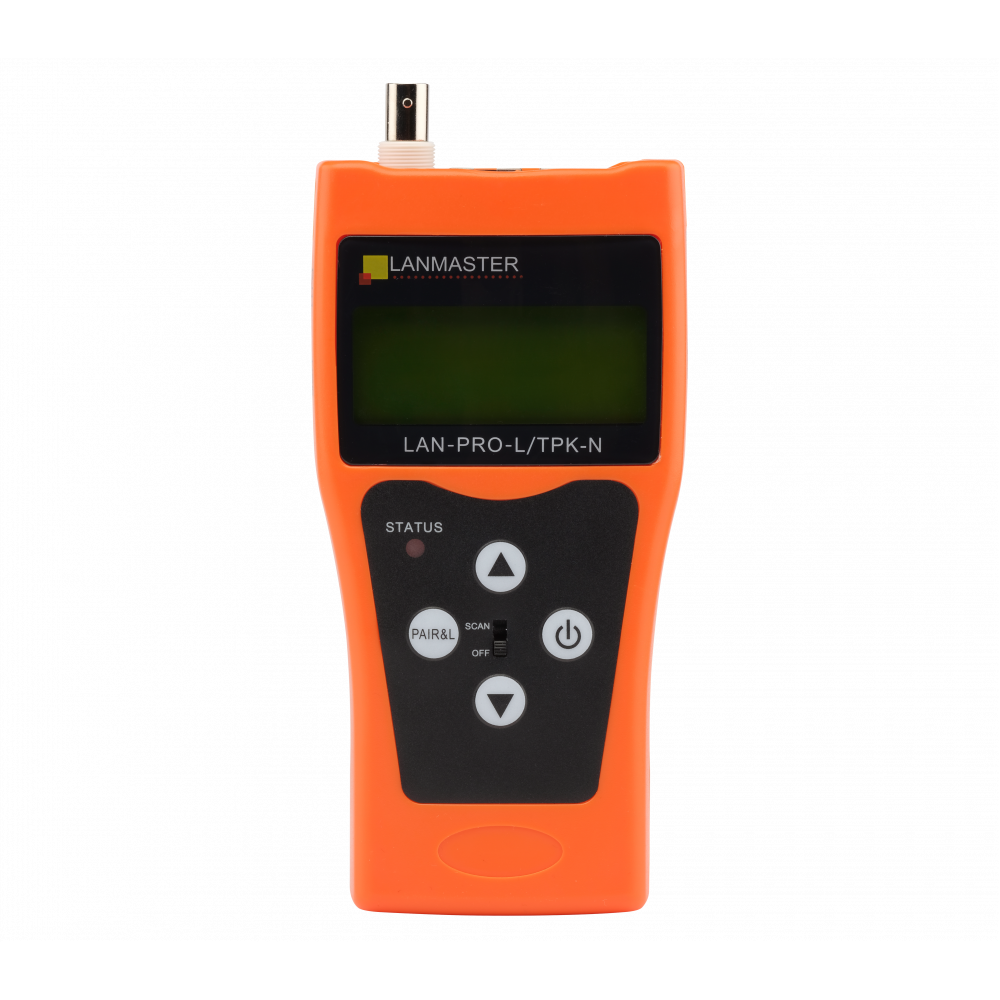

LAN-PRO-L/TPK-N-8R
The LAN-PRO-L/TPK-N-8R tester is designed to detect all types of conductors and faults in cables and connections.
The instrument is suitable for phone lines, computer networks, communication lines, other wired circuits, and other applications.
The LAN-PRO-L/TPK-N-8R model includes eight remote identifiers for easy operation and reduced network set-up time.
Device capabilities:
- Universal cable tester for checking the continuity and length of twisted pair and coaxial cables.
- Determining the length of the cable line.
- Find and identify the line, check its condition, trace, identify the closed pair.
- A detailed examination of twisted pair: closed, reversed, crossed, and split pairs, reverse connection.

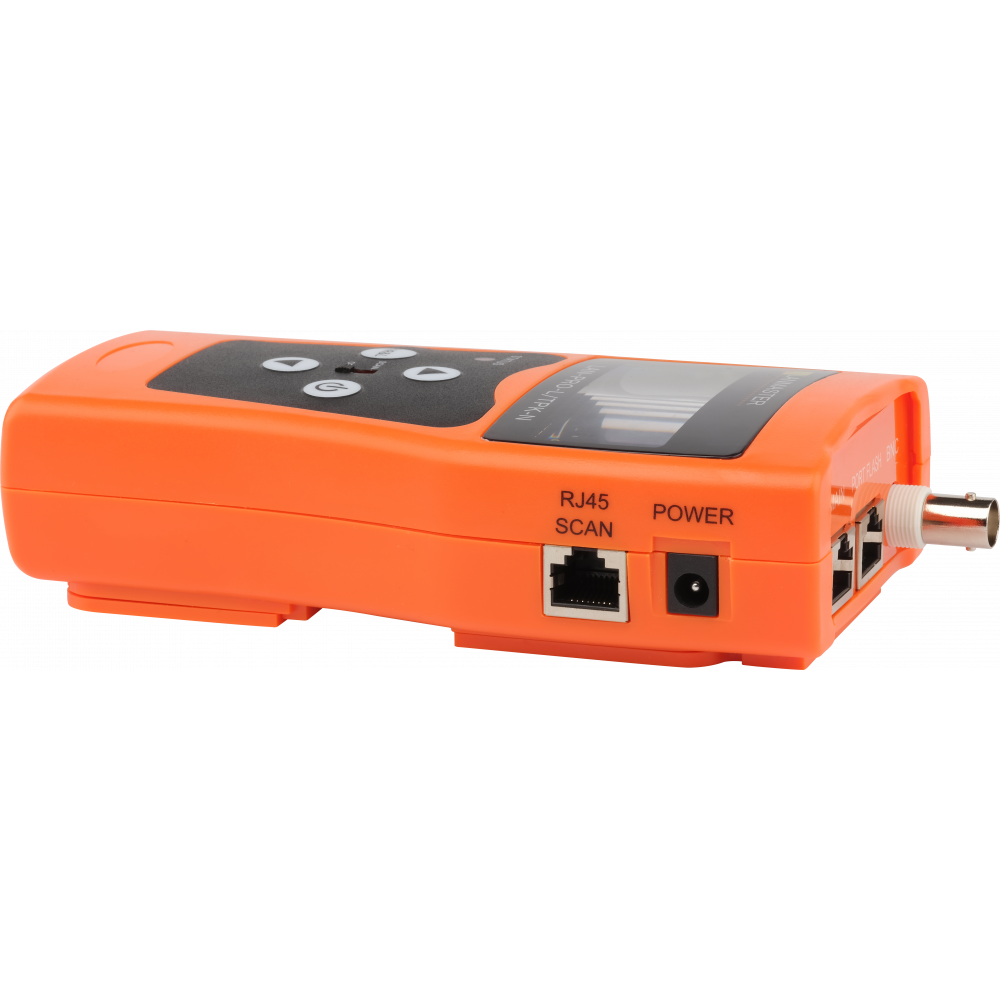

- Detection of all types of conductors using a tone generator and an inductive probe (SCAN jack).

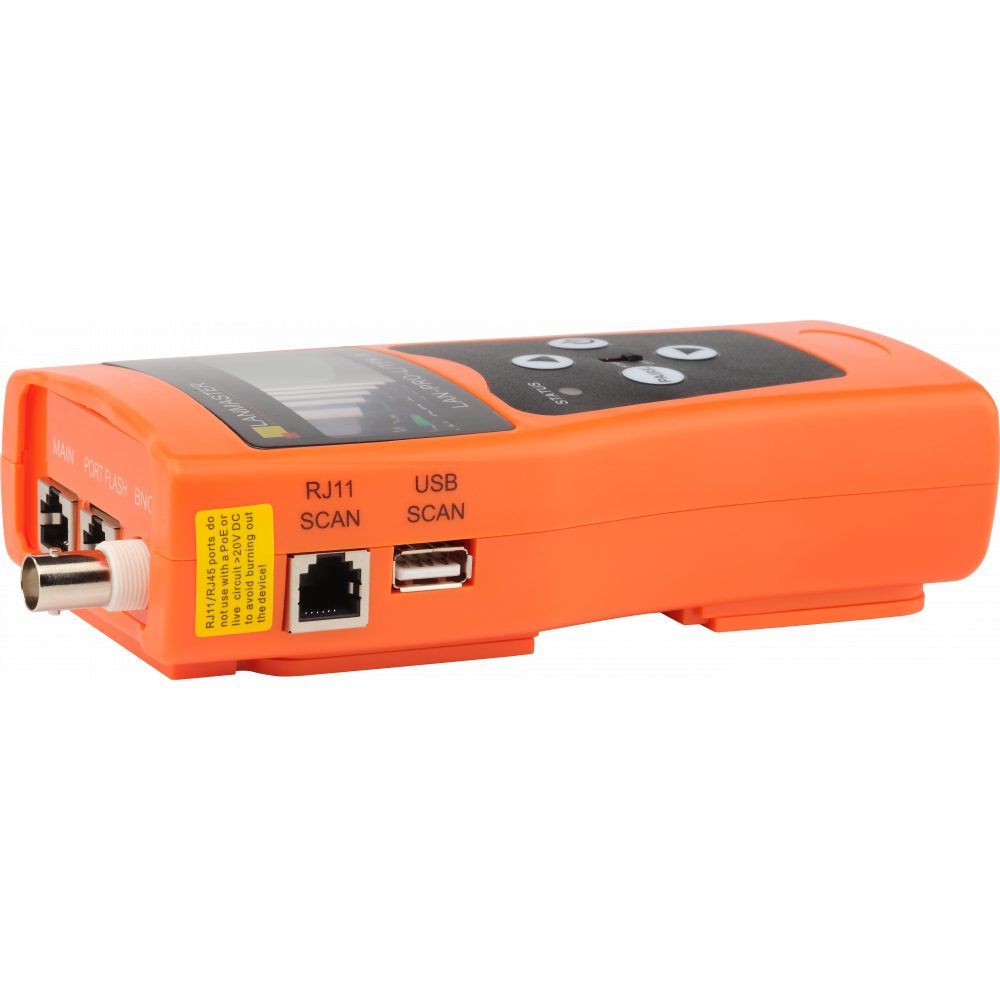

Head unit emitter technical specifications
| Display type | LCD |
| Display size | 53 х 25 mm |
| Maximum fault detection distance | 1000 m |
| Tested cables | Twisted pair: UTP, STP, cat. 5е, 6 Coaxial cables Phone twisted pair cables USB–cable |
| Tone frequency | 225 Hz |
| Battery type | 9V, 6F22 type |
| Measurement accuracy | 5% |
| Body material | Plastic |
| Operating temperature range | -10ºC ~ +40ºC |
| Dimensions | 185 х 80 х 32 mm |

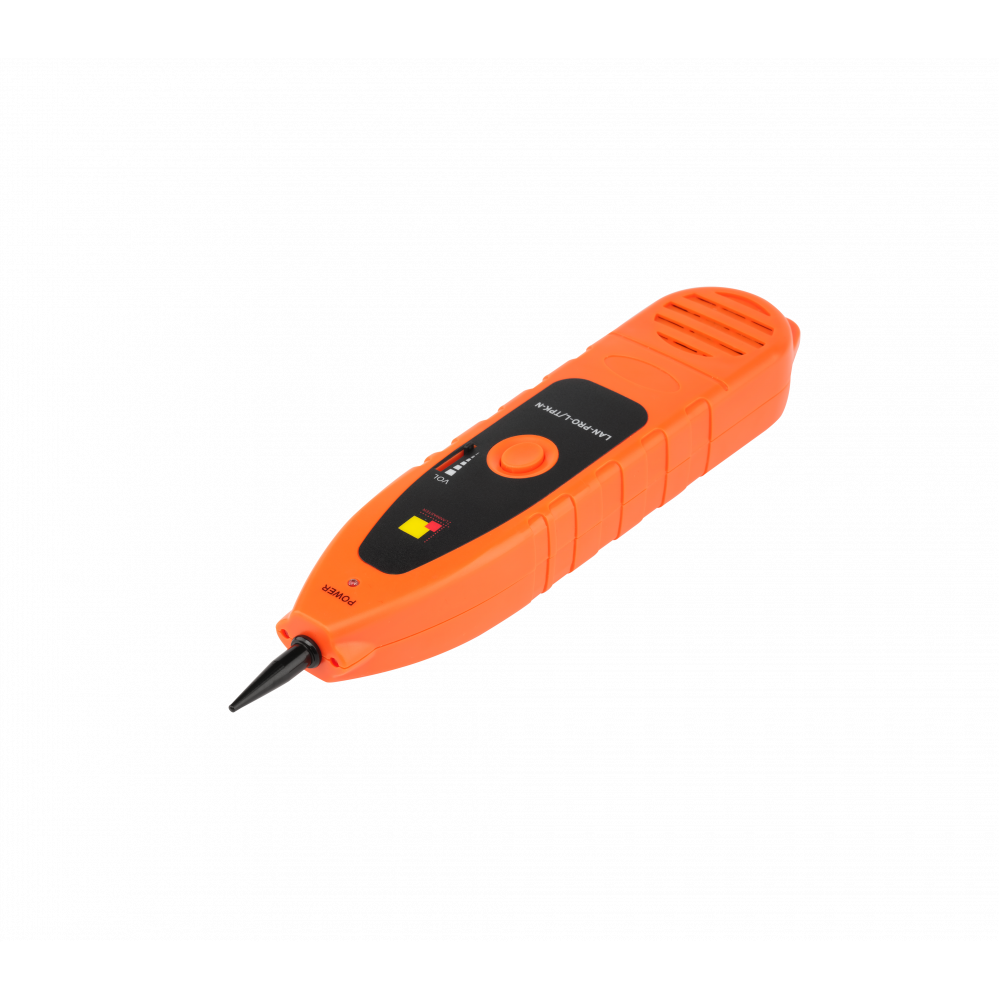

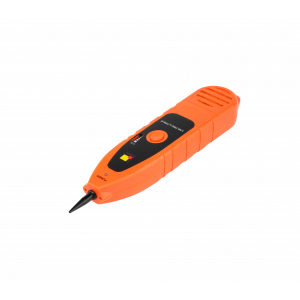

Inductive probe technical specifications
| Battery type | 9V, 6F22 type |
| Probe maximum current consumption | Less than 70 mA |
| Dimensions | 218 х 46 х 29 mm |

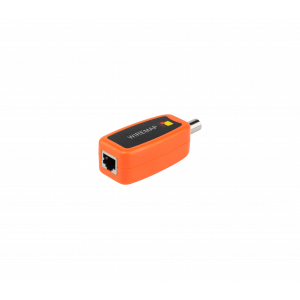

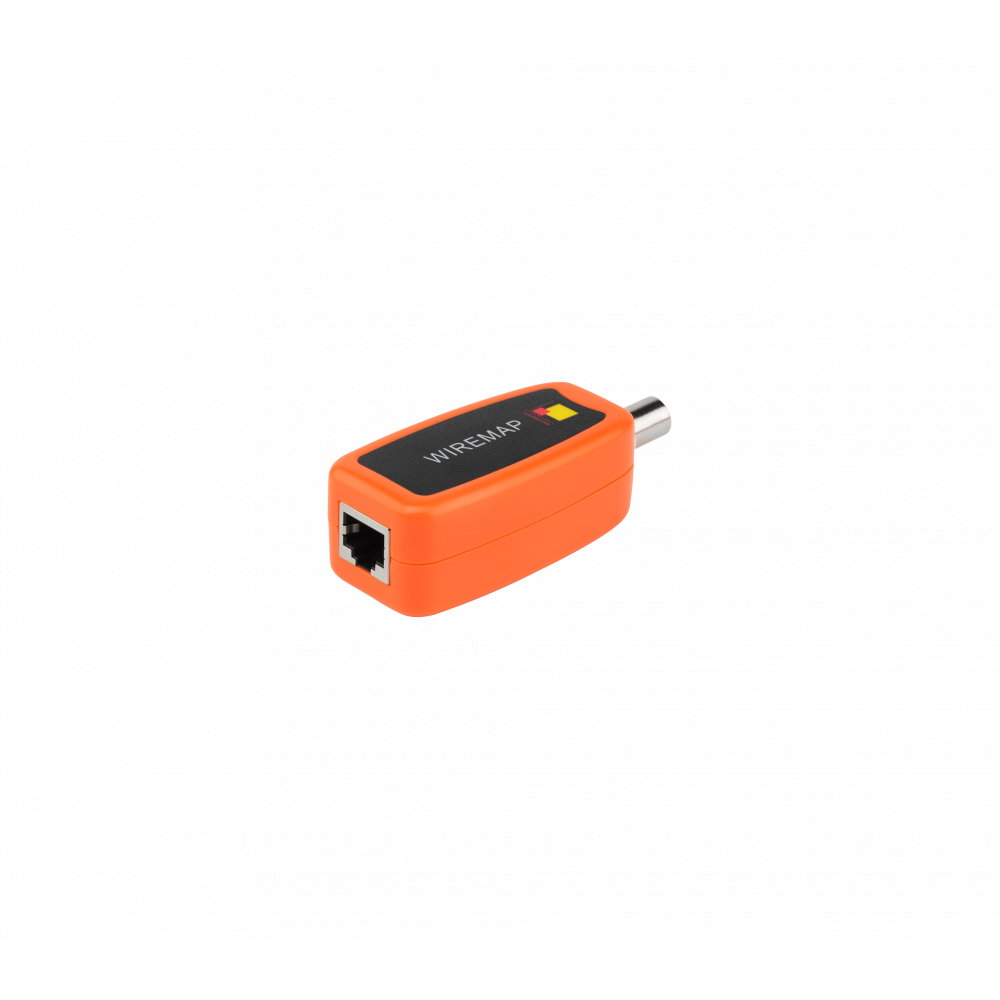

Remote identifier technical specifications
| Compatible connectors | RJ45, BNC |
| Maximum distance | 300 m |
| Dimensions | 107 х 30 х 24 mm |

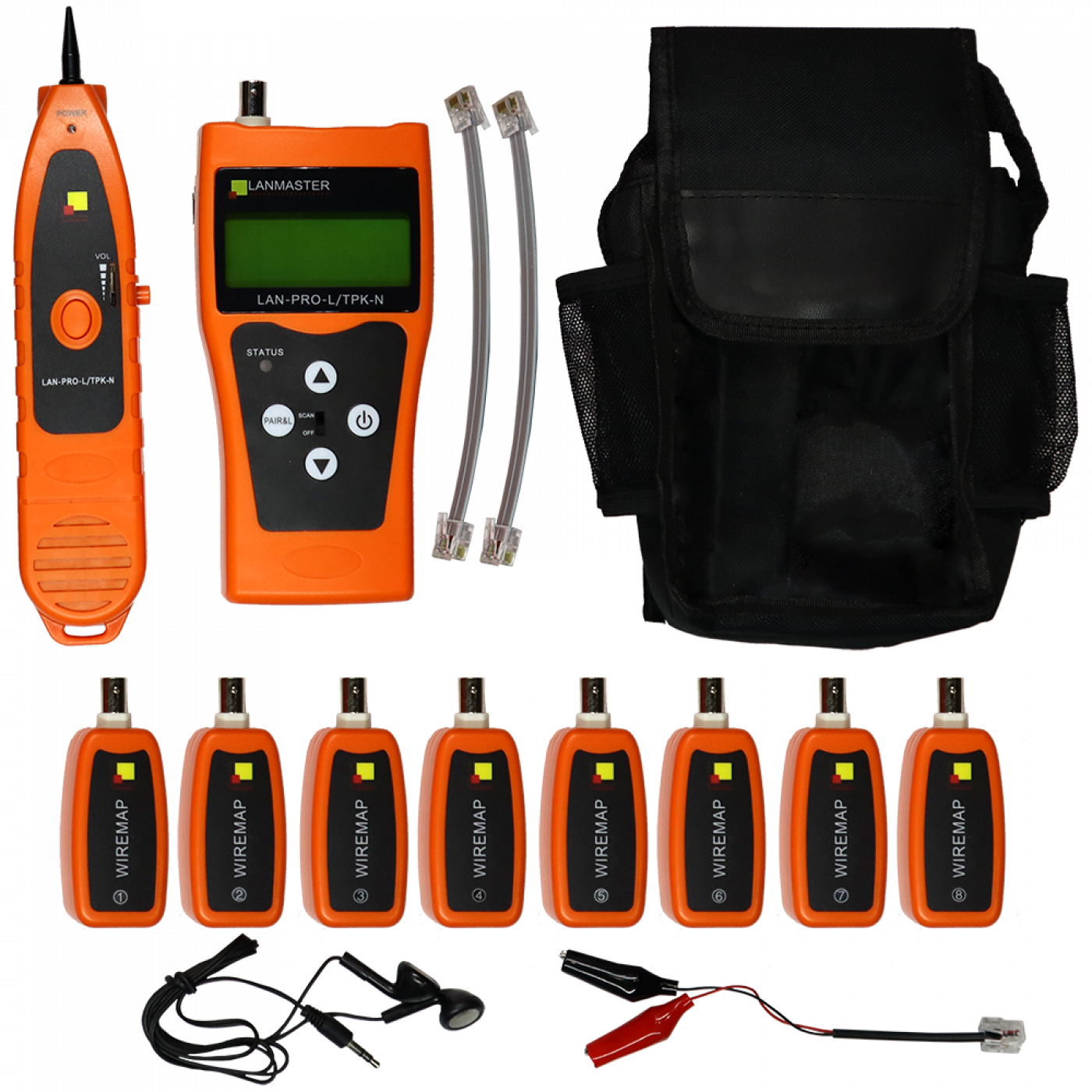

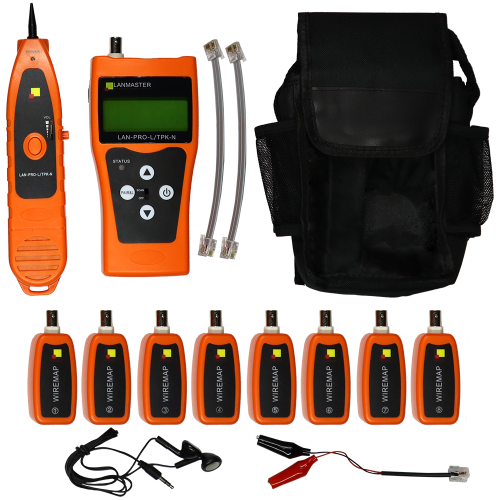

Package includes:
- Main unit (emitter) — 1 pc.,
- Inductive probe — 1 pc.,
- Remote identifier — 8 pcs.,
- 9V 6F22 battery — 2 pcs.,
- RJ45 - RJ45 jumper — 1 pc.,
- RJ11 - RJ11 jumper — 1 pc.,
- RJ-11 - "crocodile" clip adapter — 1 pc.,
- Earphones — 1 pc.,
- Belt pouch — 1 pc.,
- User manual — 1 pc.
