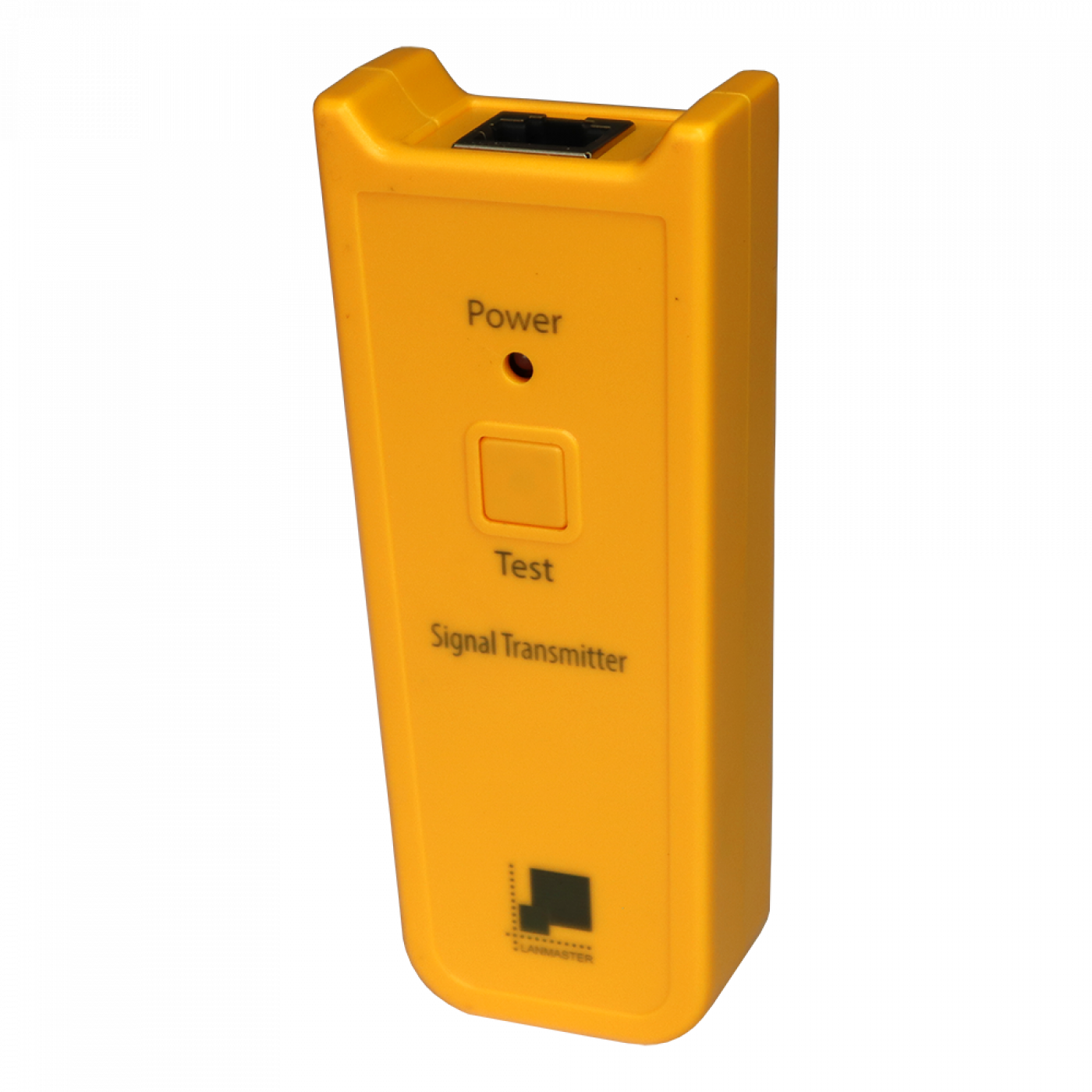

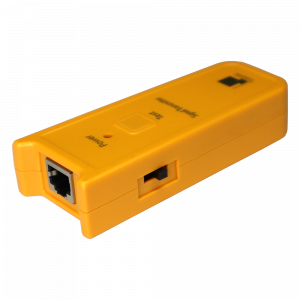

LAN-PPi-CHKTOOL

With this tester you can determine if there is an active equipment connection to the certain ports of patch panels.


The tester is designed to check the connection status of LED patch panels:
  • LAN-PPi24U5E

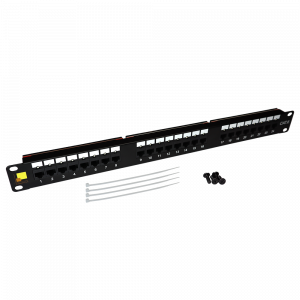

  • LAN-PPi24U6

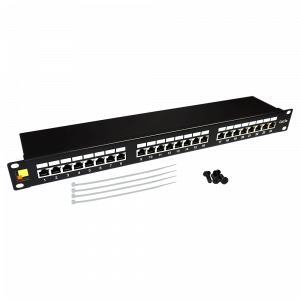

  • LAN-PPi24S5E
  • LAN-PPi24S6

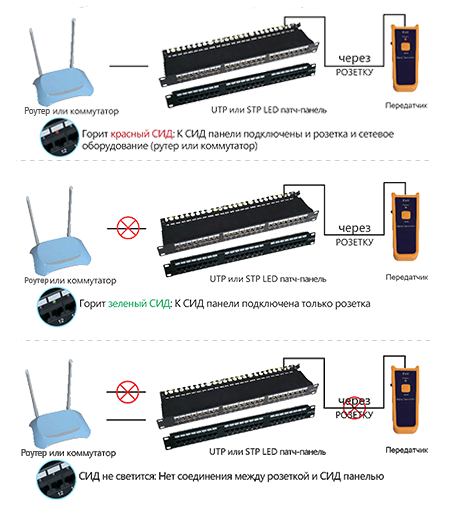

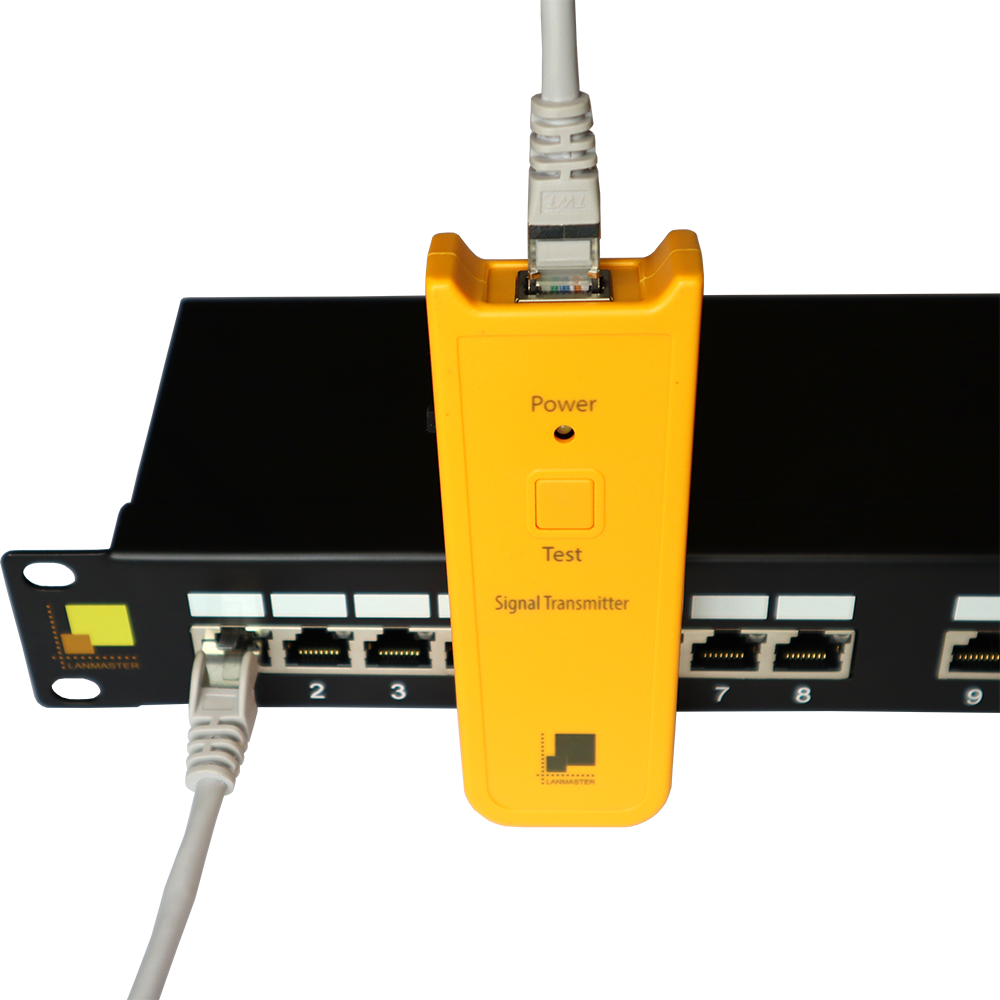

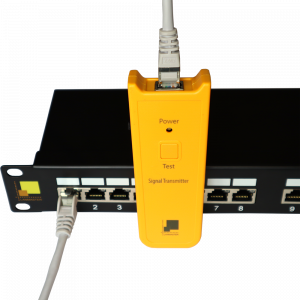

The test tool should be connected to the port of the subscriber socket using a patch cord to monitor the connection. Then check the LED status on the port of the panel, which corresponds to the port of the socket under the test.

  •  Green LED: The port is not connected to the network equipment.
  •  Red LED: The port is connected to the network equipment.

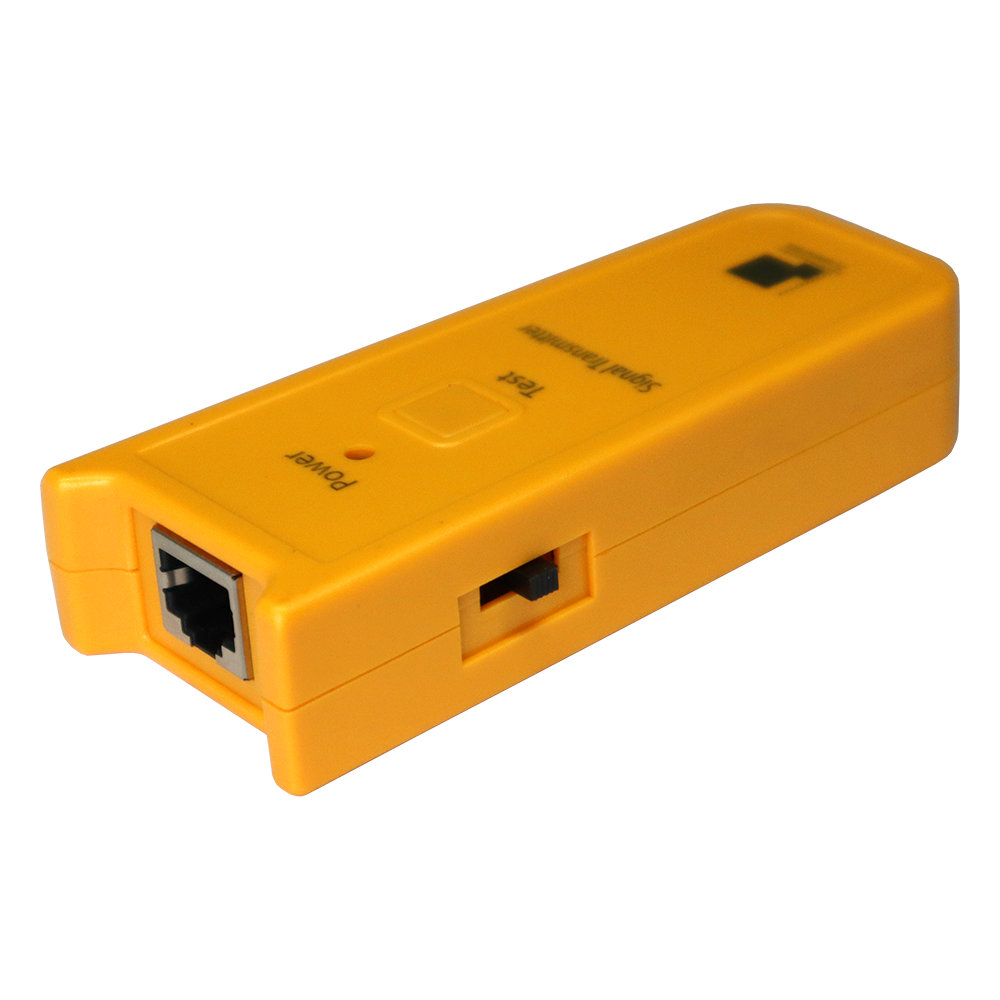

The test tool has three operating modes of the signal transmitting: constant, flashing, or triggered directly by pressing the button.

Model range (1)

  • Code Code / Name Name Количество
  • LAN-PPi-CHKTOOL
    Test tool for ports on patch panels with indicators
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
