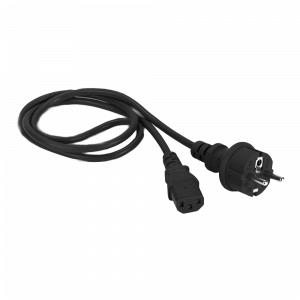

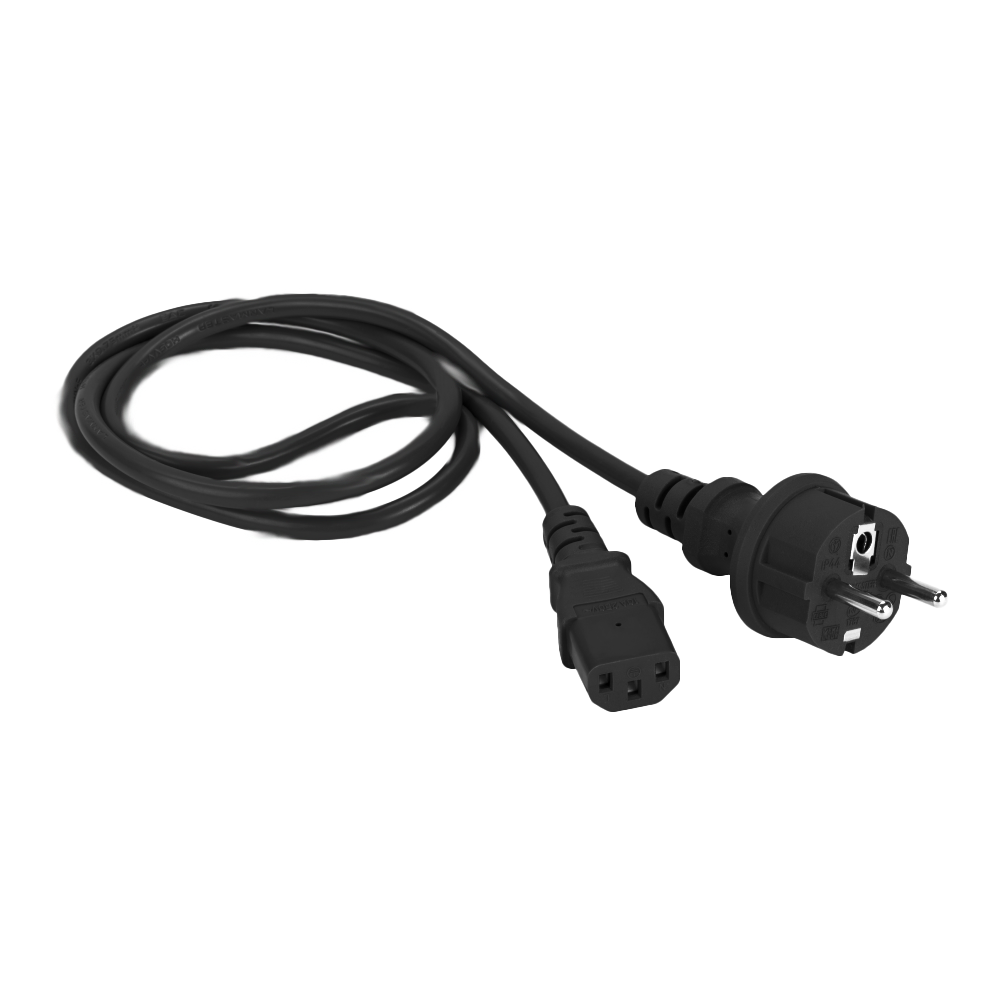

Power cord, C13-Schuko, straight, 3х0.75, 220V, 10A
Power cord, C13-Schuko, straight, 3х0.75, 220V, 10A
LAN-PP13/SH-x.x-yy
The power cord is intended to connect electrical equipment with IEC 60320 C14 inlet to AC mains up to 250V.

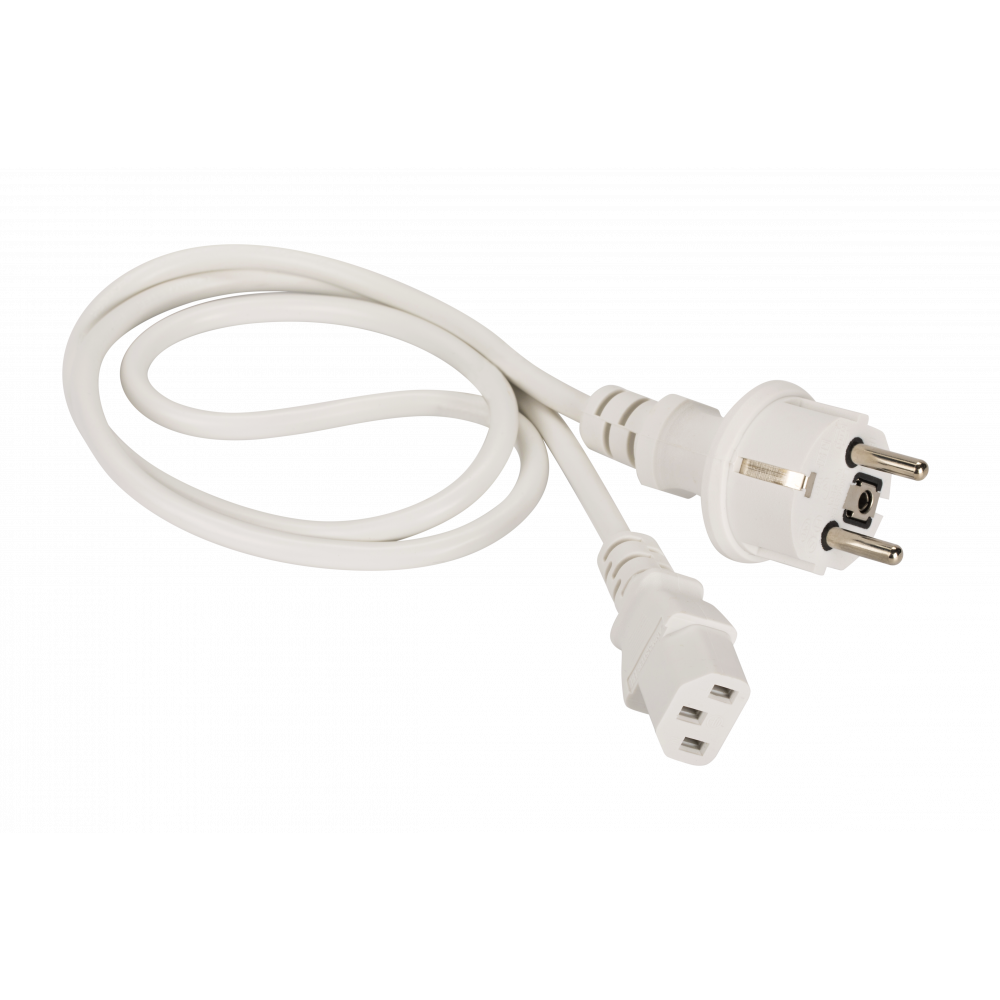

The cord is made of stranded PVC insulated 3 x 0.75 wire. Side A is DIN49441 connector molded from flame retardant PVC. The connector on the opposite side (side B) is IEC 60320 C13 connector molded from flame retardant PVC.

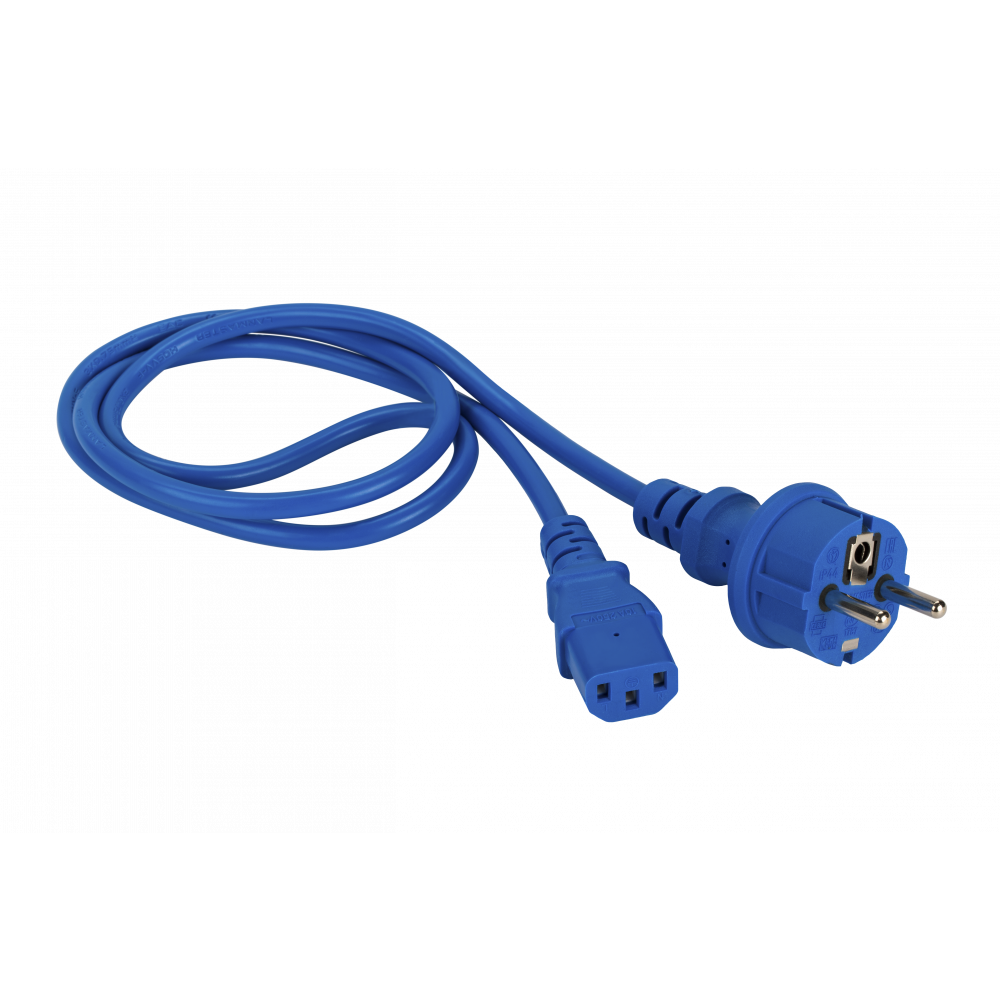

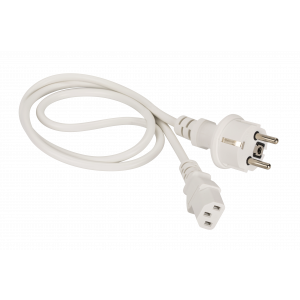

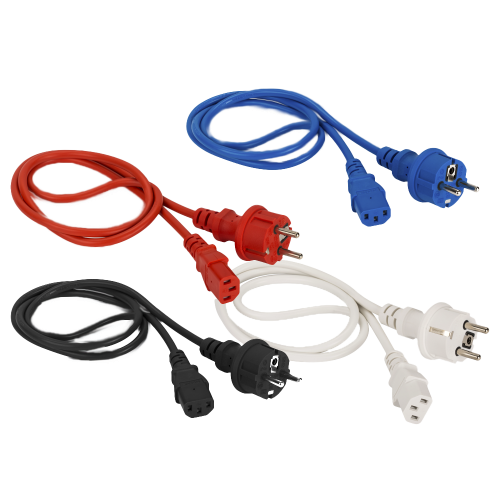

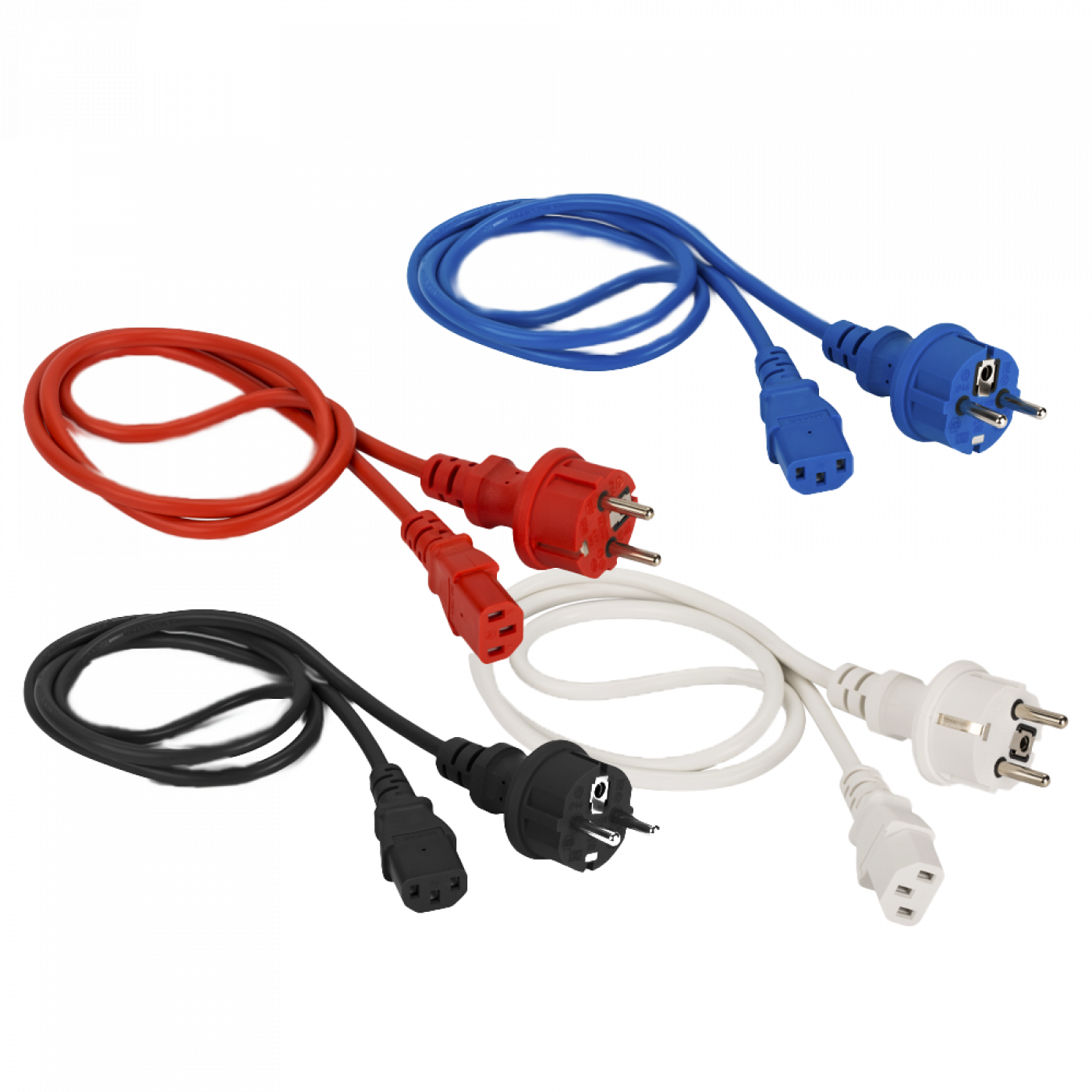

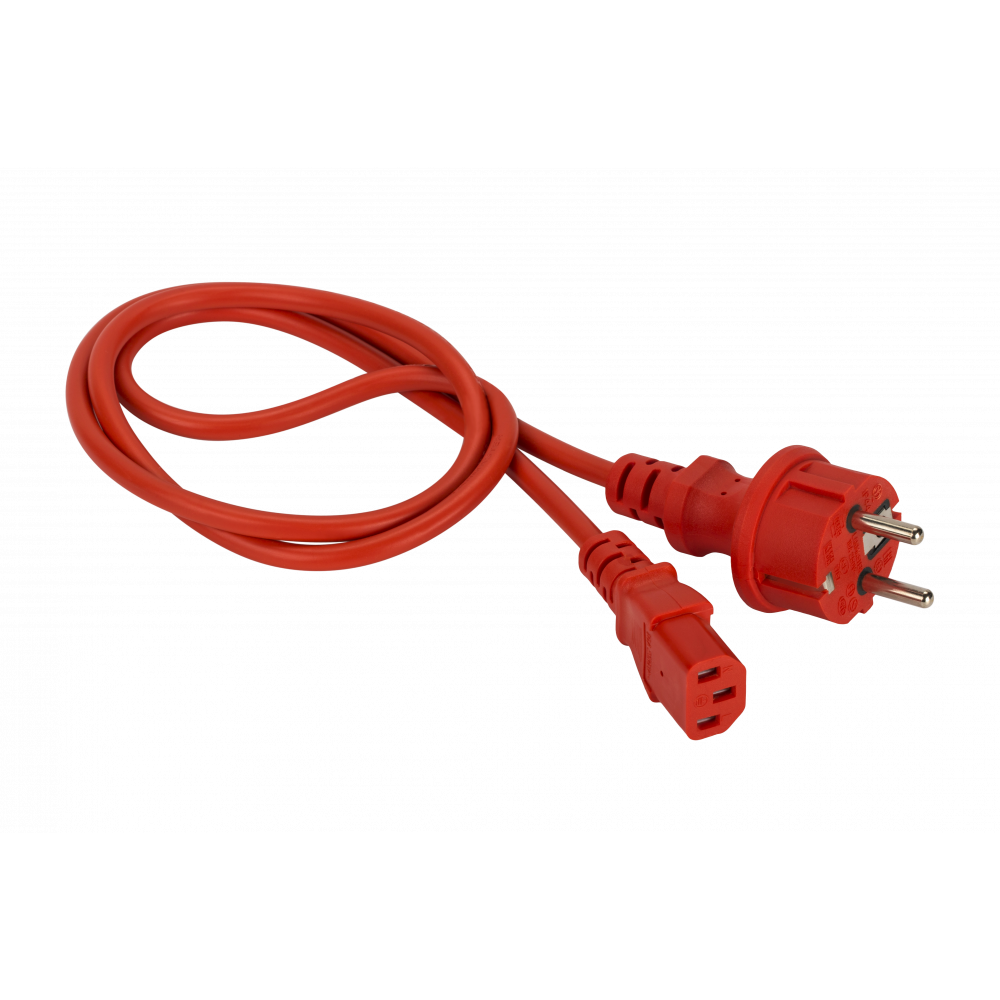

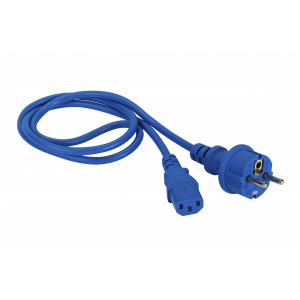

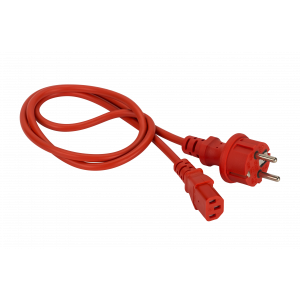

In addition to the regular black cords, there are also white, blue, and red power cords. By combining power cords of different colors in the connections of active equipment within the same rack you can save time on the identification of equipment and connections, thereby marking groups of hardware depending on the purpose in the infrastructure.
| Cable type | 3х0.75 PVC |
| Jacket material | PVC (polyvinyl chloride) |
| Jacket color | black, white, blue, red |
| Cord length | 0.5 m; 1.0 m; 1.5 m; 1.8 m; 2.0 m; 3.0 m; 5.0 m; 7.0 m; 10 m |
| Wire cross-section | 0.75 mm2 |
| Wire type | Stranded |
| Maximum current | 10 А |
| Maximum voltage | ~250 V |
| Connector А | DIN49441 |
| Connector В | IEC 60320 C13 |
