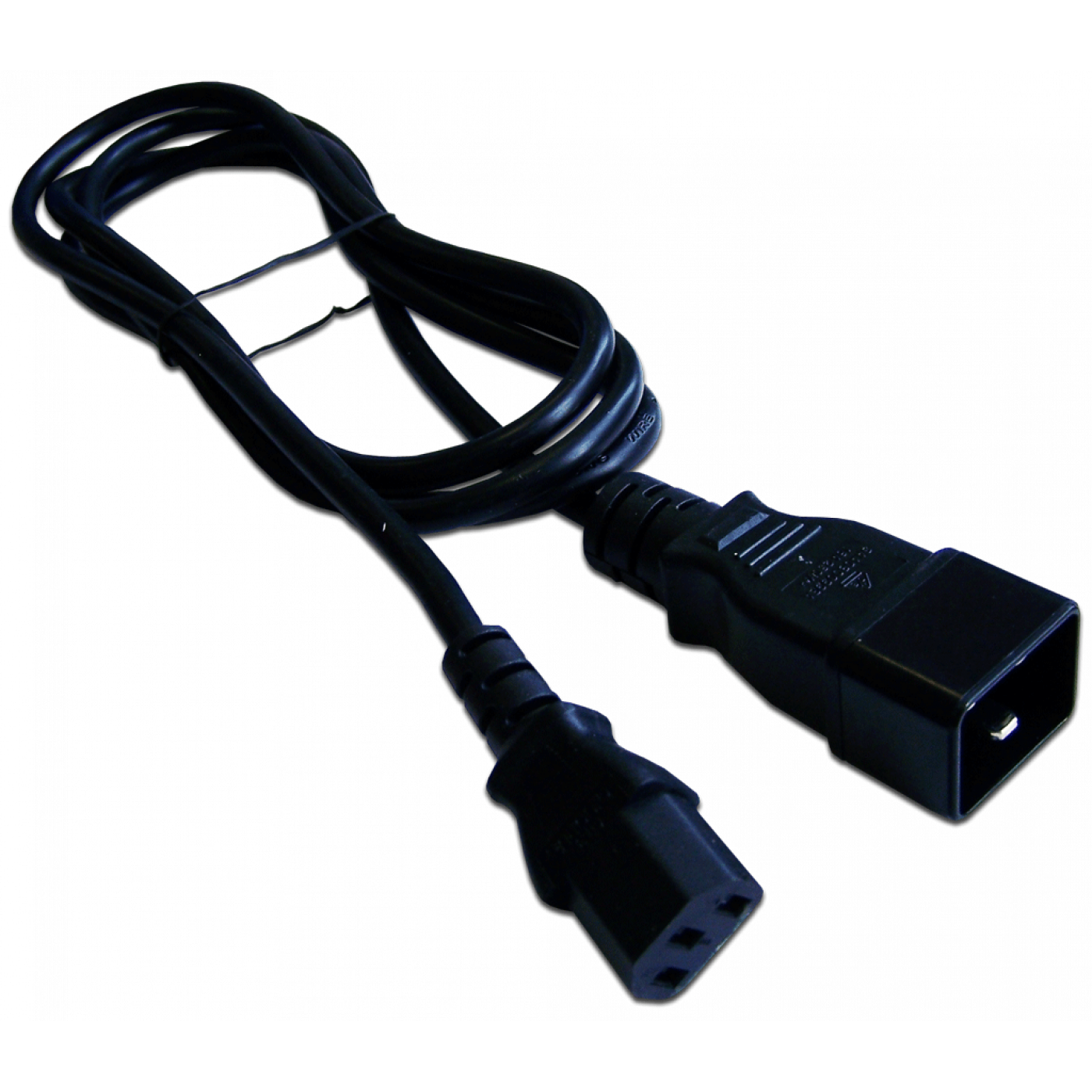

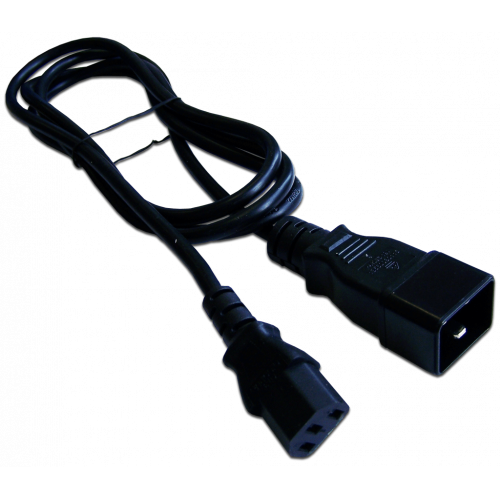

Power cord, С13-C20, 3х0.75, 220V, 10A
Power cord, С13-C20, 3х0.75, 220V, 10A
LAN-PP13/20-x.x-yy
The power cord is intended to connect electrical equipment with IEC 60320 C20 inlet to AC mains up to 250V.

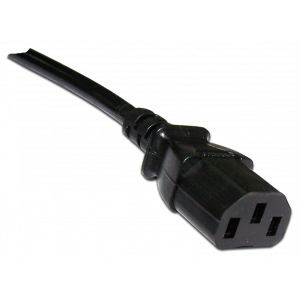

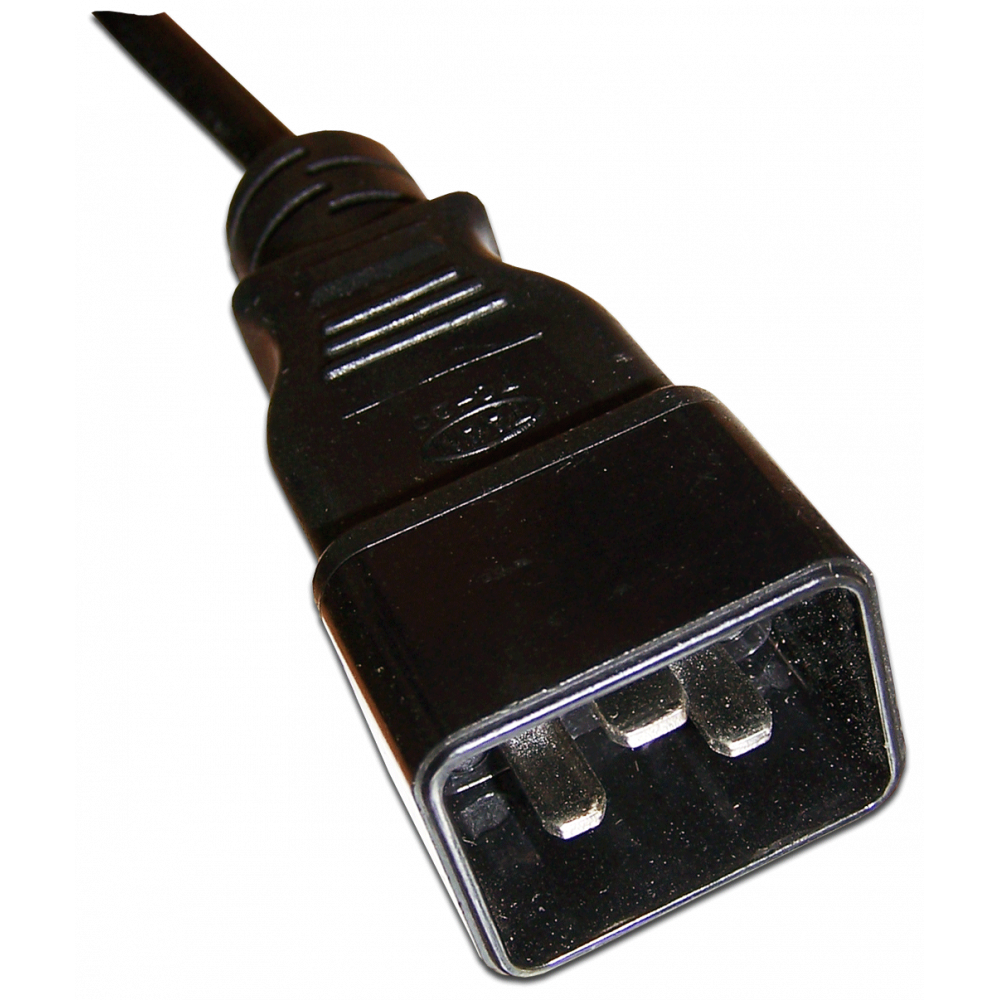

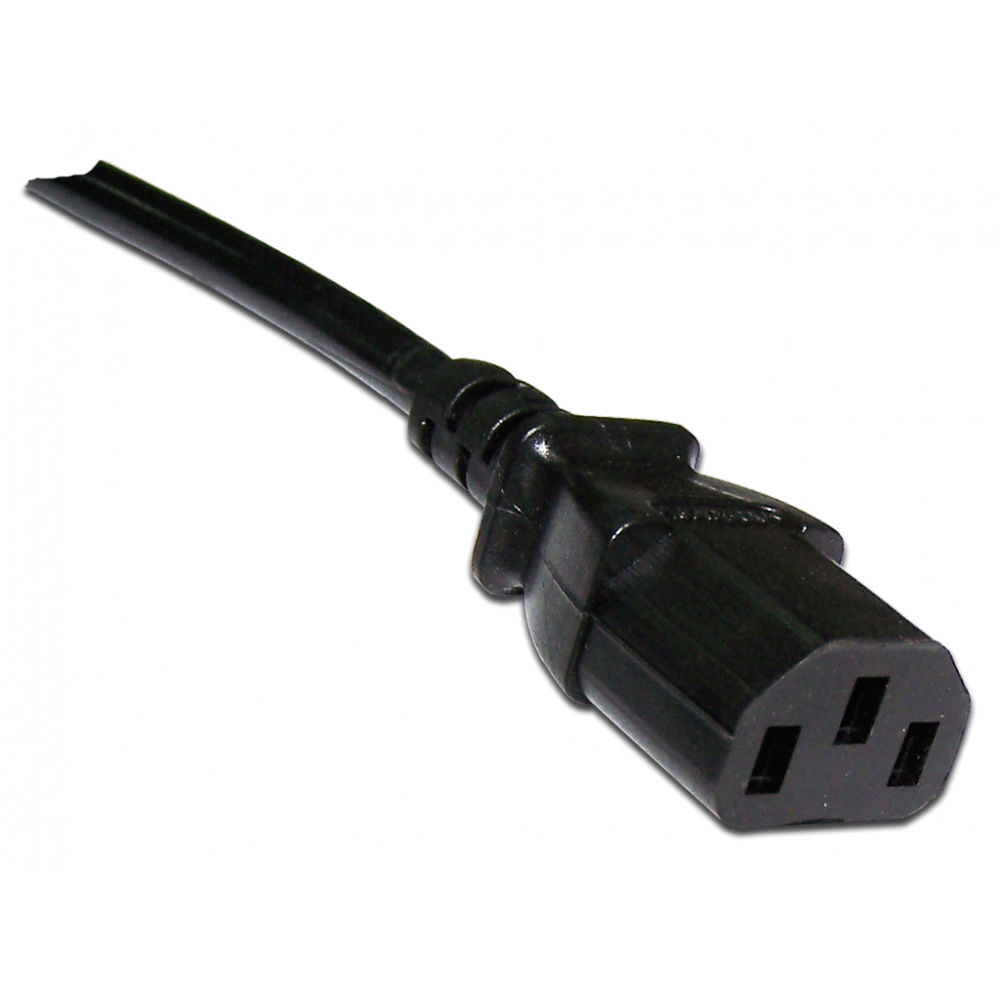

The cord is made of stranded PVC insulated 3 x 0.75 wire. Connector A is IEC 60320 C13 molded from flame retardant PVC. The inlet on the opposite side (side B) is IEC 60320 C20 molded from flame retardant PVC.
| Cable type | 3х0.75 PVC |
| Jacket material | PVC (polyvinyl chloride) |
| Jacket color | Black, white |
| Cord length | 0.5 m, 1 m, 2 m, 3 m, 5 m |
| Wire cross-section | 0,75 mm2 |
| Wire type | Stranded |
| Maximum current | 10 А |
| Maximum voltage | ~250 V |
| Connector А | IEC 60320 C13 |
| Connector В | IEC 60320 C20 |
