End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with pipe hole, yellow

End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with pipe hole, yellow
End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with pipe hole, yellow
End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with pipe hole, yellow
End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with pipe hole, yellow
LAN-OT120-ND-Txx

Purpose:

  • The end cap with a hole is designed for flexible cable routing from the 120 mm cable tray. It can also be installed on the LAN-OT120-OB cable drop.

Features:

  • Varieties are available for three different diameters of corrugated pipe: 42mm, 56mm, and 80mm.

Package includes:

  • end cap – 1 pc.
  • plastic head cap bolt - 4 pcs.
  • plastic nut - 4 pcs.

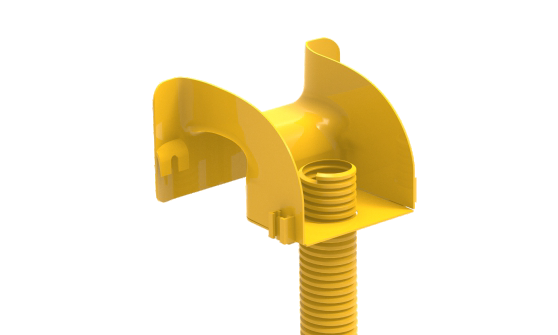

The end cap is mounted on the LAN-OT120-OB cable drop with a 56mm pipe hole.


To accomplish this connection, you will need:

  • LAN-OT120-OB cable drop – 1 pc.
  • LAN-OT120-ND-T56 end cap - 1 pc.
  • LAN-OT-TUBE-56 corrugated pipe – 1 pc.



Model range (3)

  • Code Code / Name Name Количество

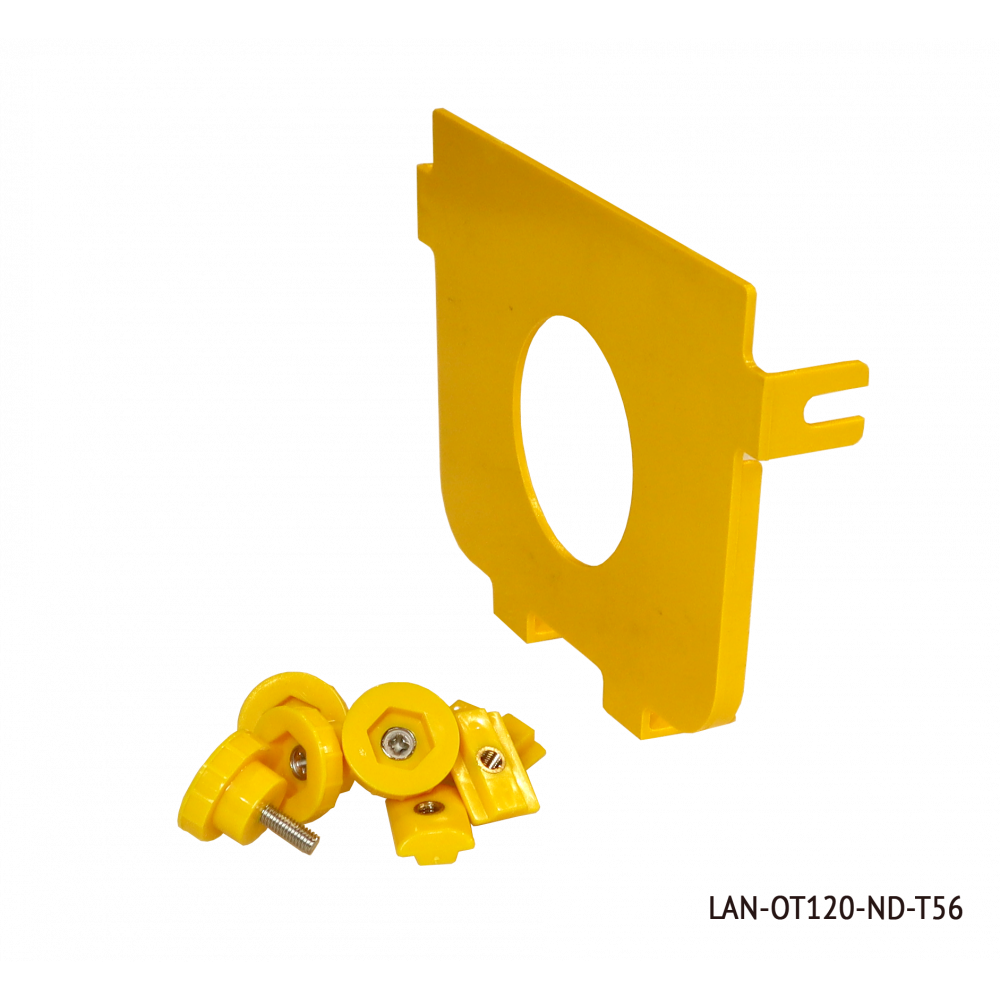

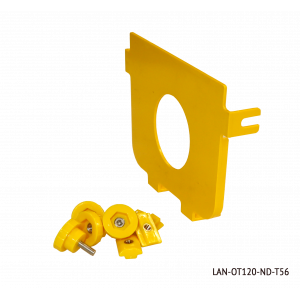

  • LAN-OT120-ND-T56
    End cap for 120 mm fiber tray and cable driop LAN-OT120-OB, with 56 mm pipe hole, yellow

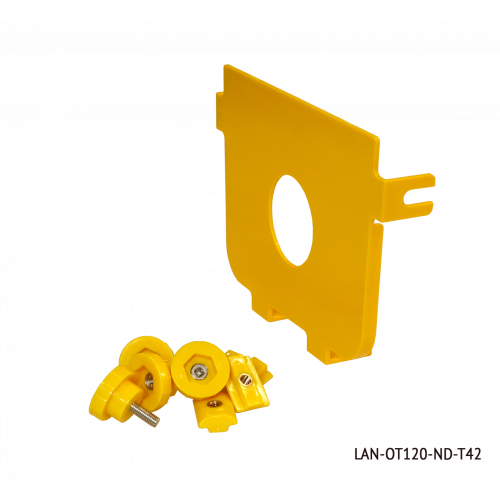

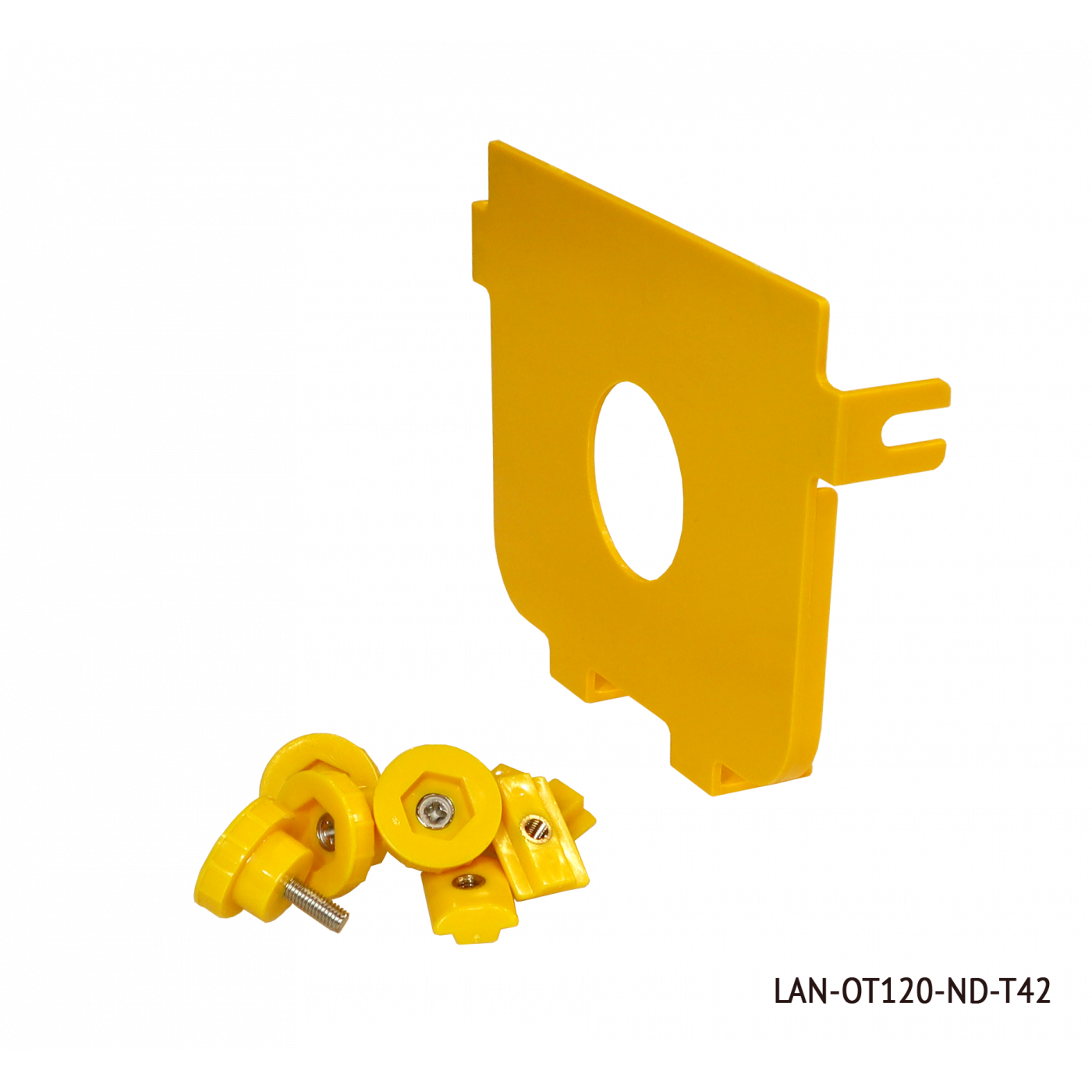

  • LAN-OT120-ND-T42
    End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with 42 mm pipe hole, yellow

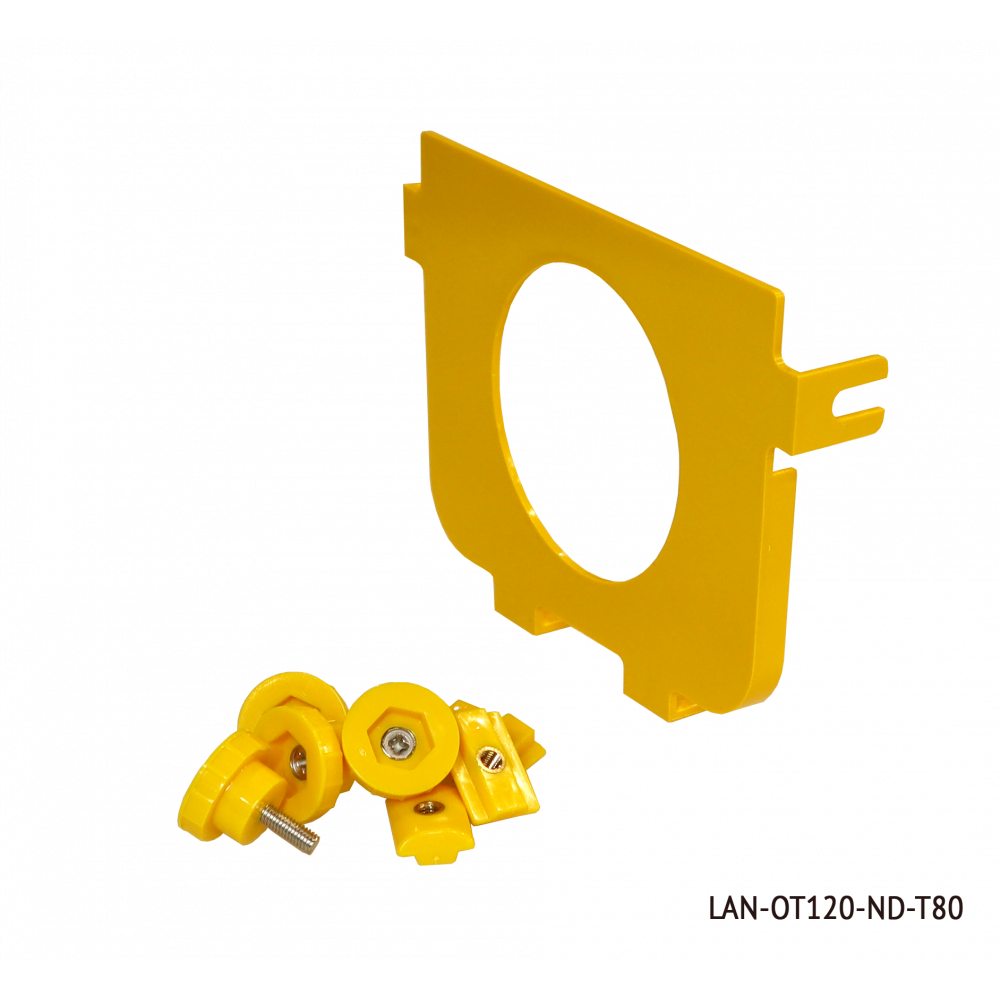

  • LAN-OT120-ND-T80
    End cap for 120 mm fiber tray and cable drop LAN-OT120-OB, with 80 mm pipe hole, yellow
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
