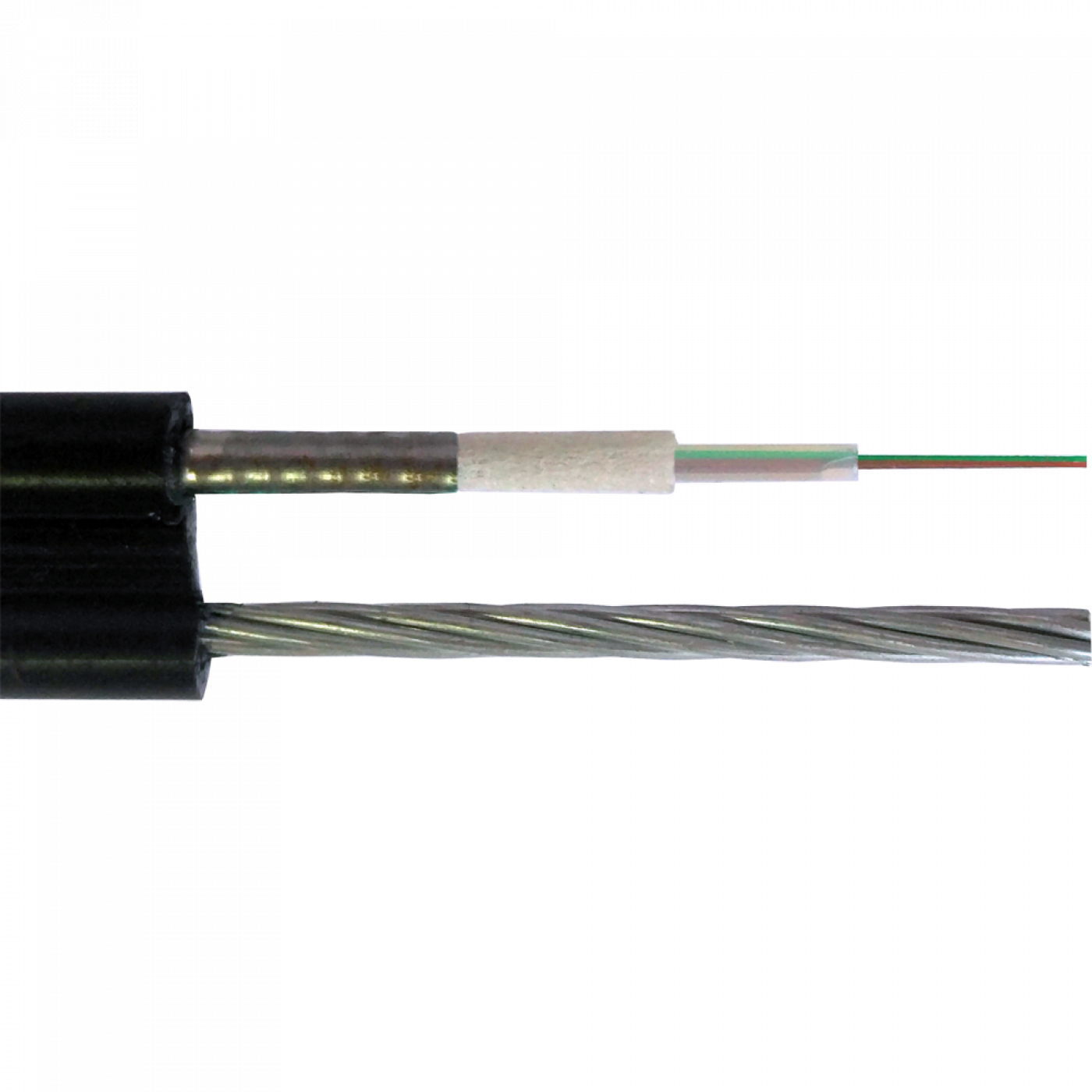

Fiber optics cable, armored with steel tape, self supporting, with messenger, outdoor, PE
Application:
Used as a distribution cable for suspension on the utility poles, electricity pylons and between buildings.
Design:

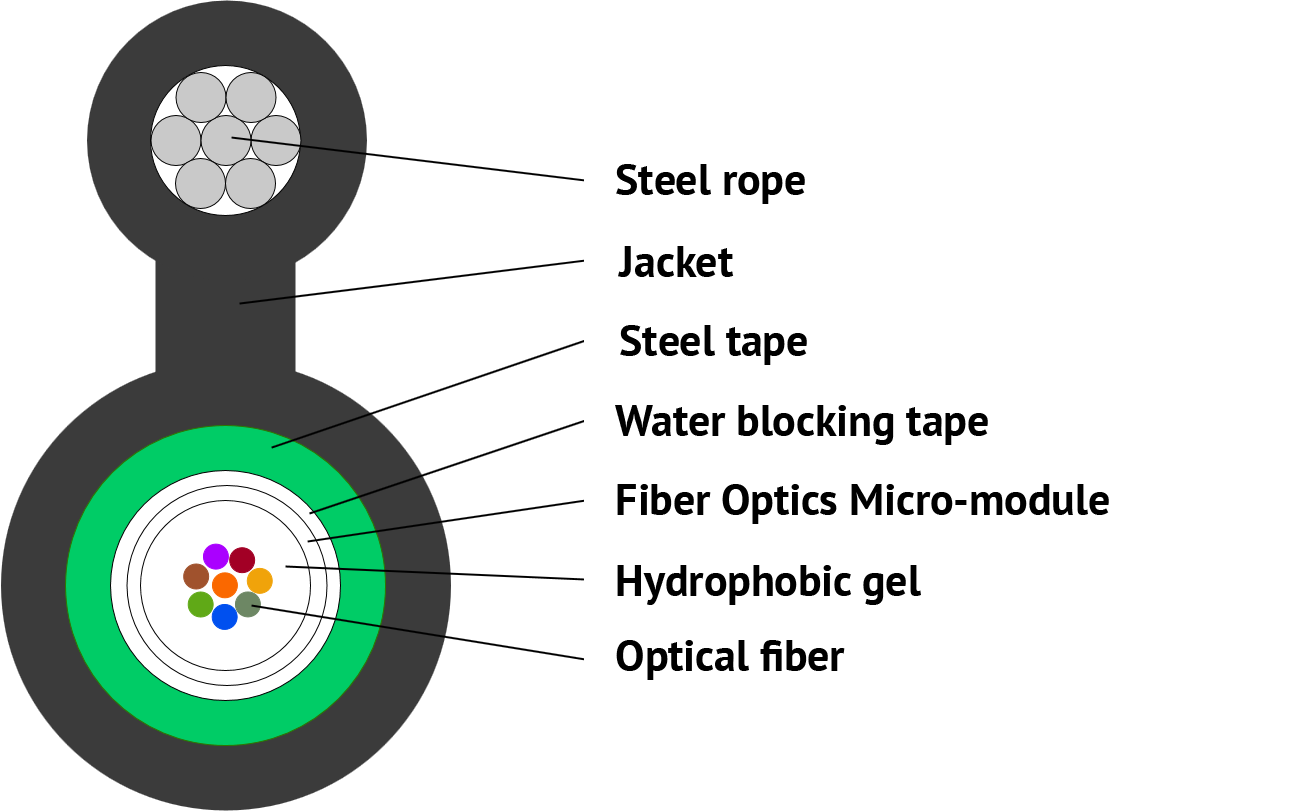

-eng.png)
The cable contains a central optical module with loosely laid fibers. The free space in the optical module is filled with a hydrophobic filler. Fiber optics module is covered with water blocking tape and steel tape. Steel rope is used as the messenger. The fiber optics module and the messenger member are covered with a jacket from middle density polyethylene.
The maximum possible count of optical fibers in the cable is 24.
Color identification of tight buffer optical fibers
| № | Fibers 1-12 | № | Fibers 13-24 |
| 1 | Blue | 13 | Blue + mark |
| 2 | Orange | 14 | Orange + mark |
| 3 | Green | 15 | Green + mark |
| 4 | Brown | 16 | Brown + mark |
| 5 | Grey | 17 | Grey + mark |
| 6 | White | 18 | White + mark |
| 7 | Red | 19 | Red + mark |
| 8 | Black | 20 | Black + mark |
| 9 | Yellow | 21 | Yellow + mark |
| 10 | Violet | 22 | Violet + mark |
| 11 | Pink | 23 | Pink + mark |
| 12 | Aqua | 24 | Aqua + mark |
Weight and Dimensions
| Fiber count | 2~8 | 10~12 | 14~24 | |
| Messenger | Material | Steel rope | ||
| Diameter (±0.05）mm | 2.7 mm (0.9х7) | |||
| Fiber Optics Module | Material | Polybutylene terephthalate / PBT | ||
| Diameter (±0.06) mm | 1.8 | 2.0 | 2.8 | |
| Thickness（±0.03) mm | 0.30 | 0.32 | 0.4 | |
| Maximum fiber count per module | 2~8 | 10~12 | 14~24 | |
| Armor | Material | Steel tape | ||
| Thickness（±0.03) mm | 0.25 | |||
| Jacket | Material | Middle Density Polyethylene MDPE | ||
| Thickness（±0.2) mm | 1.3-1.5 | |||
| Cable diameter (±0.5) mm | 6.3 х 14.6 | 6.5 х 14.8 | 7.1 х 15.4 | |
| Cable weight（±10） kg/km | 88 | 96 | 103 | |
Operating conditions
| Minimum Bend Radius | Without pulling tension | 10 cable diameters |
| With maximum pulling tension | 20 cable diameters | |
| Temperature range（℃） | Installation | -20~+60 |
| Storage | -40~+70 | |
| Operating | -40~+70 |
Physical specifications
| № | Specification | Value | |
| 1 | Maximum pulling tension | Short term impact | 2700 N |
| Long term impact | 800 N | ||
| 2 | Crush resistance | Short term impact | 1000 (N/100mm) |
| Long term impact | 300 (N/100m) | ||
| Product code | Description |
| LAN-OFC-GYXTC8Snnyy1 | FO cable, armored with steel tape, with messenger, GYXTC8S, PE, outdoor, nn х OS2 Ultra/OS2/OM1/OM2/OM3/OM4 |
nn – fiber count
yy – fiber type (SU, S2, S5, S7, M1, M2, M3, M4)
k =1 maximum pulling tension: 0.8 kN
Applicable optical fibers:
| SU | Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation) |
| S2 | Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation) |
| S5 | Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation) |
| S7 | Single-mode with low bending loss (ITU-T G.657 recommendation) |
| M1 | Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation) |
| M2 | Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements) |
| M3 | Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements) |
| M4 | Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation) |
