Indoor/Outdoor Distribution Cable

LAN-OFC-DUxx-yy-zz

Description Compatible Products

Application:

Used as a distribution cable for cabling inside buildings, in cable trays, in cable ducts, pipes and tunnels, as well as for cabling on external facades of buildings.

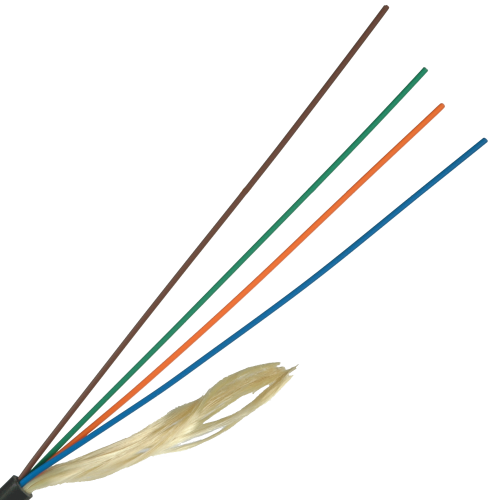

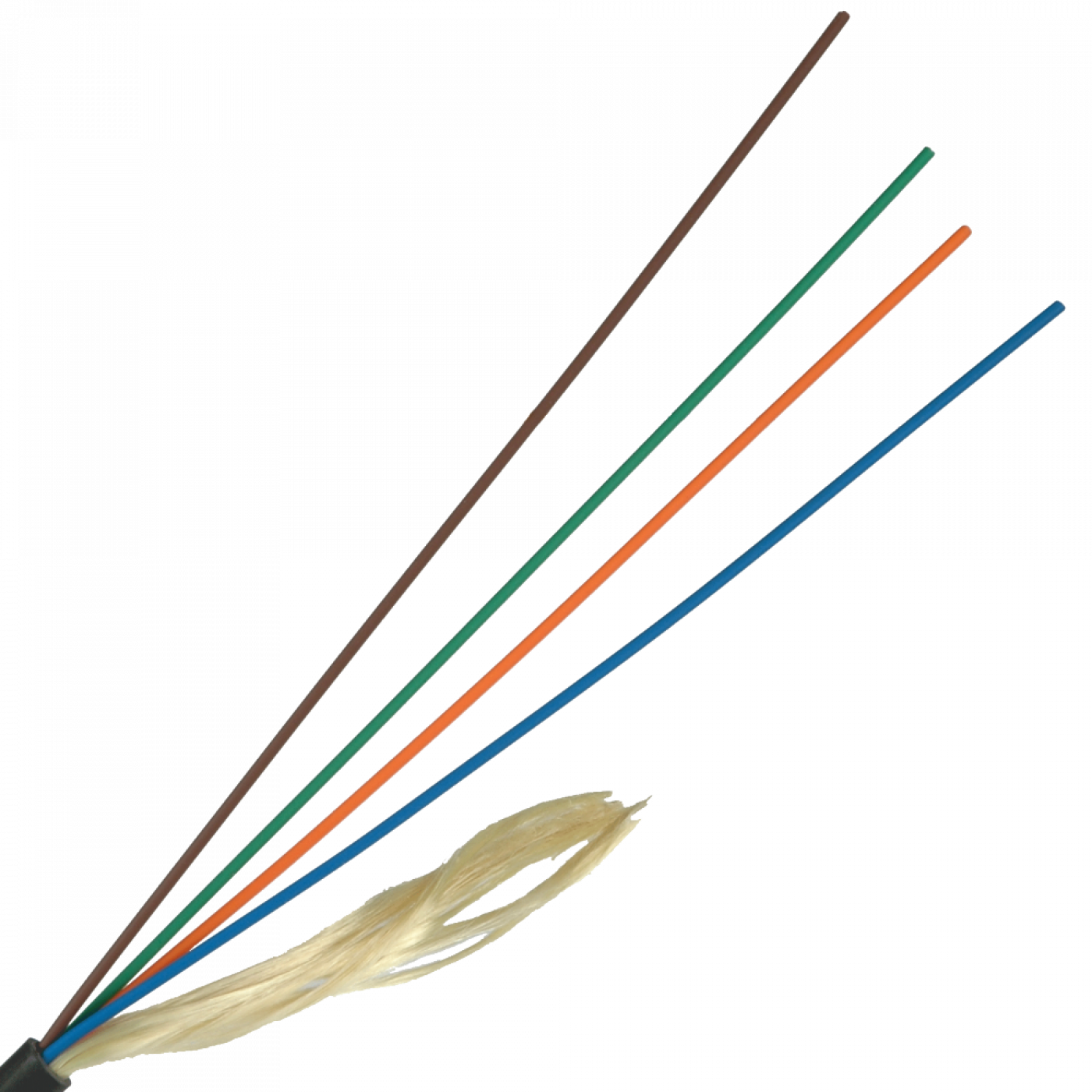

The cable contains a bundle of tight buffer fibers which is covered with a layer of strength aramid yarn. The cable jacket is made of a flame retardant, halogen-free, low-smoke polymer composition. The cable jacket is made of a black polymer composition resistant to ultraviolet radiation.

ПBy agreement with the customer, the color of the jacket can be changed.

The maximum count of optical fibers is 48.

№	Fibers 1-12	№	Fibers 13-24	№	Fibers 25-36	№	Fibers 37-48
1	Blue	13	Blue + 1 mark	25	Blue + 2 marks	37	Blue + 3 marks
2	Orange	14	Orange + 1 mark	26	Orange + 2 marks	38	Orange + 3 marks
3	Green	15	Green + 1 mark	27	Green + 2 marks	39	Green + 3 marks
4	Brown	16	Brown + 1 mark	28	Brown + 2 marks	40	Brown + 3 marks
5	Grey	17	Grey + 1 mark	29	Grey + 2 marks	41	Grey + 3 marks
6	White	18	White + 1 mark	30	White + 2 marks	42	White + 3 marks
7	Red	19	Red + 1 mark	31	Red + 2 marks	43	Red + 3 marks
8	Black	20	Black + 1 mark	32	Black + 2 marks	44	Black + 3 marks
9	Yellow	21	Yellow + 1 mark	33	Yellow + 2 marks	45	Yellow + 3 marks
10	Violet	22	Violet + 1 mark	34	Violet + 2 marks	46	Violet + 3 marks
11	Pink	23	Pink + 1 mark	35	Pink + 2 marks	47	Pink + 3 marks
12	Turquoise	24	Turquoise + 1 mark	36	Turquoise + 2 marks	48	Turquoise + 3 marks

Weight and Dimensions:

Fiber count in the cable	Cable diameter, mm	Cable weight, kg/km	Minimum Bend Radius, mm
2	5,1	29,8	51
4	5,6	35,1	56
6	6,0	39,7	60
8	6,3	43,7	63
12	6,9	51,6	69
16	7,5	60,2	75
24	8,5	75,4	85
32	10,5	95,2	105
36	11,0	102,0	110
48	12,1	121,4	121

Operating conditions:

Operating Temperature	-40°С…+60°С;
Installation Temperature	-10°С…+50°С
Storage Temperature	-50°С…+50°С
Minimum Bend Radius	At least 10 cable diameters
Lifetime	25 years

Physical specifications:

Optical cable is resistant to the following impacts

Impact type	Nominal value	Criteria for evaluation
Installation pulling tension (IEC 794-1-93 Е1 test procedure)	1600 N	Δα* ≤ 0,05 dB no damage
Long term pulling tension (IEC 794-1-93 Е1 test procedure)	800 N
Crush resistance (IEC 794-1-9З Е3 test procedure)	200 N/cm
Dynamic bending stresses (IEC 794-1-93 Е6 test procedure)	20 cycles at an angle ±90°
Axial twisting stresses (IEC 794-1-93 Е7 test procedure)	- 10 cycles
	- at an angle of ± 360° at a length of 4 m
Impact (IEC 794-1-93 Е4 test procedure)	Impact energy is 3 J
Climatic impact** (IEC 794-1-93 F1 test procedure)	- temperature range from minus 40 to 60 °С	Δα ≤ 0,05 dB/km
	- 2 cycles
	- cycle duration ≥ 16 hours

* - increase in attenuation of an optical fiber in a cable at specific wavelengths.

** - by agreement with the customer, the operating temperature range can be changed.

Product code	Description
LAN-OFC-DUxx-yy-HF	Indoor/Outdoor FO cable, Distribution, нг(А)-HF, xx fibers, OS2 Ultra/OM1/OM2/OM3/OM4, black

xx – fiber count

yy – fiber type (SU, S5, S7, M1, M2, M3, M4)

HF – нг(A)-HF jacket is made of polymeric material that is flame retardant in bundles, with reduced smoke and gas emission and does not contain halogens.

Applicable optical fibers:

SU	Single-mode fiber with extended operating wavelength and reduced attenuation and low bending loss (ITU G.652D+G.657.A1 recommendation)
S5	Single-mode fiber with an extended bandwidth of operating wavelengths (ITU-T G.652D recommendation)
S7	Single-mode positive non-zero dispersion shifted fiber (ITU-T G.655 recommendation)
M1	Single-mode with low bending loss (ITU-T G.657 recommendation)
M2	Multi-mode with core to cladding ratio 62,5/125 μm (IEC 60793-2-10 A1b type recommendation)
M3	Multi-mode with core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 type A1a.1 requirements)
M4	Multi-mode with low bending loss and core to cladding ratio 50/125 μm (ITU-T G.651 recommendation and IEC 60793-2-10 A1a.2 type requirements)
