Tool kit for working with optical fiber
Tool kit for working with optical fiber
LAN-NT-TK/FIBER-2
The kit is intended for installation work on optical cables. Using the tools included in the kit, you can cut a FO cable, strip fibers for fusion, cleave the fiber, measure the insertion loss of the fiber, clean the connectors, etc.

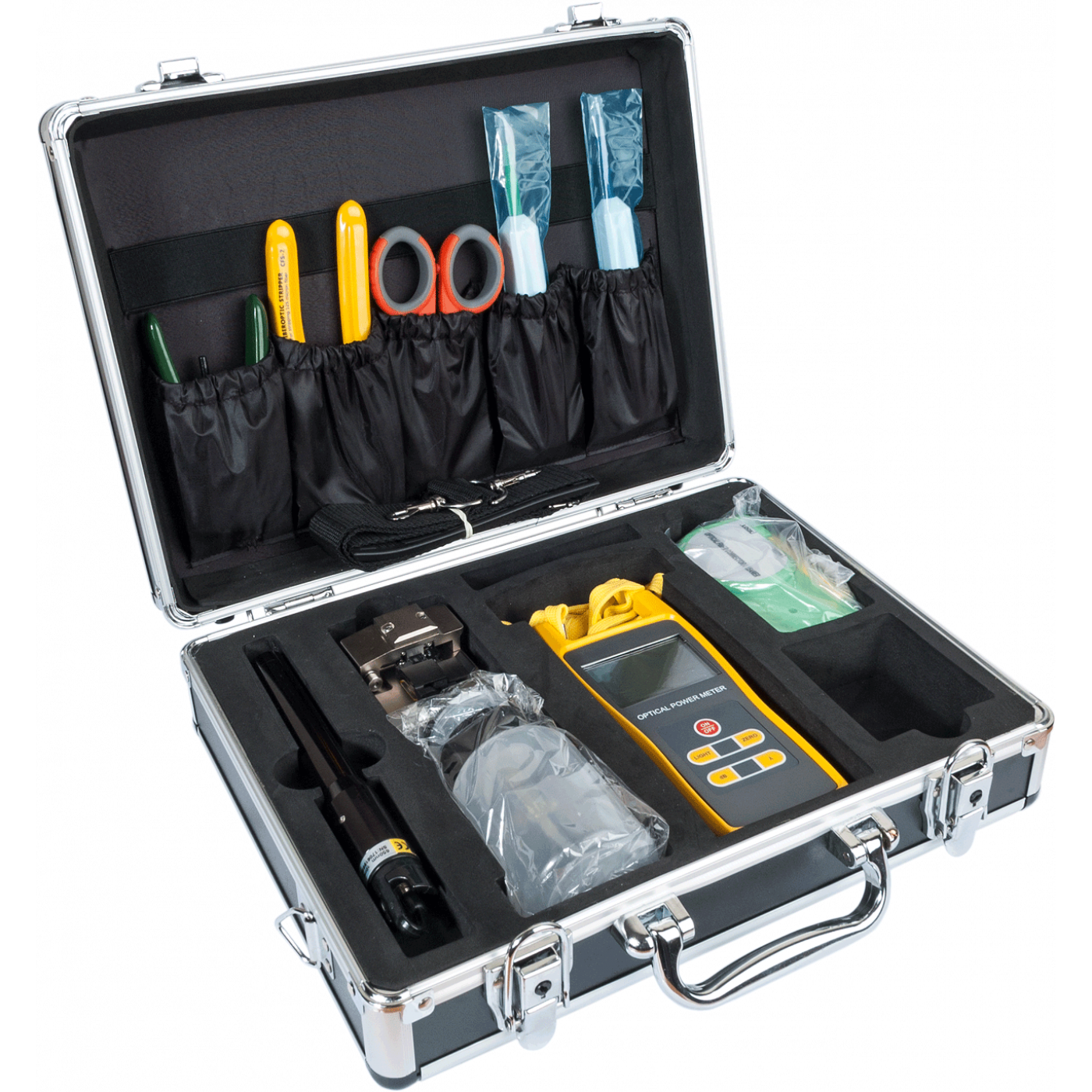

All items in the kit
| Description | Purpose | |

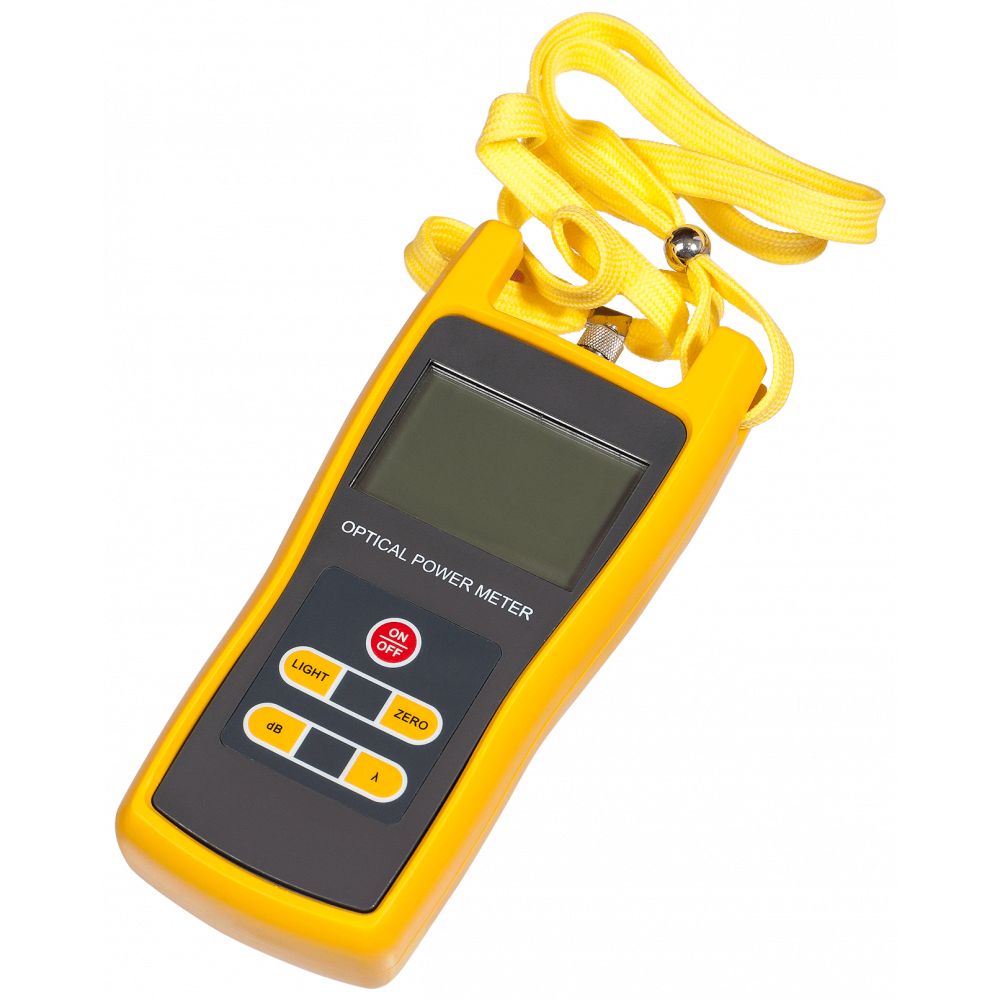

| 1 | Optical power meter | To measure insertion loss |

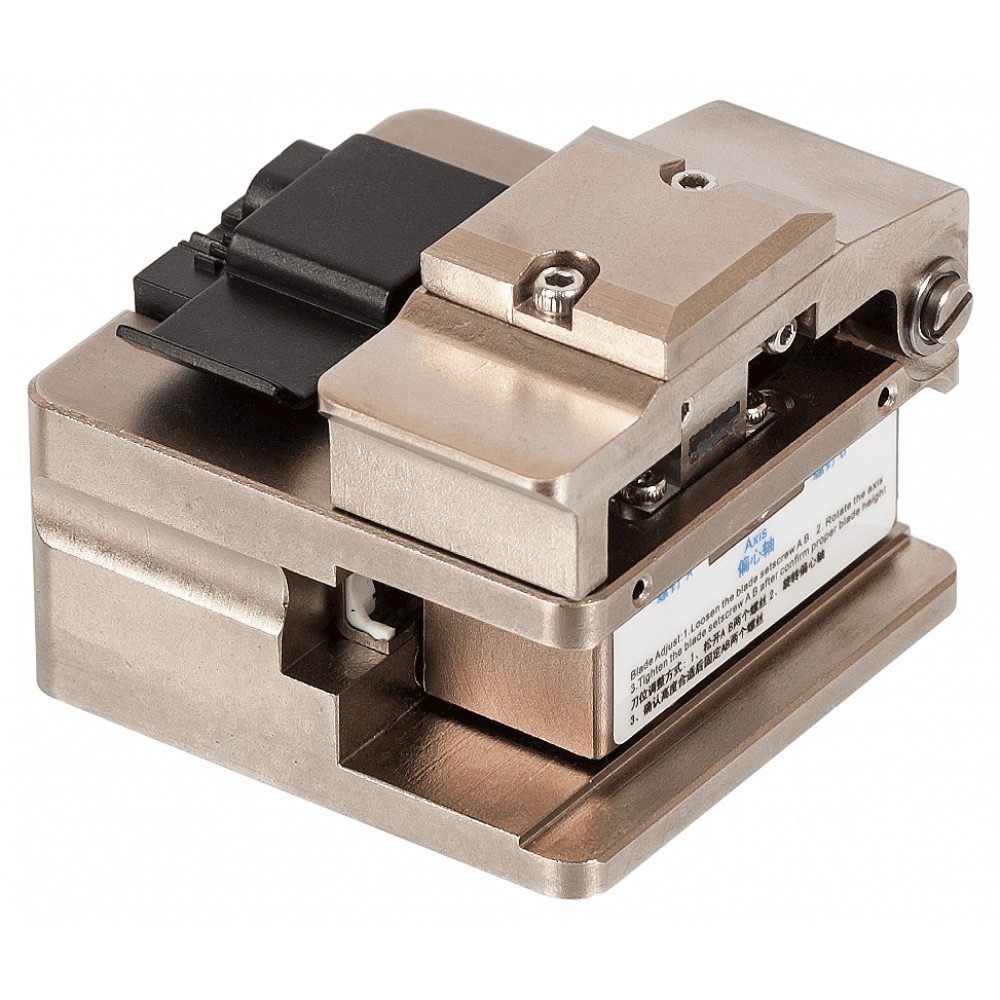

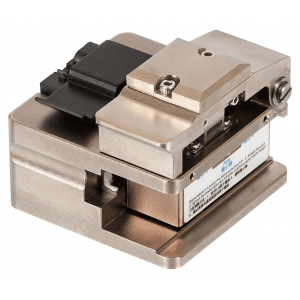

| 2 | Fiber cleaver | For cleaving the fiber before fusion |

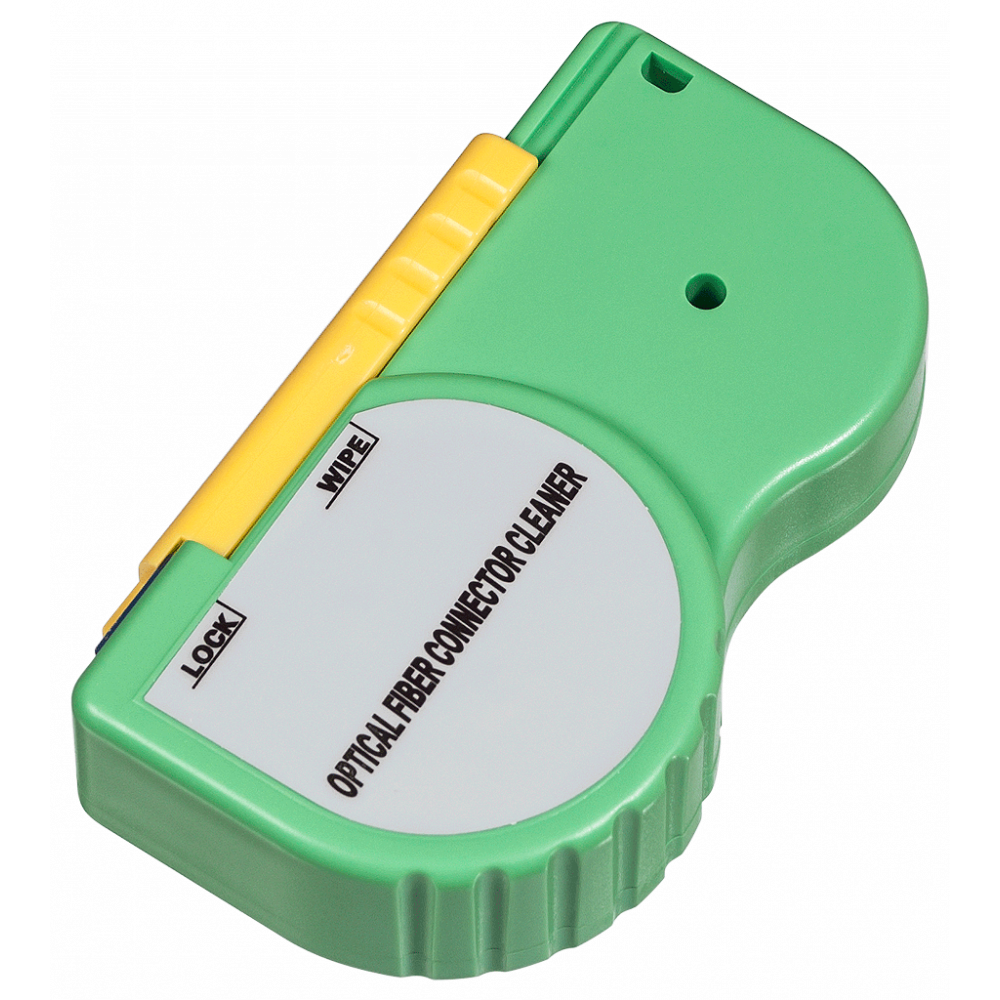

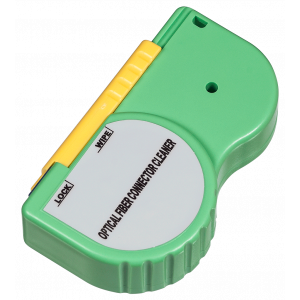

| 3 | Cassette cleaner | To clean the connectors |

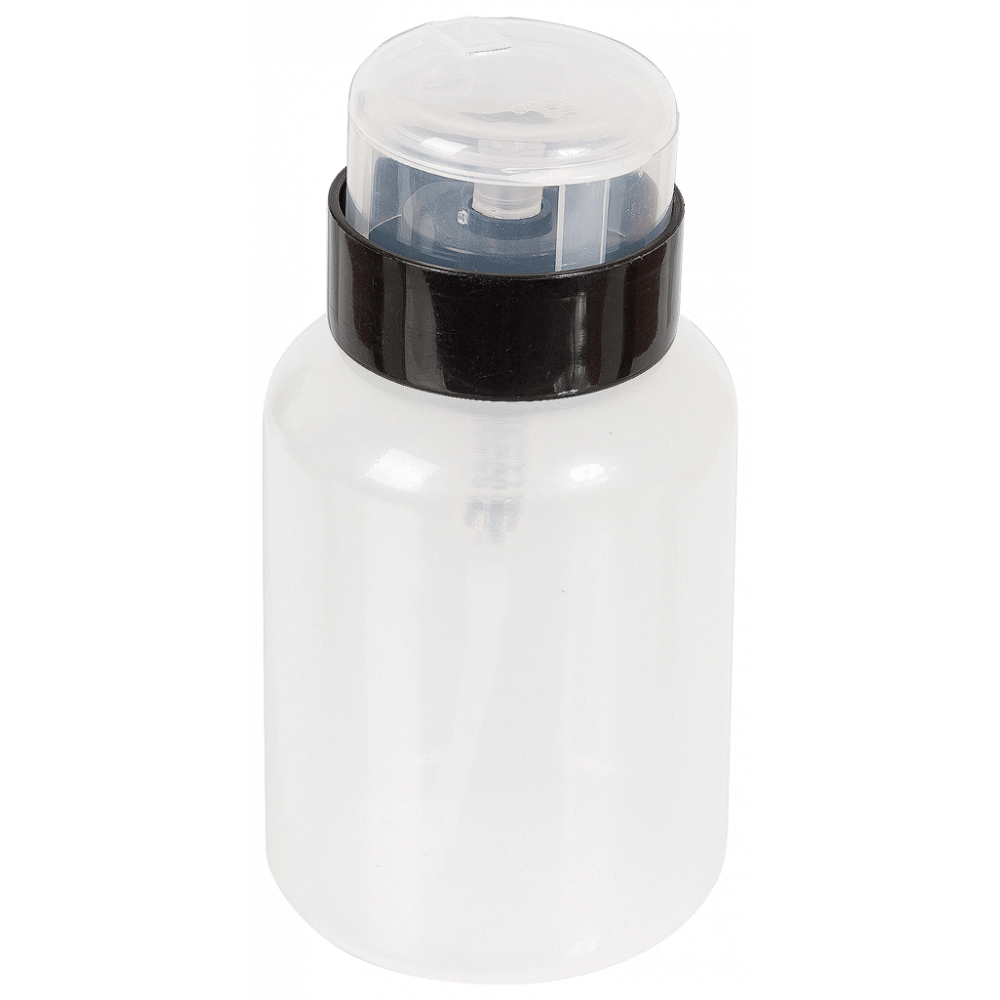

| 4 | Alcohol container with a dispenser | For alcohol storage and fiber cleaning |

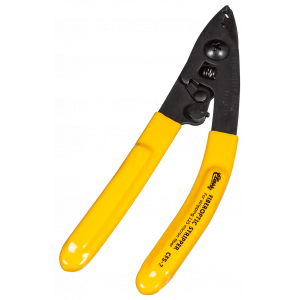

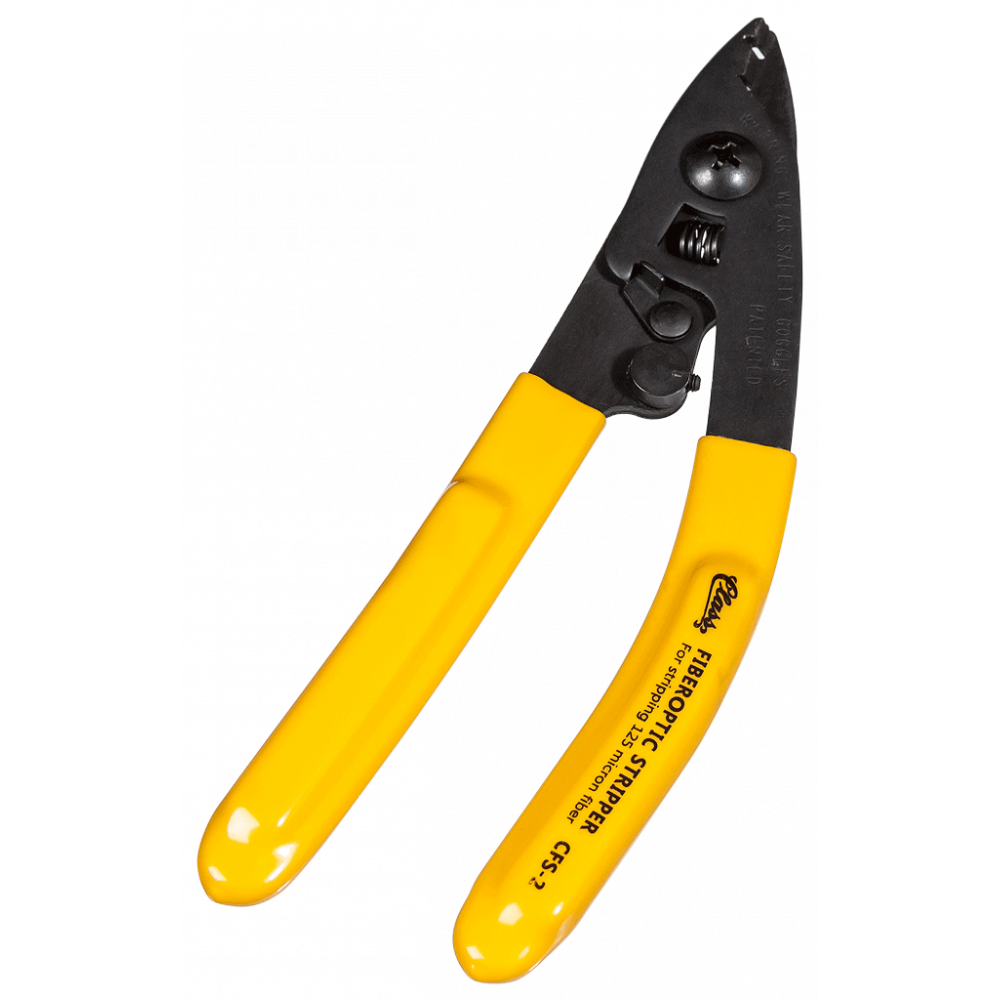

| 5 | Stripper for micromodules and 125 µm coating | To clean the fiber from the coating |

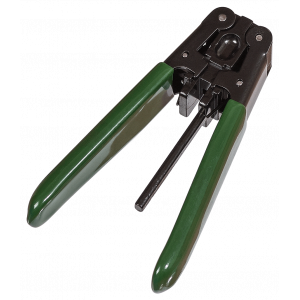

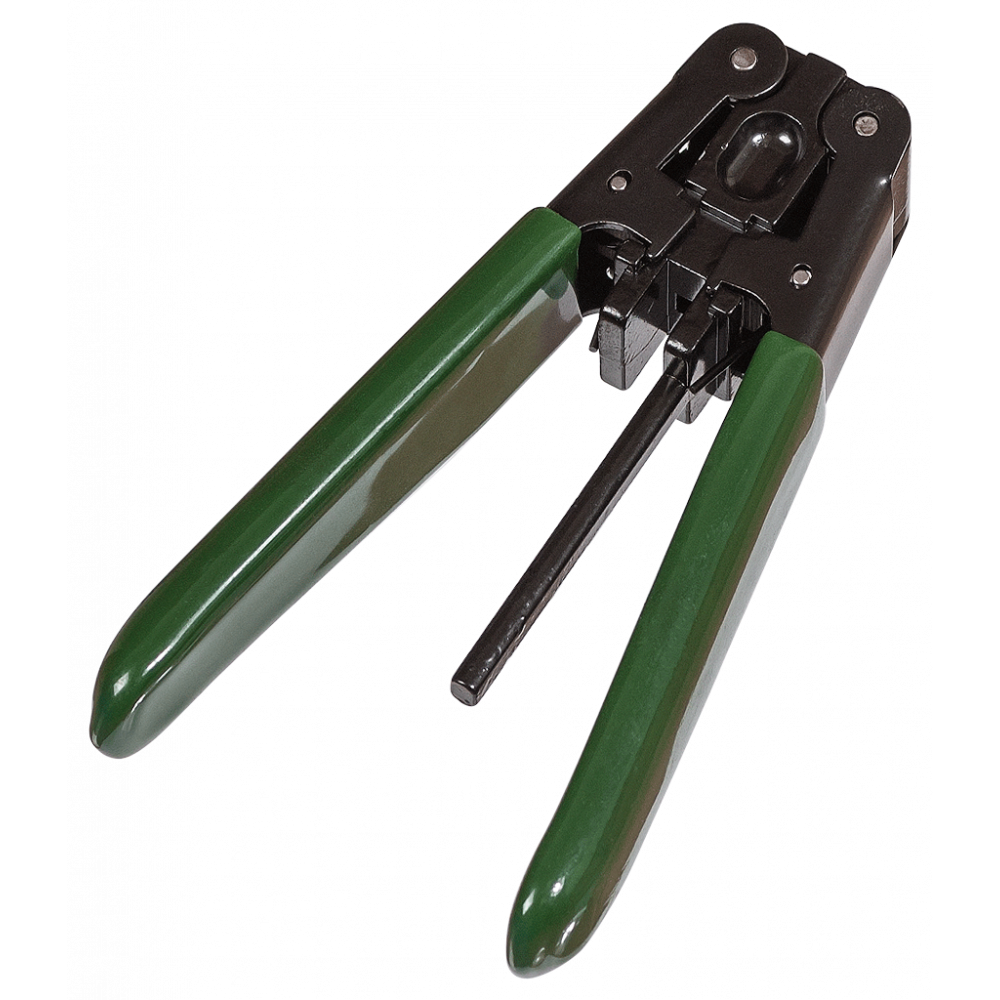

| 6 | 900 µm tight buffer stripper | To clean the fiber from the buffer |

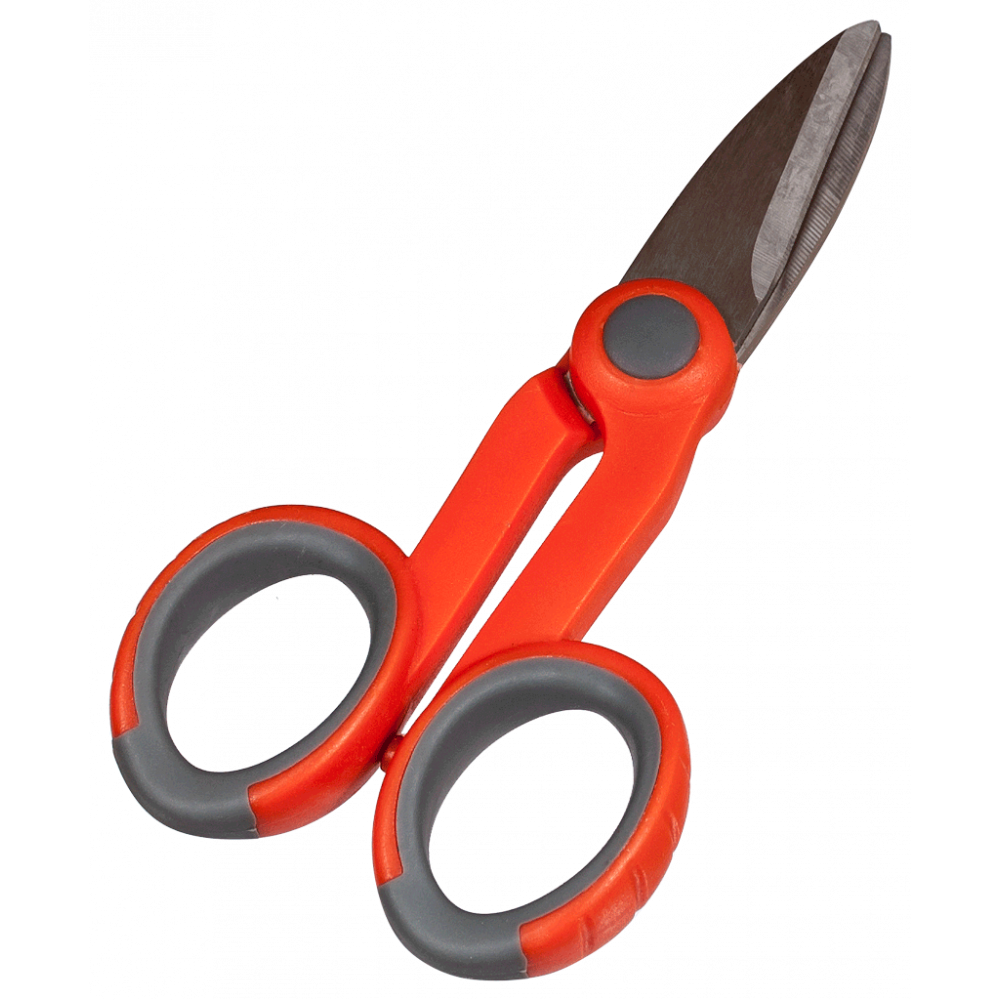

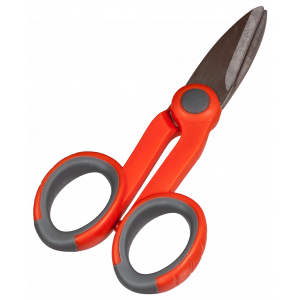

| 7 | Scissors | For cutting Kevlar yarn |

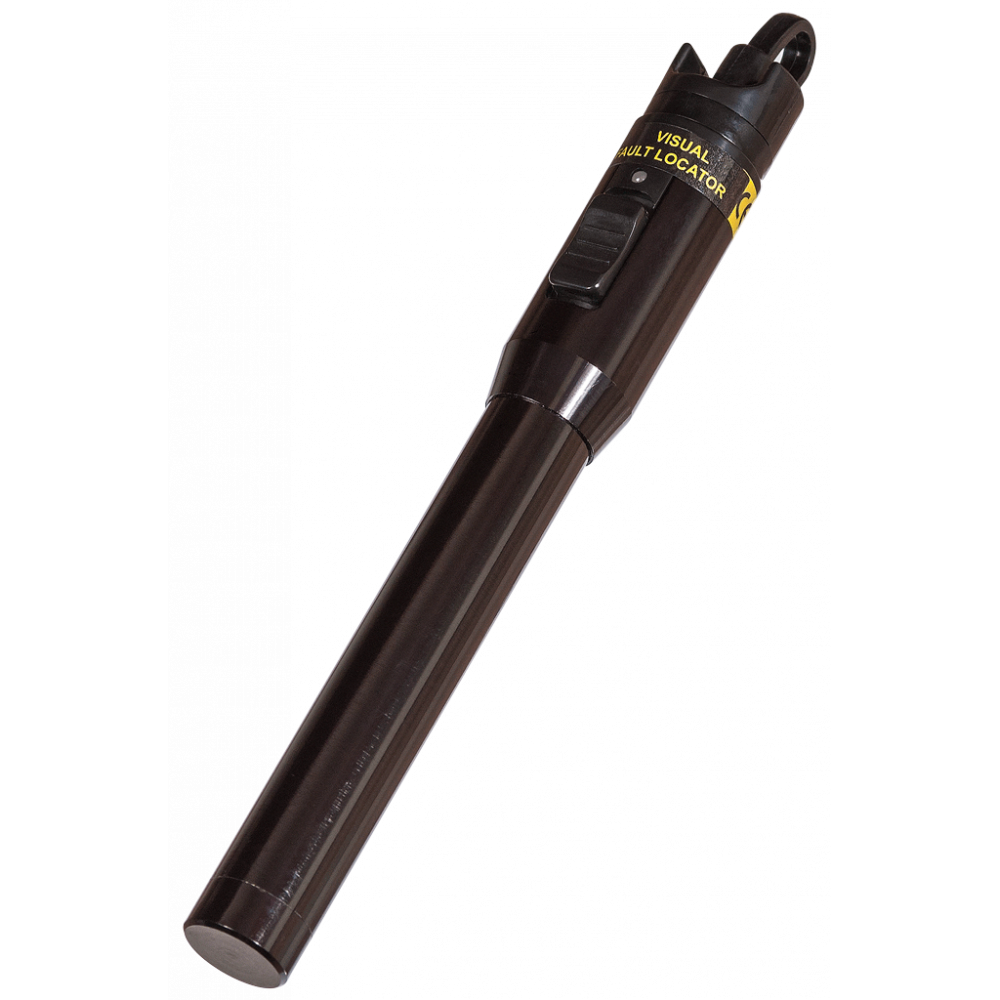

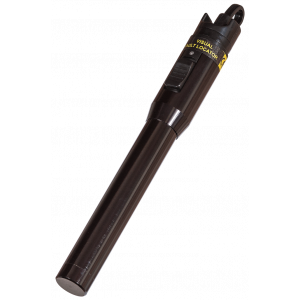

| 8 | Visual fault locator (VFL) | To locate fiber fault/bend sites |

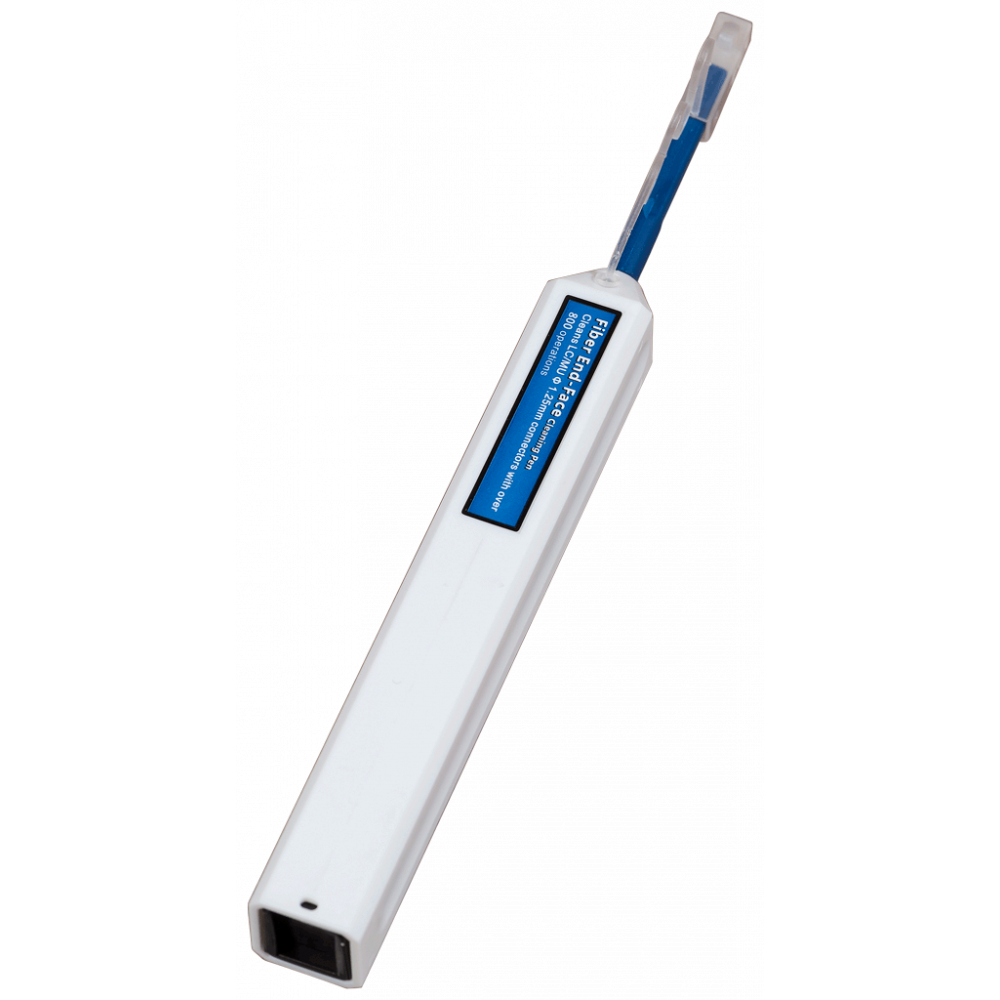

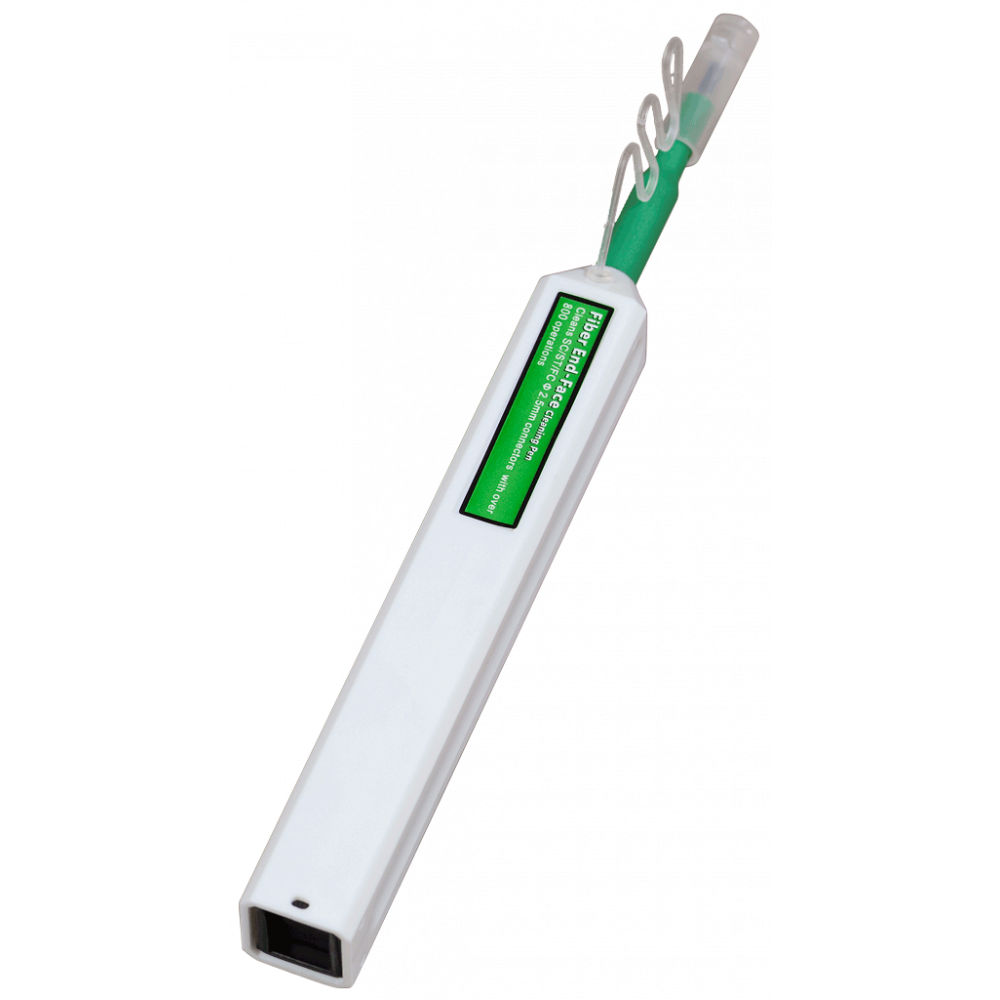

| 9 | Quick clean tool 2.5 | For cleaning 2.5 mm connectors |
| 10 | Quick clean tool 1.25 | For cleaning 1.25 mm connectors |
Optical power meter technical specifications
| Parameter | Value |
| Working wavelength | 850-980-1300-1310-1490-1550 nm |
| Sensor type | InGaAs |
| Measurement units | W, dBm |
| Measured power range | от – 70 dBm до + 2 dBm |
| Accuracy | 0,02 dBm |
| Optical Connector | 2.5 mm universal |
| Display type | LCD |
| Battery type | ААA, 3 pcs. |
| Battery life | 200 hours |
| Display backlight | yes |
| Auto Off | 10 min |
| Operating temperature | from -10 to +60°С |
| Storage temperature | from -25 to +70°С |
| Dimensions | 180 х 80 х 35 mm |
| Weight | 185 gr |
VFL Technical Specifications
| Parameter | Value |
| Wavelength | 650±10nm |
| Output power, mW | 10 |
| Optical connector | universal 2.5 mm connector |
| Operating modes | Continuous, blink |
| Blink frequency, Hz | 2~3 |
| Operating temperature | -20°~+60° |
| Storage temperature | -40°~+85° |
| Battery type | Two AA batteries (not included) |
| Battery life | More than 20 hours |
| Length, mm | 190 |
| Diameter (at widest part), mm | 25 |
Cleaver Technical Specifications
| Parameter | Value |
| Fiber buffer diameter, μm | 250, 900 |
| Number of blade positions | 16 |
| Blade life | 2000 cleave per position |
