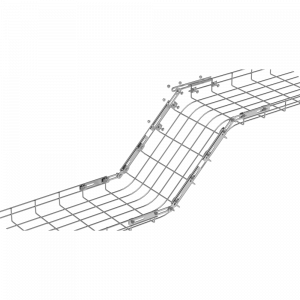

Hinged splice for a tray with 3.5-6.0 mm wire

Hinged splice for a tray with 3.5-6.0 mm wire
Hinged splice for a tray with 3.5-6.0 mm wire
Hinged splice for a tray with 3.5-6.0 mm wire
LAN-MT-CA-EZ

Purpose:

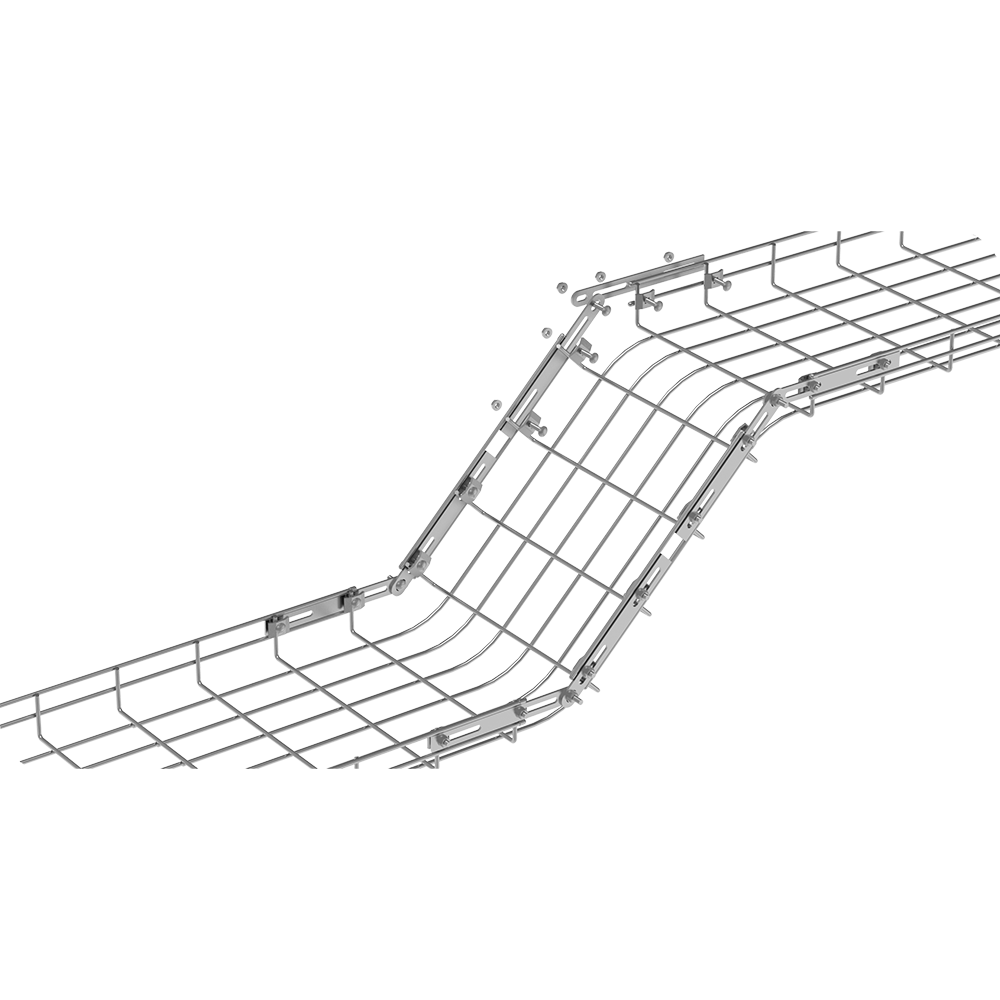

  • reinforcement of tray splices when forming external and internal bends.

Tray wire diameter:

  • 3.5 mm – 6.0 mm.

Features:

  • • strong splicing,
  • • ease of installation,
  • • suitable to all types of trays.

Kit includes:

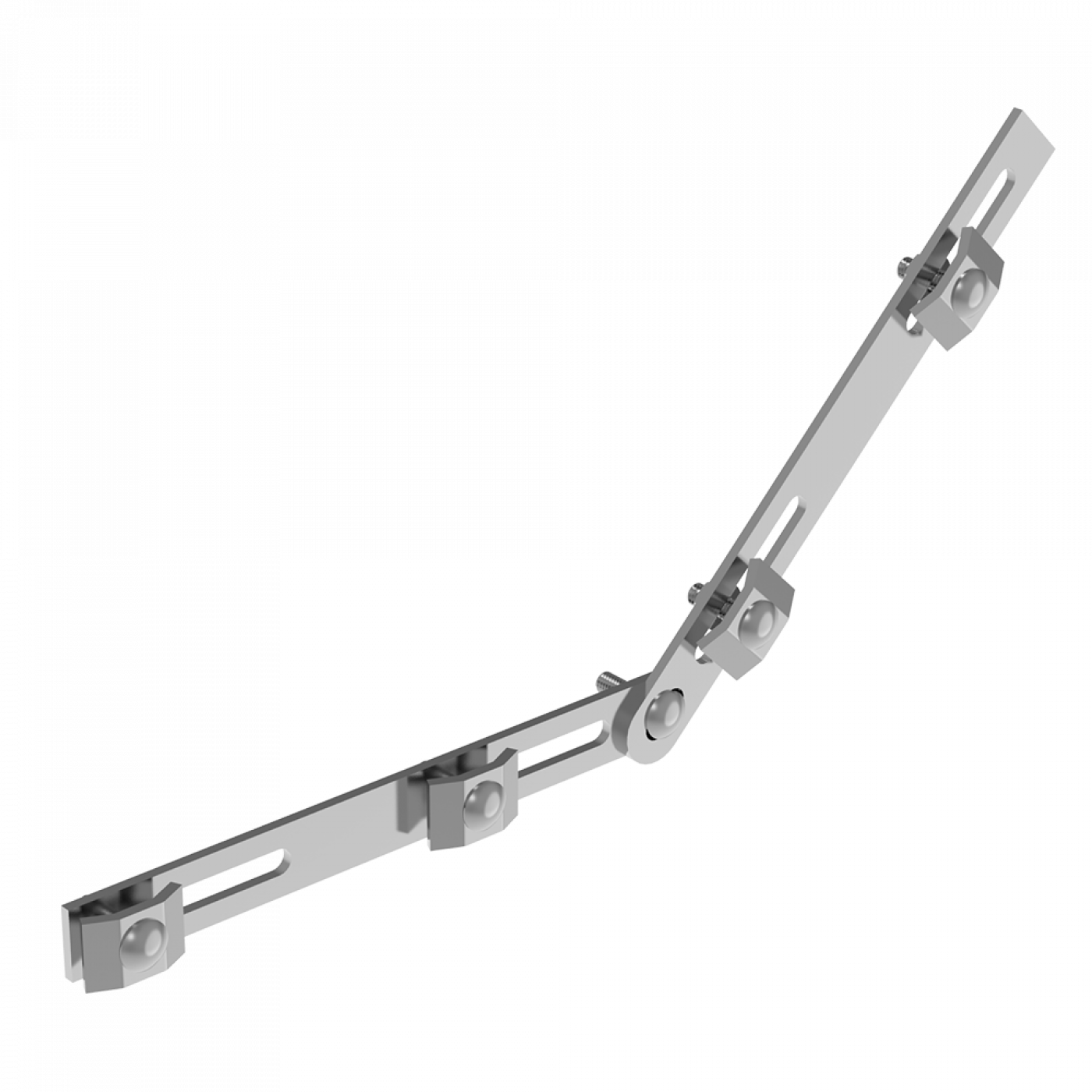

  • • hinged splice bar - 2 pcs.,
  • • M6x20 bolt - 5 pcs.,
  • • clamp washer - 4 pcs.,
  • • M6 nut - 5 pcs.

Model range (1)

  • Code Code / Name Name Количество
  • LAN-MT-CA-EZ
    Hinged splice for a tray with 3.5-6.0 mm wire
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
