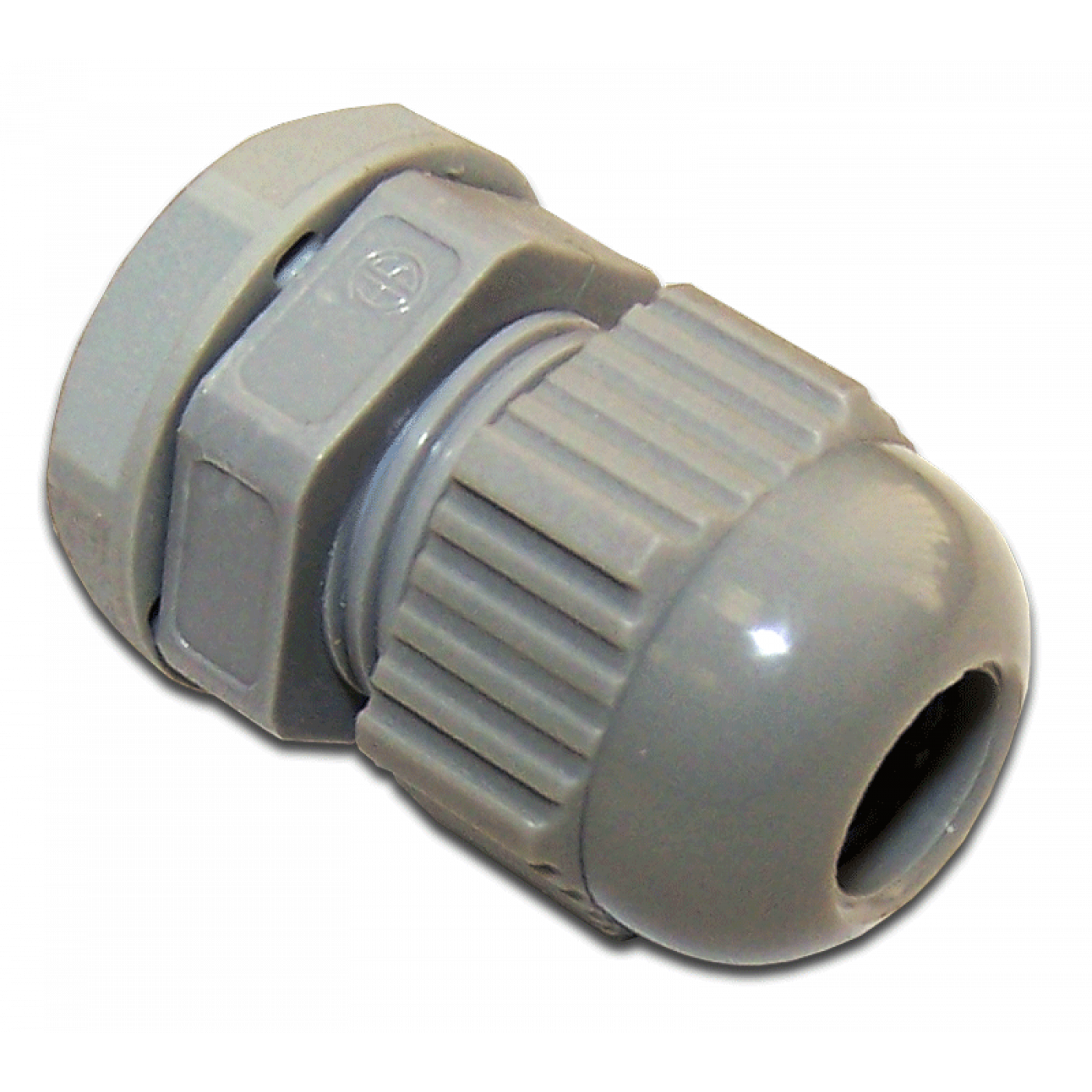

Cable gland, IP68, gray
Cable gland, IP68, gray
LAN-MBPG-xx-GY
Plastic cable gland is designed for sealing cables
with a diameter of 4 to 8 mm into boxes and housings with IP68 protection class
to protect their internal space from dust, dirt, and moisture.
The cable gland is installed in holes with a diameter
of 16 mm in housings and boxes with obligatory fixation from the inside with a
fastening nut.

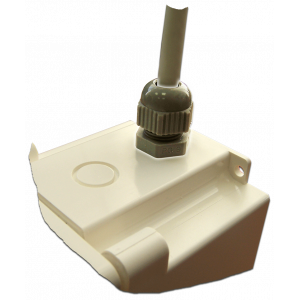

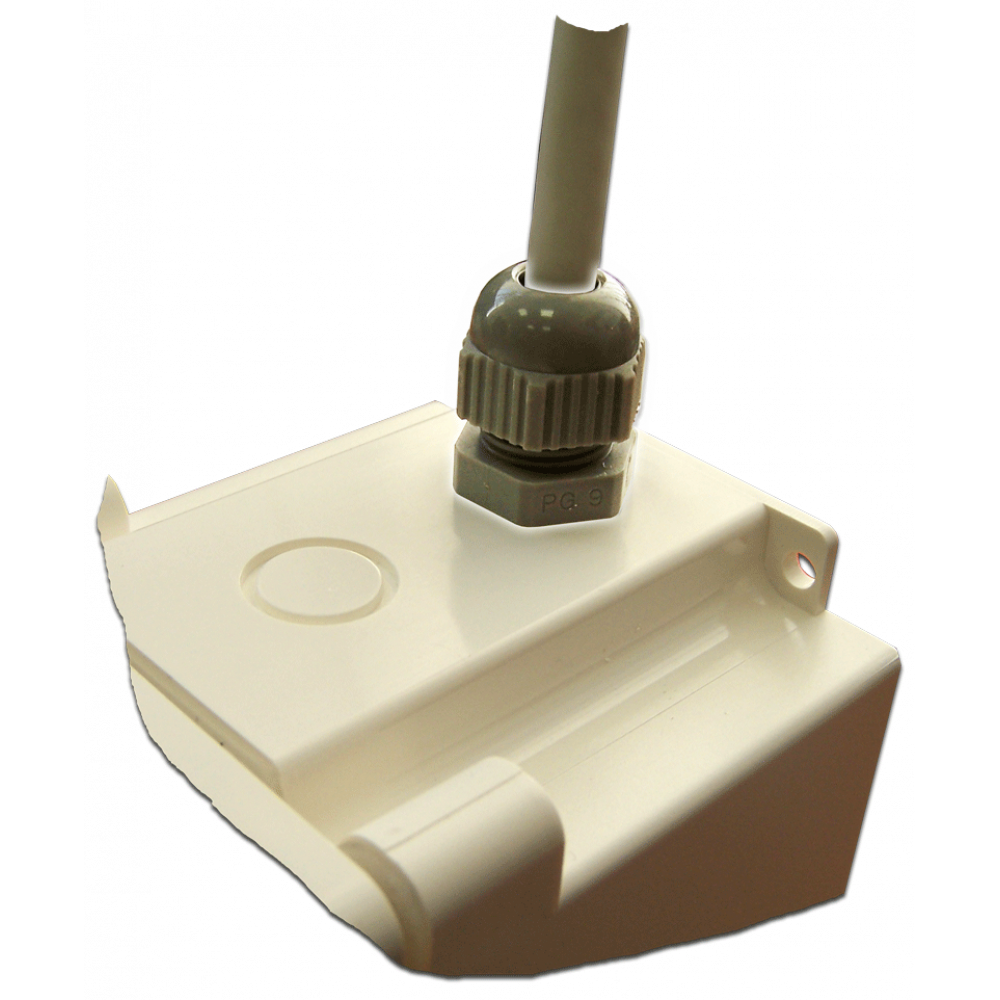

For correct cable entry, you must first put the
clamping ring on it and only then insert it through the rubber seal into the
inside of the box. It is necessary to fix the cable jacket by tightening the
clamping ring after pulling the required cable length inside.
Made of ABS.
Protection class is IP68.
Color is gray (RAL 7046).
