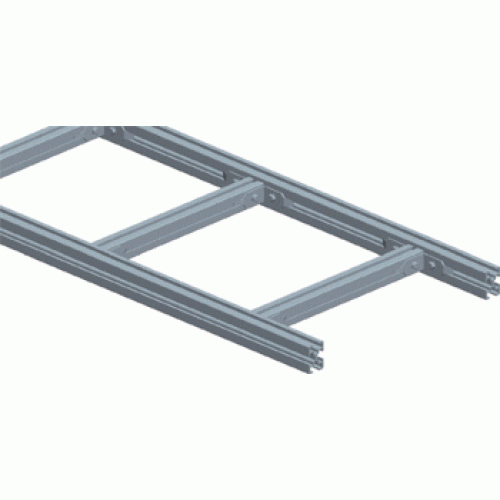

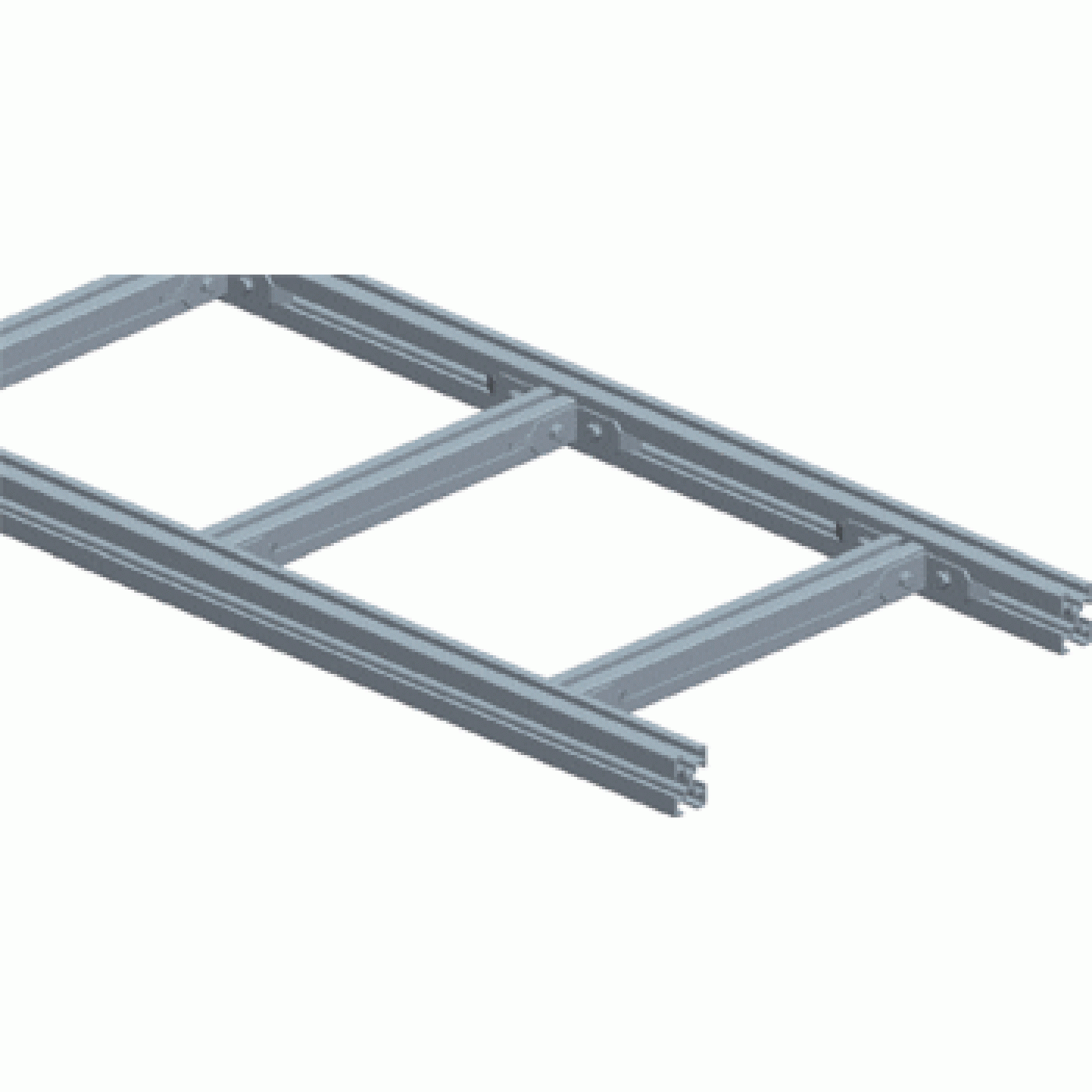

Ladder tray, straight section

Ladder tray, straight section
Ladder tray, straight section
LAN-LTAxxx
  • Sections available in various widths from 200 mm to 1000 mm.
  • Vertical and horizontal mounting of the tray is allowed.
  • Adjustable distance between two neighbor cross beams can be from 250 mm to 400 mm.
  • Permissible span - from 1.5 to 2 meters.
  • Easy and convenient installation.
  • Types of installation – ceiling mounting, wall mounting, floor mounting.


More about aluminum ladder trays see on video:


Model range (9)

  • Code Code / Name Name Количество
  • LAN-LTA200
    Ladder tray, straight section, 200 mm width, aluminum, 3 meters
  • LAN-LTA300
    Ladder tray, straight section, 300 mm width, aluminum, 3 meters
  • LAN-LTA400
    Ladder tray, straight section, 400 mm width, aluminum, 3 meters
  • LAN-LTA500
    Ladder tray, straight section, 500 mm width, aluminum, 3 meters
  • LAN-LTA600
    Ladder tray, straight section, 600 mm width, aluminum, 3 meters
  • LAN-LTA700
    Ladder tray, straight section, 700 mm width, aluminum, 3 meters
  • LAN-LTA800
    Ladder tray, straight section, 800 mm width, aluminum, 3 meters
  • LAN-LTA900
    Ladder tray, straight section, 900 mm width, aluminum, 3 meters
  • LAN-LTA1000
    Ladder tray, straight section, 1000 mm width, aluminum, 3 meters
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
