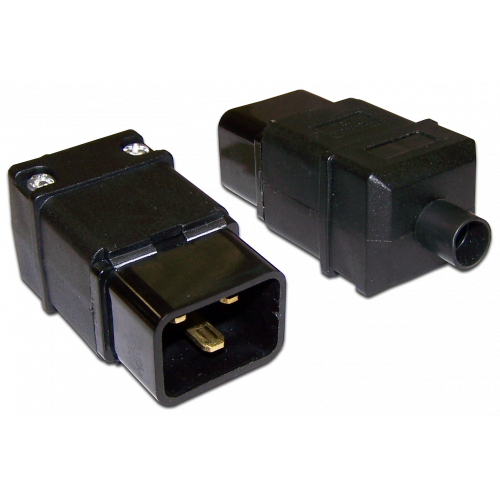

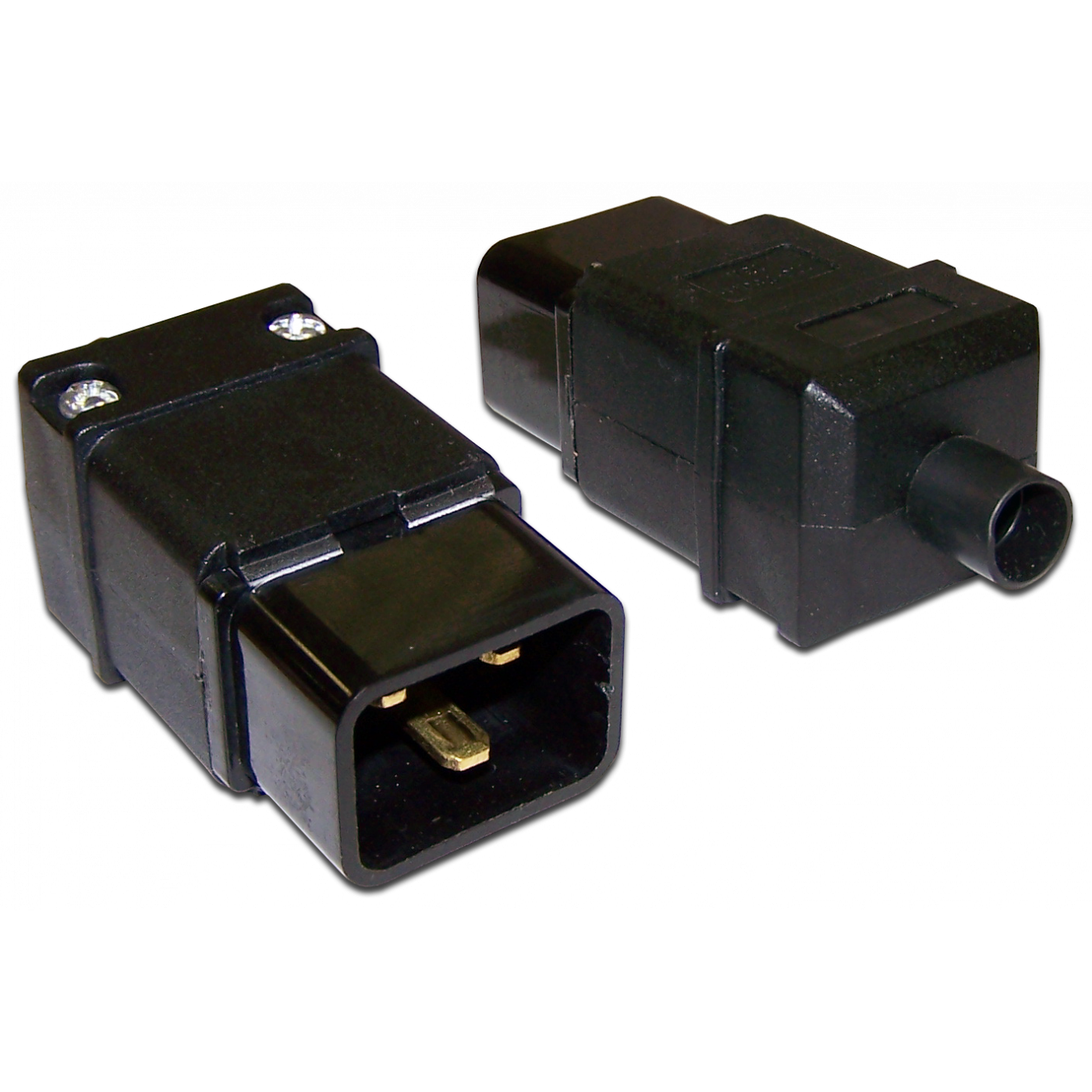

IEC 60320 C20 inlet, 16A, 250V, dismountable, black
IEC 60320 C20 inlet, 16A, 250V, dismountable, black
LAN-IEC-320-C20
The C20 inlet is intended for installation on electric cables for connection to equipment with a C19 connector.
The inlet has 3 screw terminals: phase, neutral and earth.
The connector has a clamping fixation of the cable jacket. The dismountable housing allows multiple mounting/dismounting of the plug on the cable without performance degradation.
Insulator made of glass fiber reinforced polybutylene terephthalate (PBT) is UL-94V-O rated.
Color is black.
| Rated voltage: | 125/ 230 V AC |
| Max. allowable voltage: | 250 V AC |
| Rated frequency: | 50 Hz |
| Max. load current: | 16 A |
| Max. working temperature: | 75°С |
| Max. rated voltage: | Short term 2000V |
| Insulator resistance: | not less than 1000 MOhm |
