Visual Fault Locator
Visual Fault Locator
LAN-FT-PVL

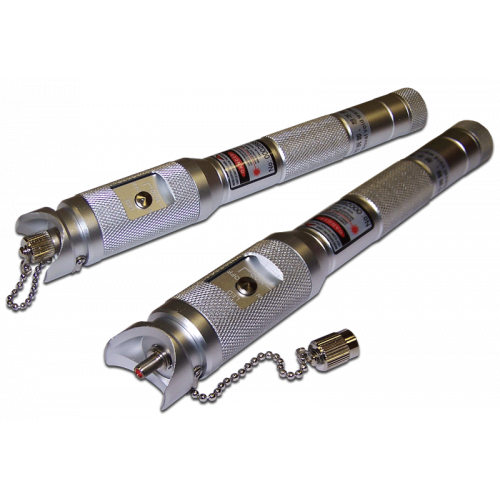

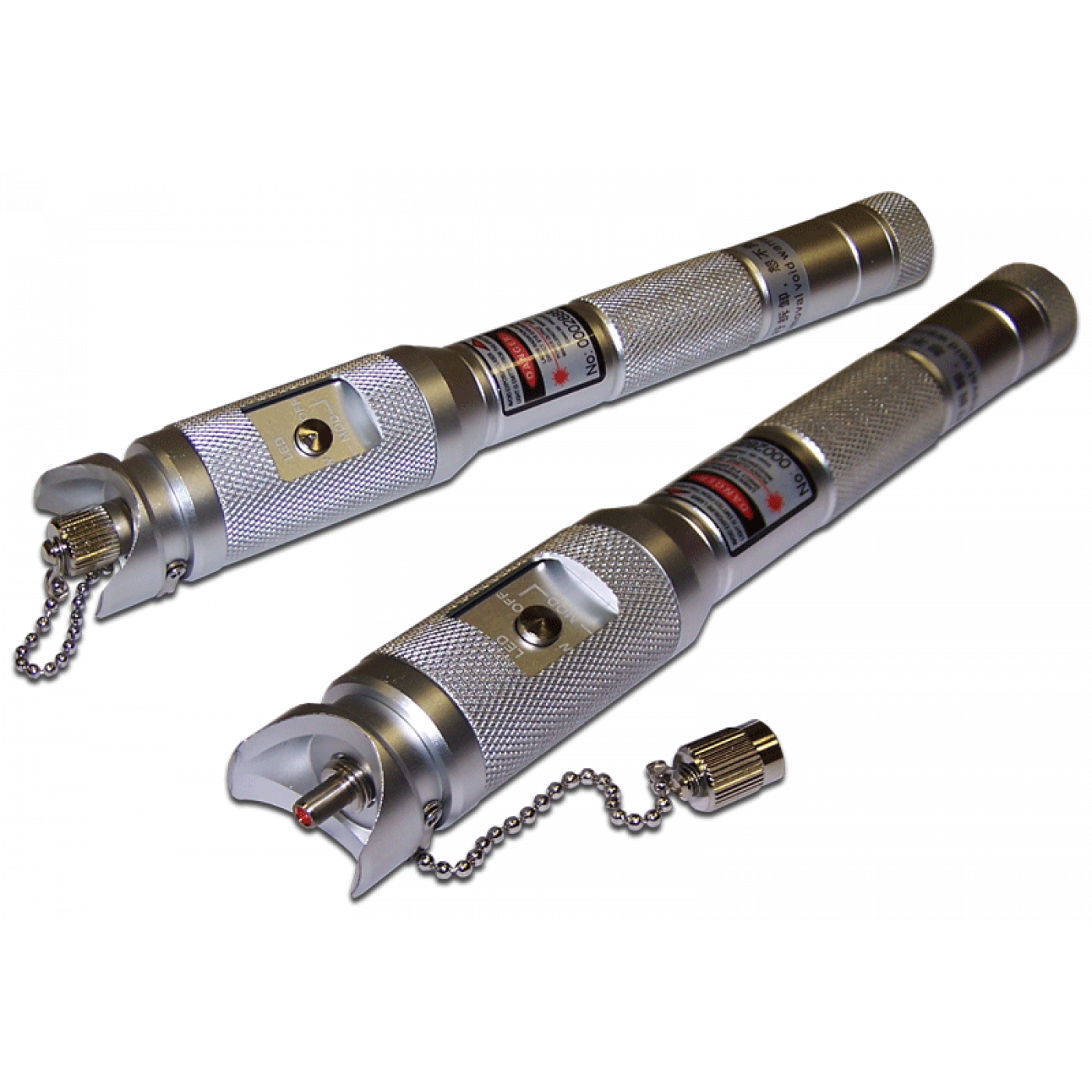

Visual fault locator is used to find damage and defects in optical fibers. To search for defects super-bright light in the visible spectrum (650nm - red light) is used.

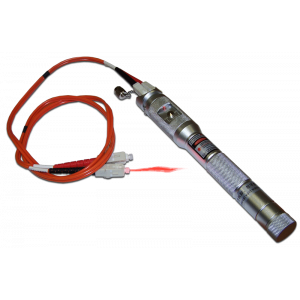

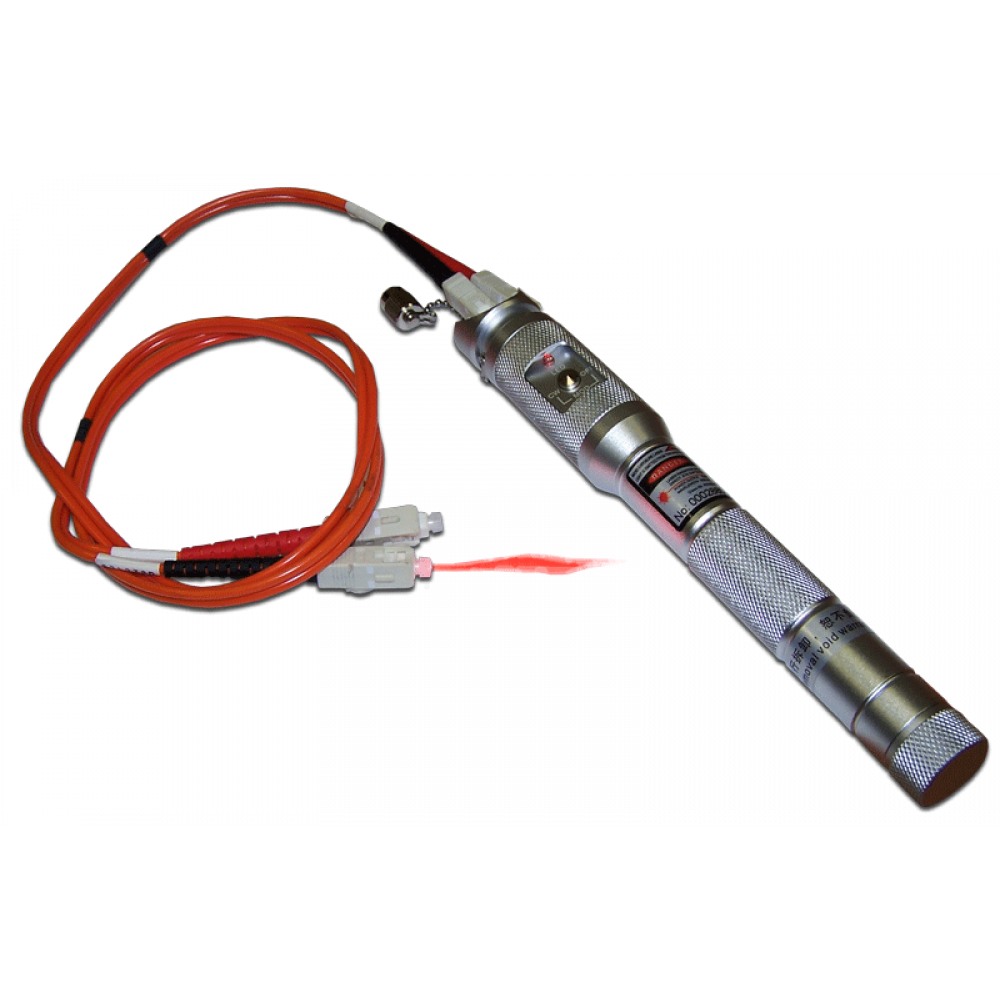

When injecting visible light into the fiber being tested, the locations of defects and damages are marked with red light.
Blink mode ensures that the red light is visible even in bright ambient lighting conditions.
The tool is easy to use, solid and undemanding.
The device is equipped with a universal 2.5 mm socket.
Technical Specifications:
| Parameter | Value |
| Wavelength | 650±10nm |
| Output power, mW | 5 |
| Optical connector | universal 2.5 mm connector |
| Blink frequency, Hz | 2~3 |
| Operating temperature | -20°~+60° |
| Storage temperature | -40°~+85° |
| Battery type | Two AA batteries (not included) |
| Battery life | More than 20 hours |
| Length, mm | 190 |
| Diameter (at widest part), mm | 25 |
Package includes:
- Visual Fault Locator,
- Quick user guide,

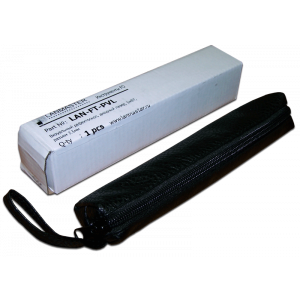

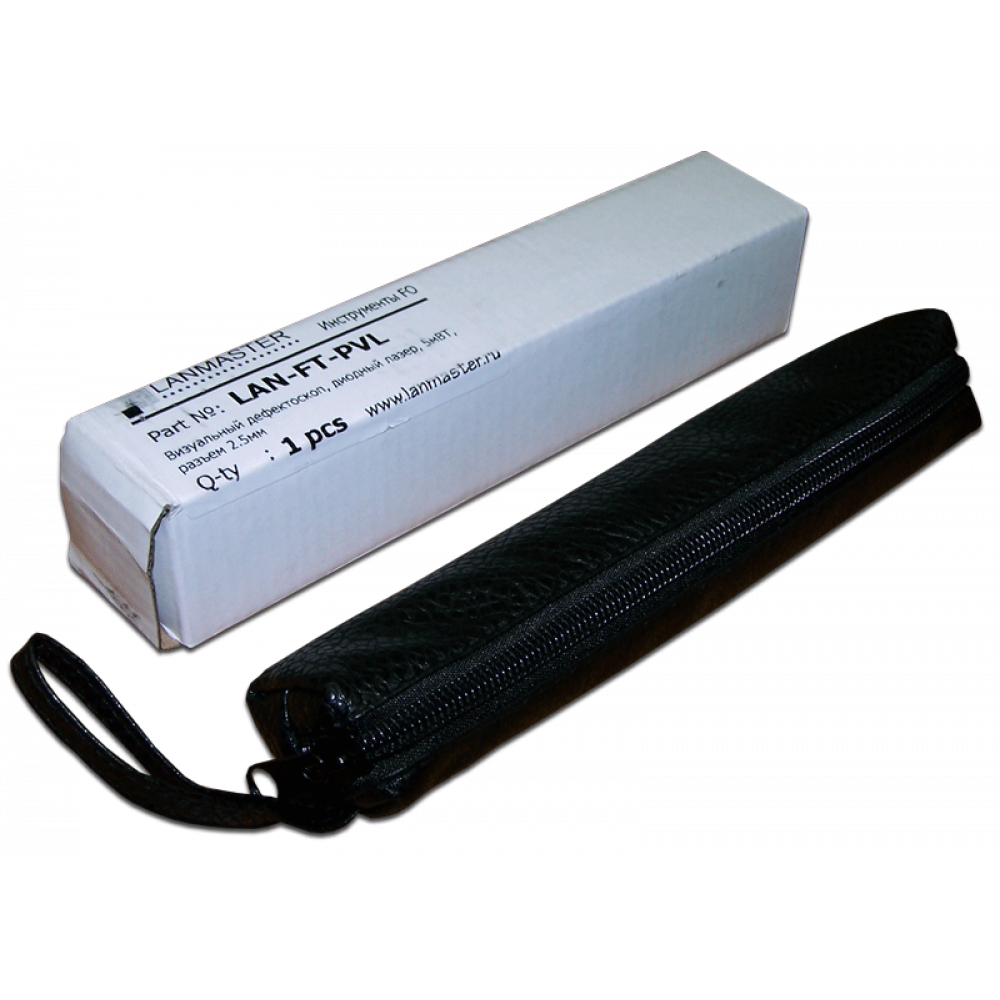

- Zippered case.
