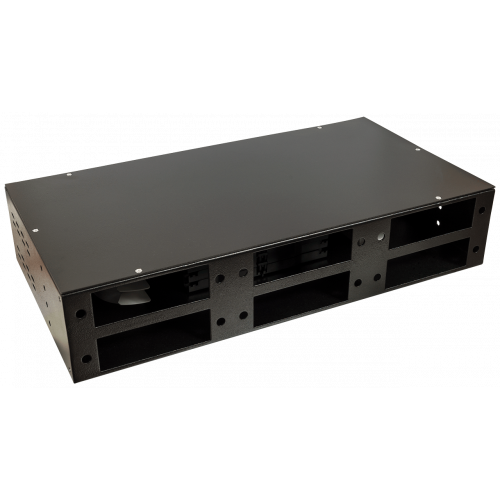

Metal 19" optical enclosure, 2U, for 6 adapter faceplates
Metal 19" optical enclosure, 2U, for 6 adapter faceplates
LAN-FOBM-RM-6P
The enclosure is intended for terminating optical cables in 19" cabinets and racks. The enclosure allows you to run several cables of different designs at the same time which can be inserted from the back. The cable entry holes are protected by rubber grommets. There are special clamps for the central strength member of the optical cable inside enclosure. The adapter faceplates are fixed with plastic clips.
Enclosure specifications
| Dimension | Fiber, max. | Adapter faceplate | Splice tray |
|---|---|---|---|
| 2U | 72 | 6 | 3 |
Splice tray specifications
| Type of protective sleeves | Fiber, max. |
|---|---|
| 40мм | 12 |
| 60мм | 24 |
Applicable unpopulated adapter faceplates
| Faceplate product code | Acceptable adapters |
|---|---|
| LAN-APM-8DP | 8 SC duplex, 8 LC quadro |
| LAN-APM-8SC | 8 SC simplex, 8 LC duplex |
| LAN-APM-8FC | 8 ST/FC simplex |
| LAN-APM-BLNK | Blank faceplate |
| LAN-APM-6MPO | 6 MPO adapters |
Applicable populated adapter faceplates
| Faceplate product code | Installed adapters |
| LAN-APM-8xSC/OS2 | 8 SC/OS2 simplex adapters |
| LAN-APM-8xSC/APC | 8 SC/APC simplex adapters |
| LAN-APM-8xSC/OM2 | 8 SC/OM2 simplex adapters |
| LAN-APM-8x2SC/OS2 | 8 SC/OS2 duplex adapters |
| LAN-APM-8x2LC/OS2 | 8 LC/OS2 duplex adapters |
| LAN-APM-8x2LC/OM2 | 8 LC/OM2 duplex adapters |
| LAN-APM-8x2LC/OM3 | 8 LC/OM3 duplex adapters |
| LAN-APM-8x2SC/OM2 | 8 SC/OM2 duplex adapters |

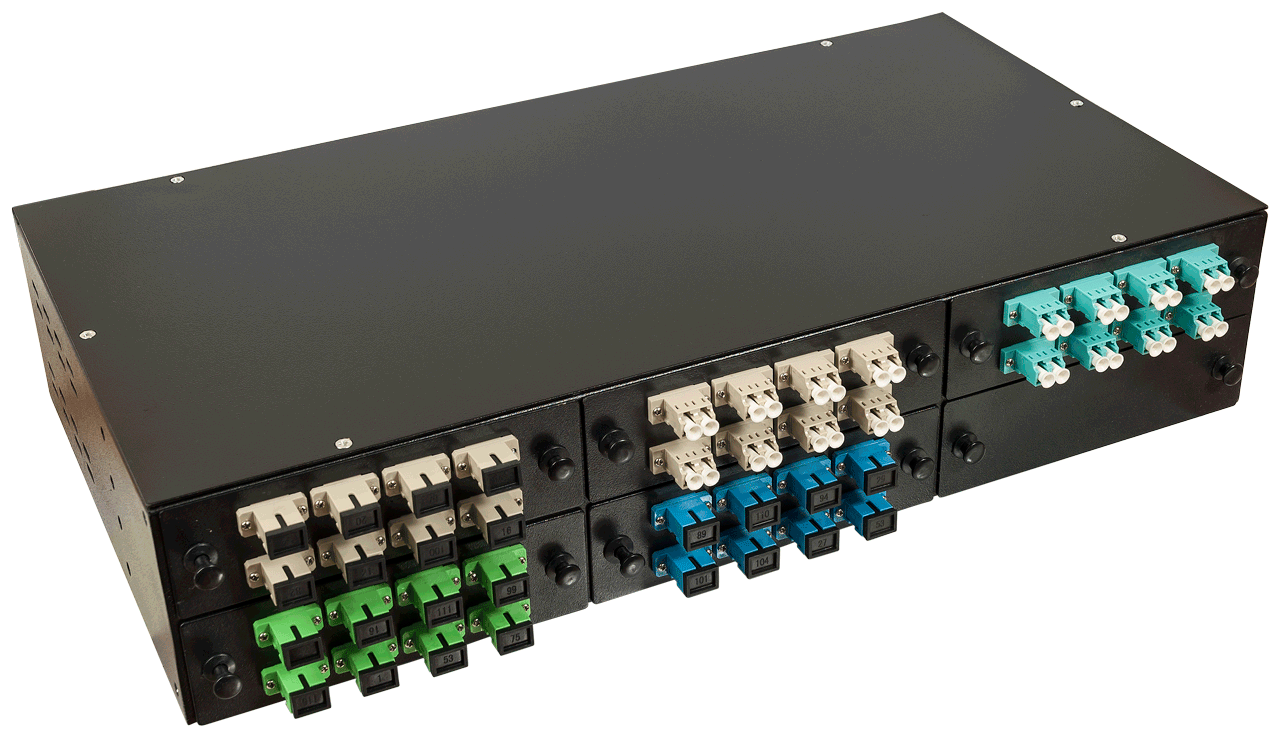

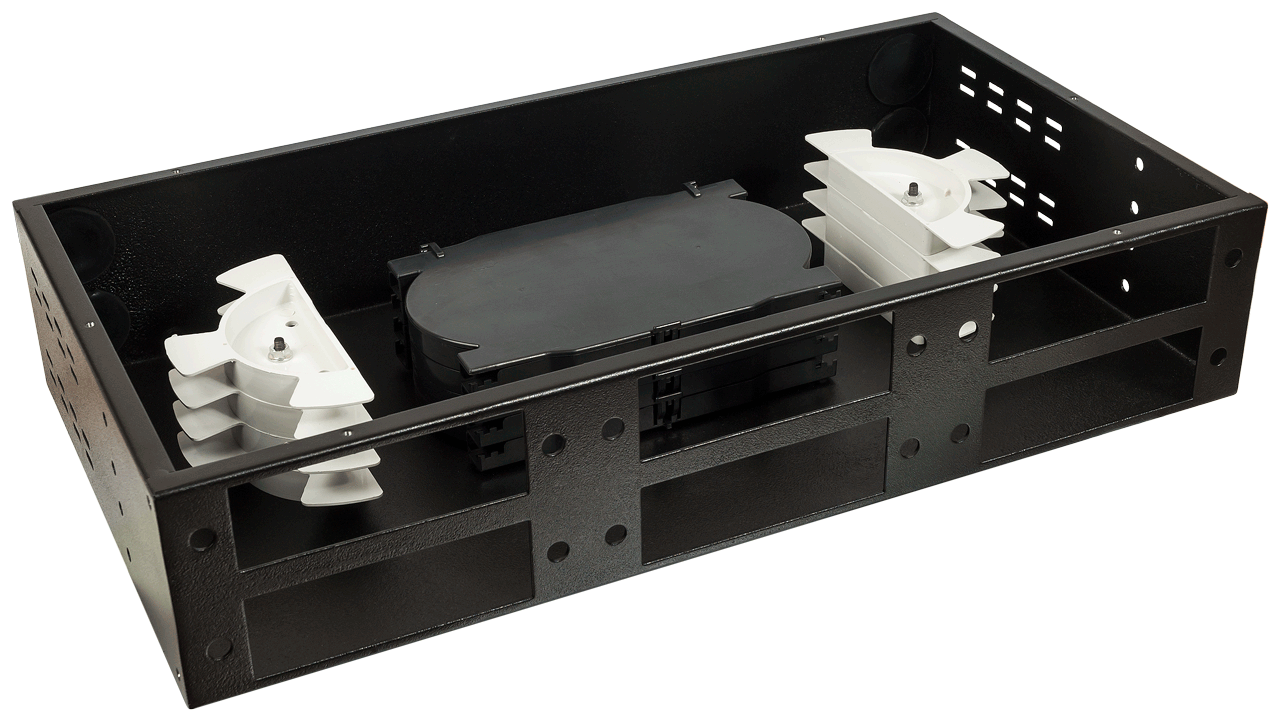

| Enclosure without cover | Enclosure with faceplates |
 |  |

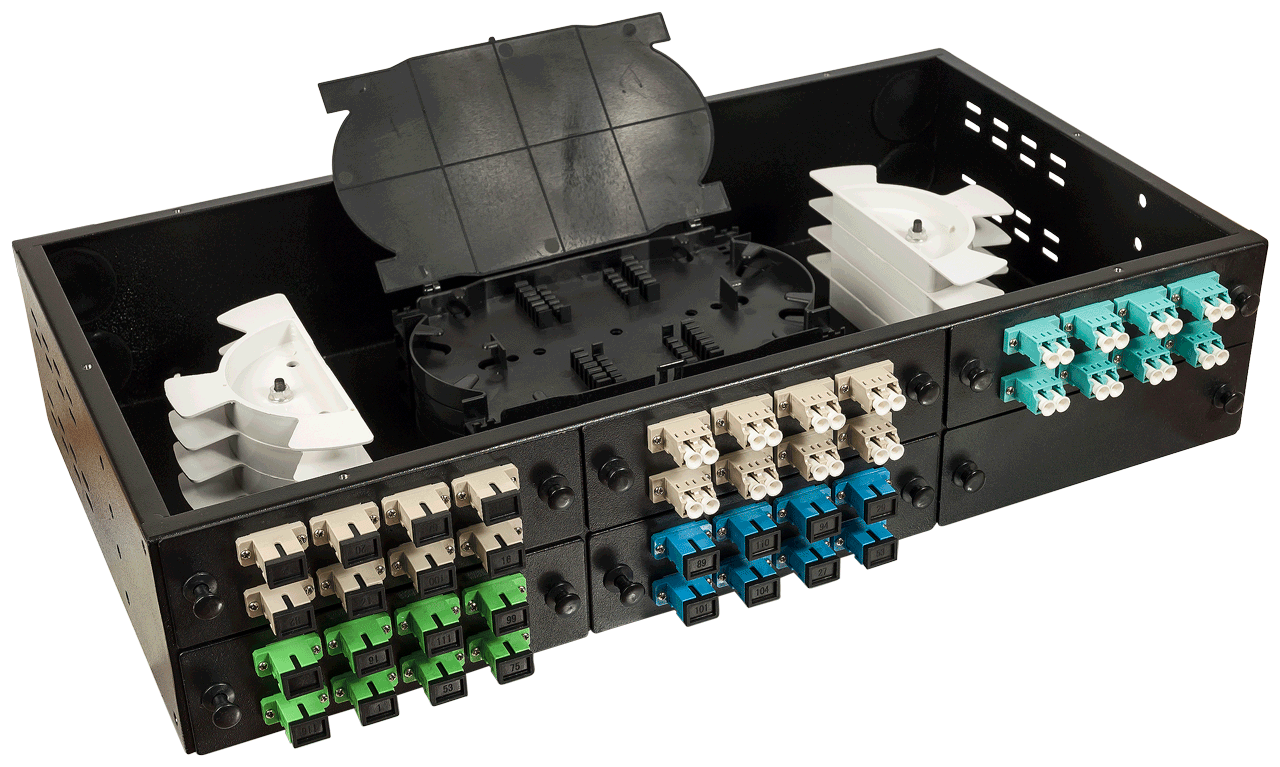

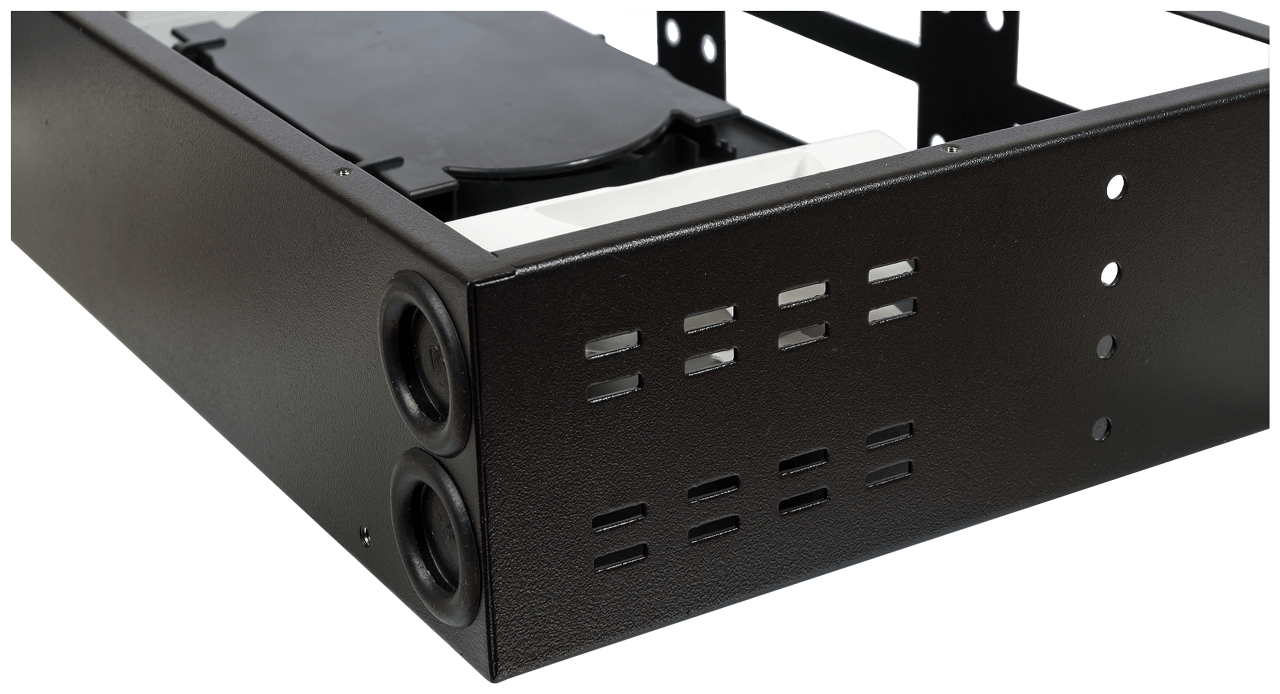

| Splice tray with removed cover | Cable entry and fastening |
 |  |

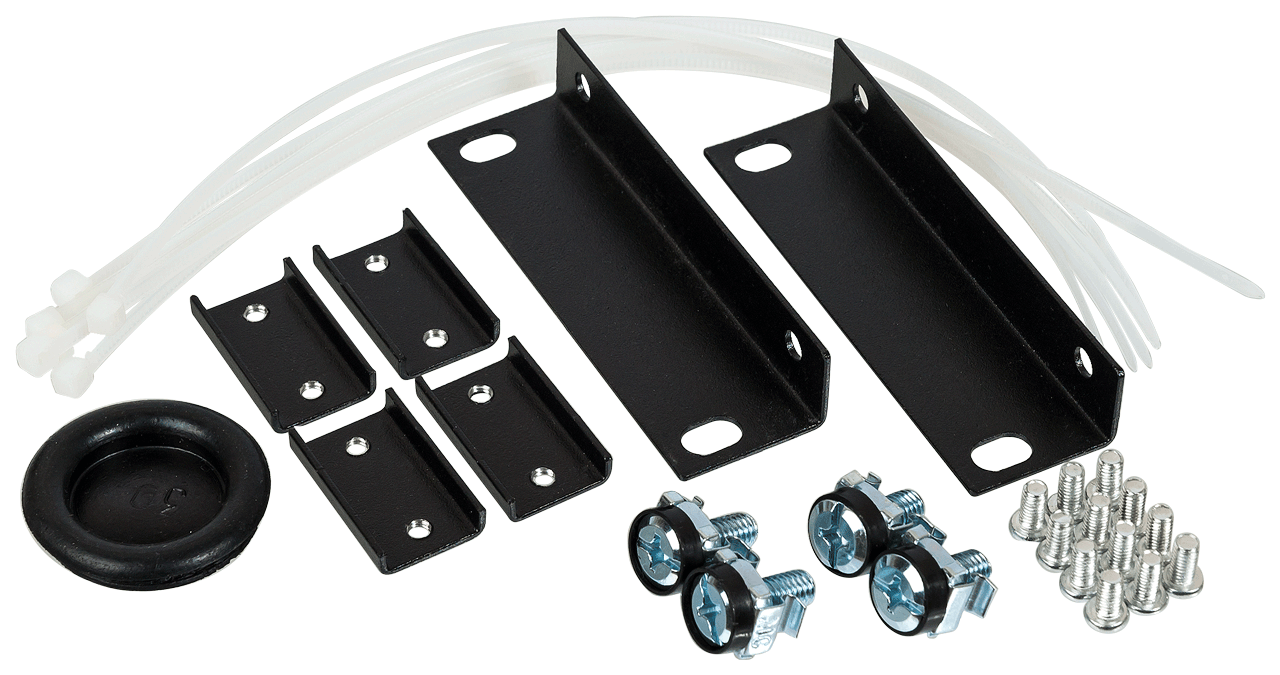

| Installation kit | |
 | |
Kit includes:
- Enclosure with 3 splice trays – 1 pc
- Cable tie 200 mm – 6 pcs
- M6 screw with cage nut – 4 pcs
- М4 screw – 8 pcs
- Rails mounting brackets – 2 pcs
- U-shaped bar for fastening the strength member – 4 pcs
