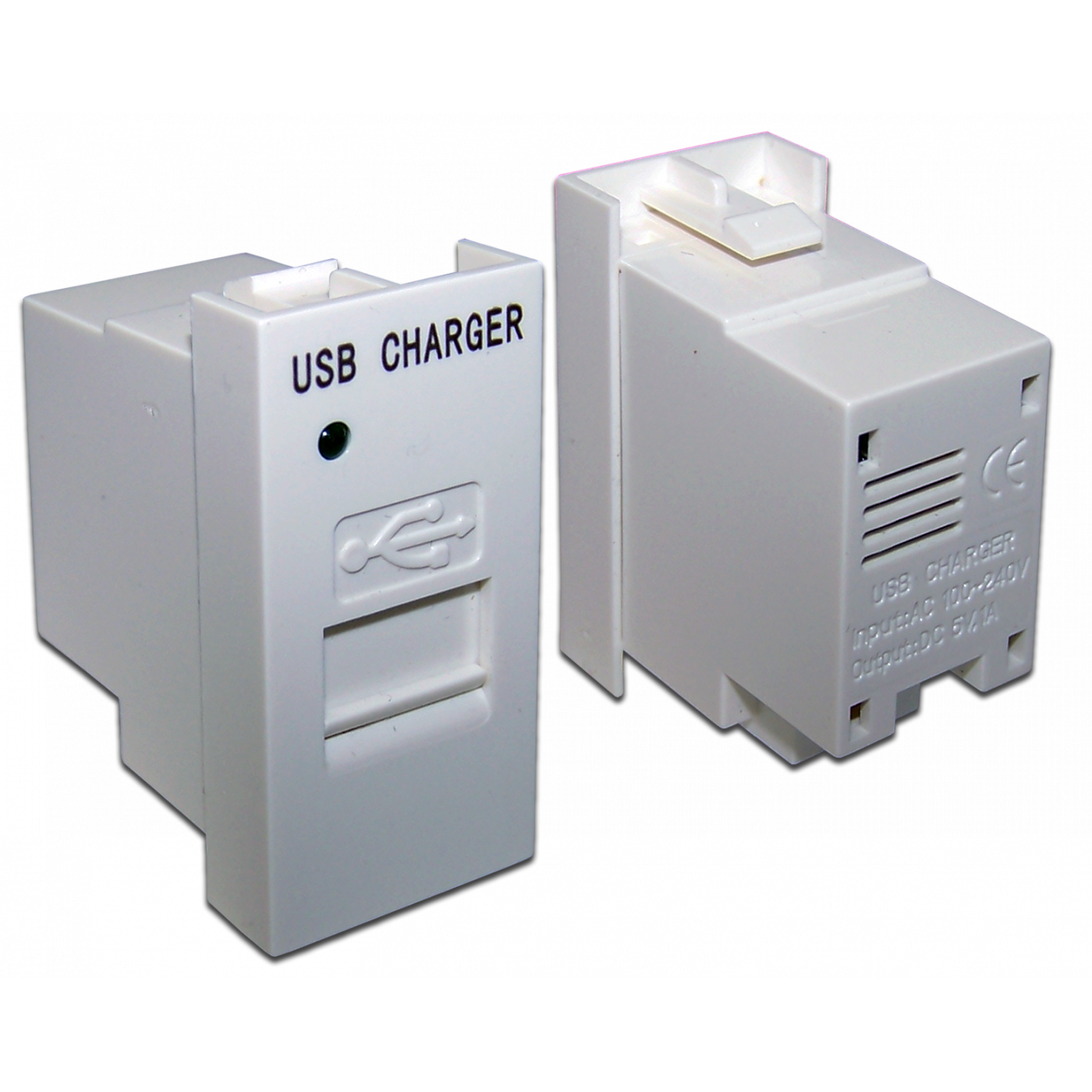

USB charger, one socket, with switch, 1A/5V, 22.5x45, white
USB charger, one socket, with switch, 1A/5V, 22.5x45, white
LAN-EZ45x22-1xUSB-WH
The USB charging module is designed to recharge the batteries of electronic devices from a 127-220V AC power supply.
Switching the charger on or off is made out using a protective shutter of the USB socket. When the charger is turned on (output voltage is supplied to the USB socket) the LED indicator on the front panel of the module lights up.
The module has a size of 22.5x45 mm of the French Mosaic typesize and can be installed to socket frames, in service columns, floor boxes and wall boxes.
Specifications
- Input voltage range: 100 – 240V, 50Hz
- Output voltage: 5V
- Charging current: 1A
- Operating temperature range: from 0° to +40° C
- Protection rating against dust and moisture: IP20
- Mounting size: 22.5х45 mm
- Made of: ABS
- Color: white (RAL 9010)
