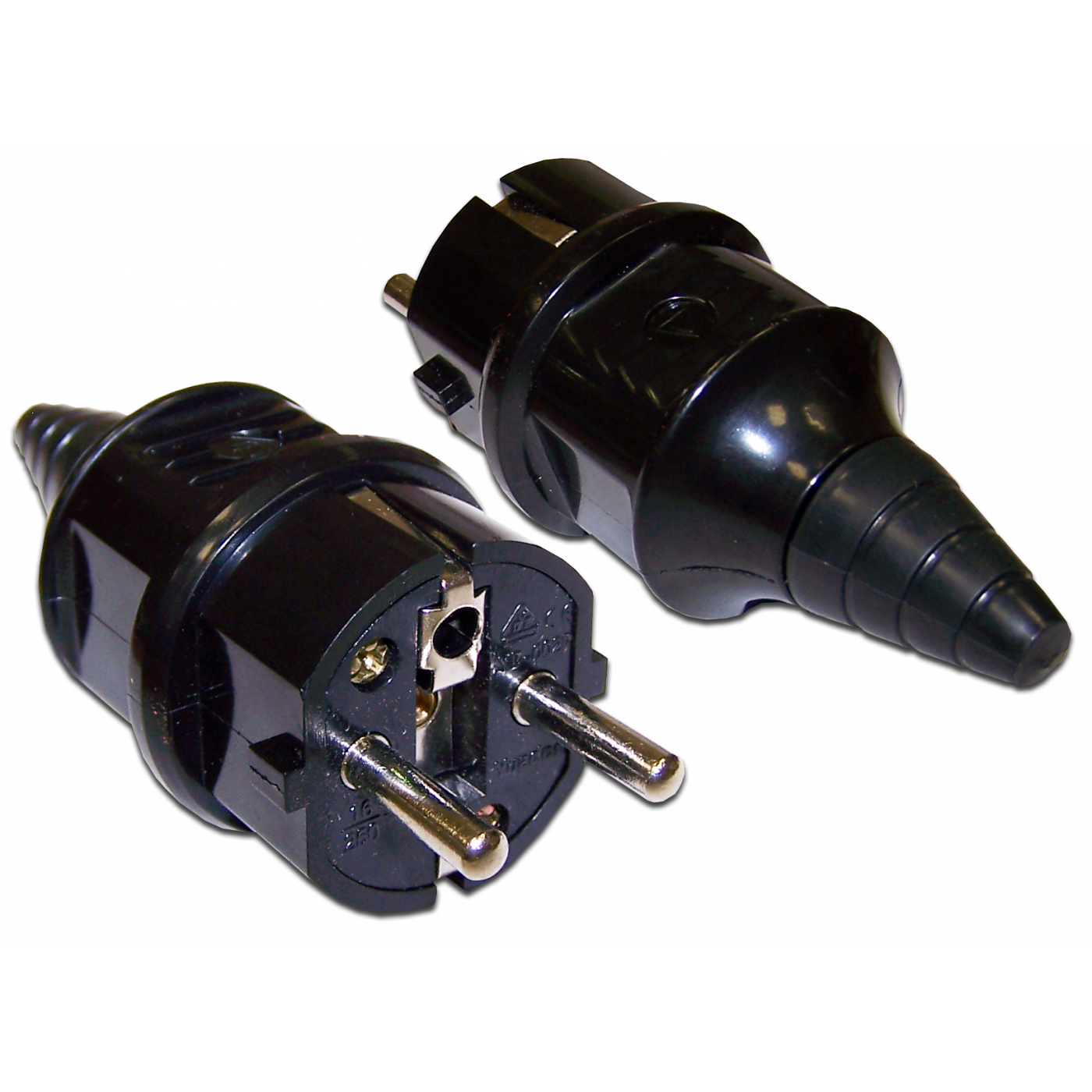

CEE 7/7 Schuko Plug, 16A, 250V, straight, dismountable, black
CEE 7/7 Schuko Plug, 16A, 250V, straight, dismountable, black
LAN-CEE-7/7-180
The Schuko plug is intended for installation on electrical cables for connection to electrical three-pin German or French style sockets.
The plug has 3 screw terminals: phase, neutral and earth. The entry point of the cable has a rubber strain relief to protect the electrical cables of various diameters.
The plug has a clamping grip for the cable jacket. The dismountable housing allows multiple mounting/dismounting of the plug on the cable without performance degradation.
Insulator made of glass fiber reinforced polybutylene terephthalate (PBT) is UL-94V-O rated.
Color is black.
| Rated voltage: | 125/ 230 V AC |
| Max. allowable voltage: | 250 V AC |
| Rated frequency: | 50 Hz |
| Max. load current: | 16 A |
| Max. working temperature: | 75°С |
| Max. rated voltage: | Short term 2000V |
| Insulator resistance: | not less than 1000 MOhm |
