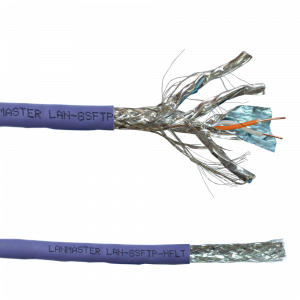

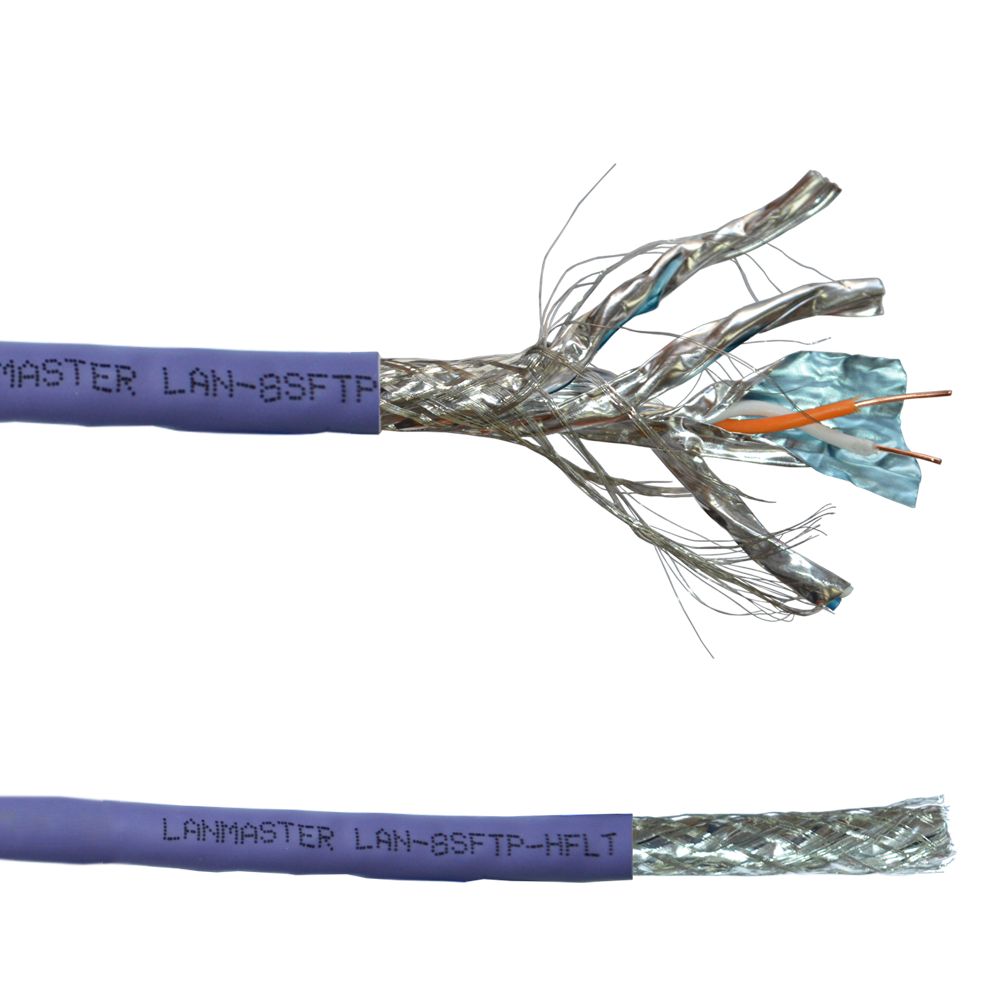

LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m
LANMASTER SFTP cable, 4 pairs, cat. 8, 2000Mhz, нг(А)-HFLTx, 305 m
LAN-8SFTP-HFLT
Shielded 4-pair cable of category 8.1 for transmitting information at frequencies up to 2000 MHz. The cat 8 cable has an operating frequency twice that of cat7.
They are used exclusively in the professional field.

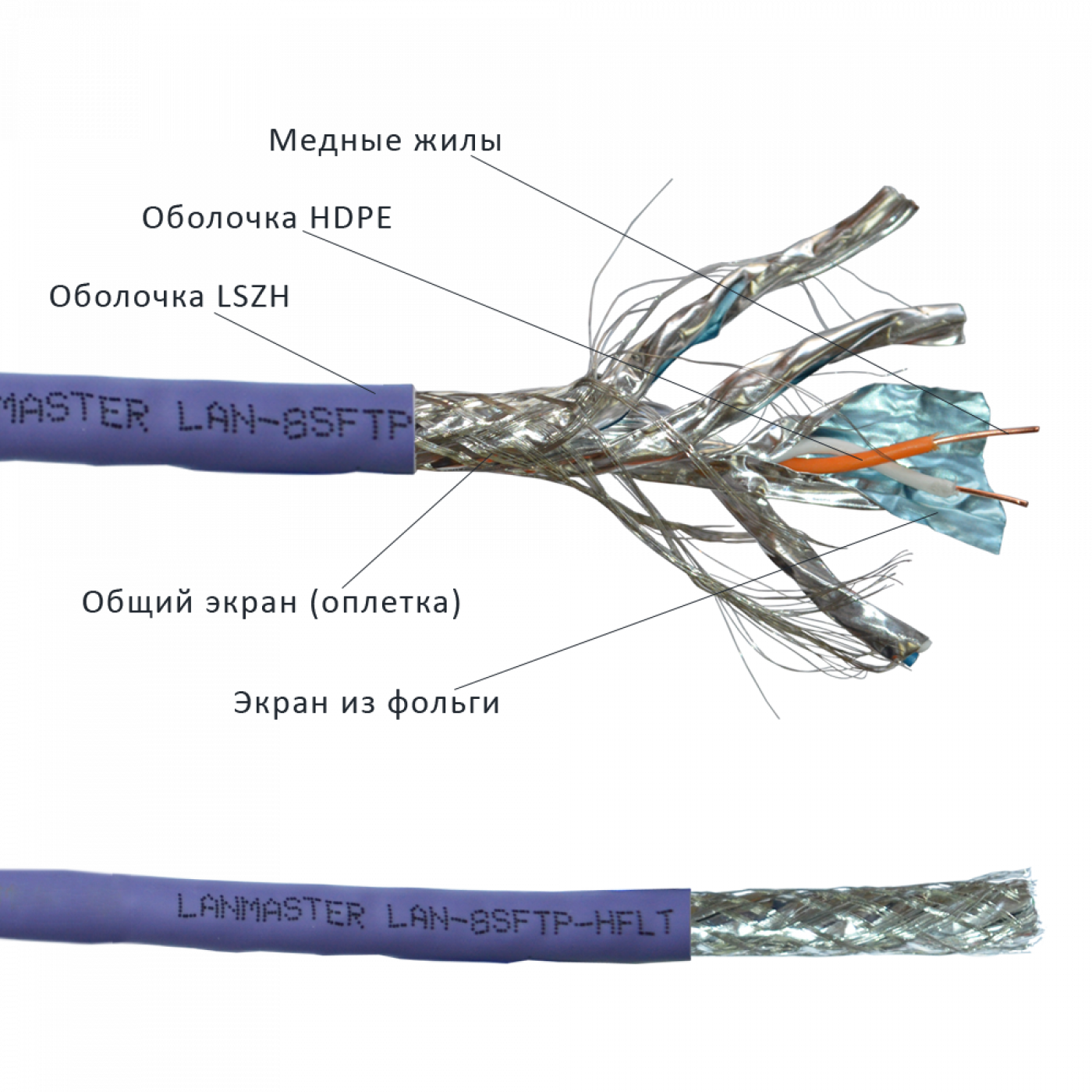

The cable design includes 4 twisted pairs in individual foil screens. The common braided shield provides reliable protection of the cable conductors from electromagnetic interference. The cable sheath is HFLTx.
| Characteristic | Value |
| Type of conductor | Solid |
| Conductor Diameter | 22 AWG |
| Insulation Type | HDPE |
| Outer jacket | HFLT |
| Sheath color | violet |
| Cable diameter | 7,8+_0,1 mm |
| Operating temperature range | to +75oС |
| Complies with | ANSI/TIA-568-C.2-1 |
| Meters in a box | 305 m |
| Frequency range | 1-2000 Mhz |
