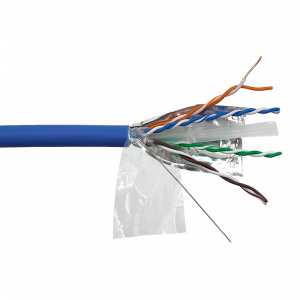

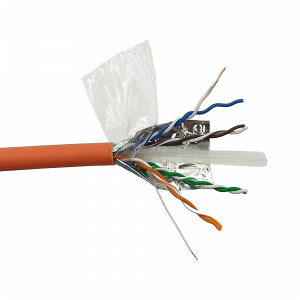

LANMASTER FTP cable, 4 pairs, cat. 6, with separator, 250Mhz, LSZH, 305 m
LANMASTER FTP cable, 4 pairs, cat. 6, with separator, 250Mhz, LSZH, 305 m
LAN-6EFTP-LSZH-xx

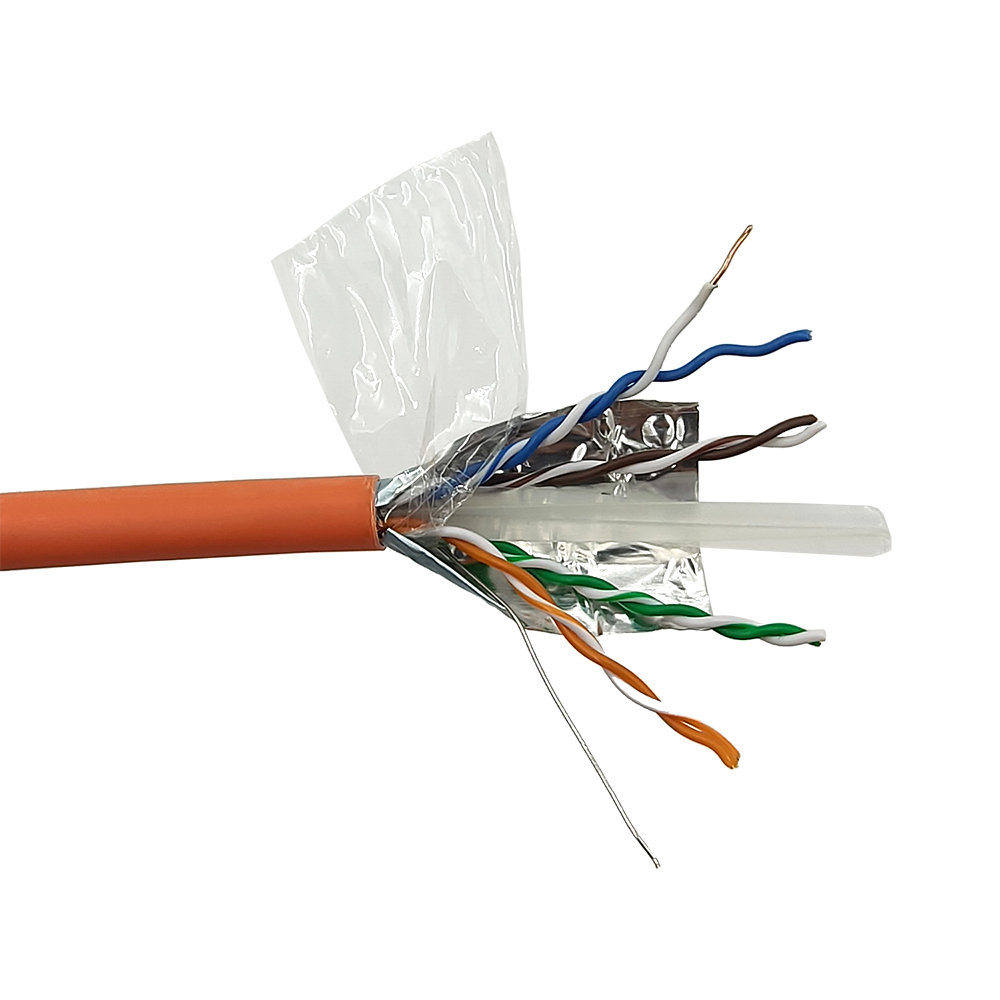

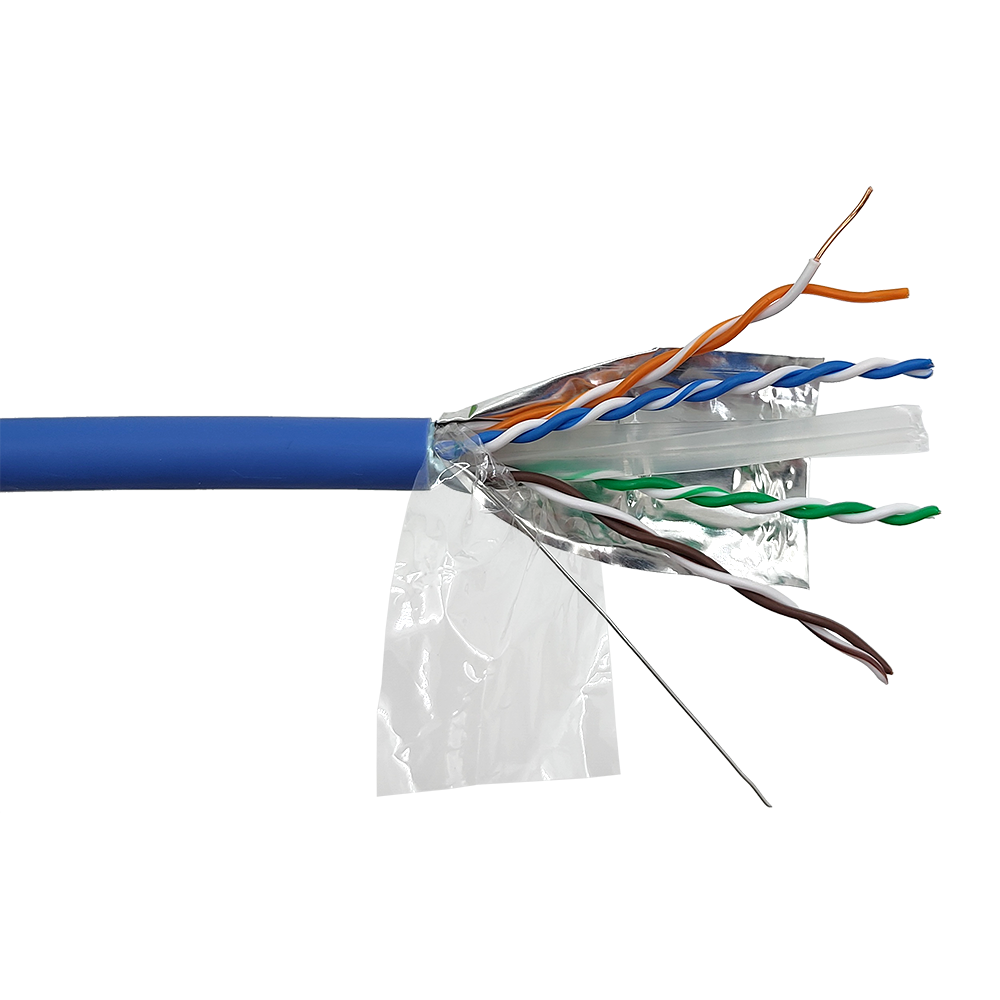

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.

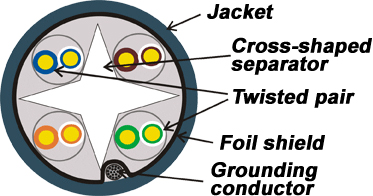

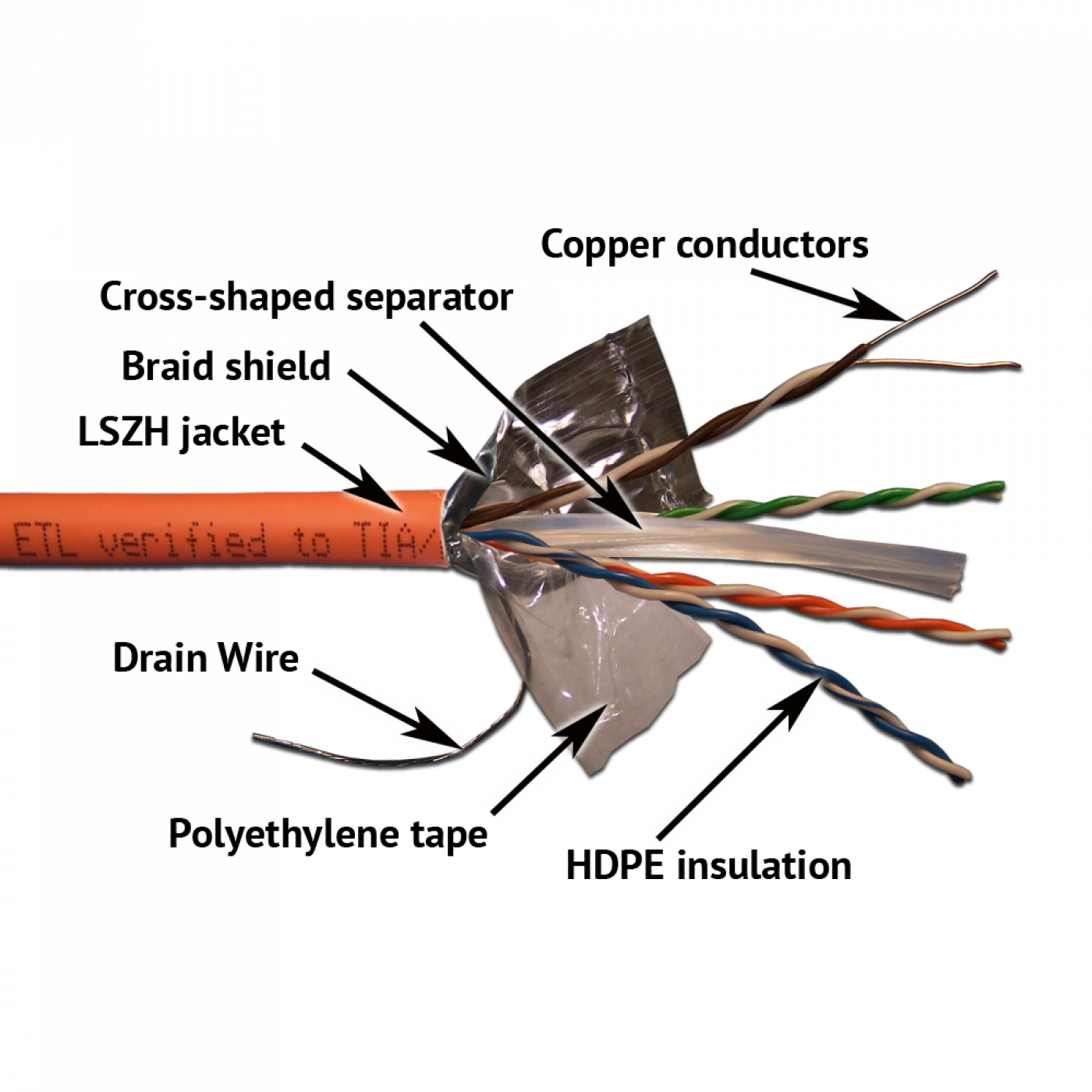

The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.
4 twisted pairs are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common foil screen and LSZH (low smoke, zero-halogen) jacket.
Characteristic of the cable:
| Characteristic | Value |
|---|---|
| Type of conductor | Solid |
| Conductor Diameter | 23 AWG |
| Insulation Type | HDPE (High Density Polyethylene) |
| Outer jacket | LSZH |
| Sheath color | Orange |
| Cable diameter | 7,2 мм |
| Operating temperature range | до +75oС |
| Impedance | 100 ± 15 Ом |
| Fire resistance level | CM ( generous purpose communication cable) |
| DC Resistance Unbalance of a pair | 5% |
| Capacitance Unbalance pair to Ground | 330 pF / 100 m |
| Propagation Delay Skew | 40 nS / 100 m |
| Nomal velocity propagation | 69% |
| Certified by the laboratory | 3P & ETL |
| Complies with | ISO/IEC 11801; EN50173-1; IEC 60332-1-2 754 1034 811 HD 624.7 |
| Meters in a box | 305 м |
| Color coding | Pair 1 "blue/white-blue"; Pair 2 "orange/white-orange"; Pair 3 "green/white-green"; Pair 4 "brown/white-brown". |
Cable transfer characteristics:
| Frequency (MHz) | IL (dB/100 м) | NEXT (dB) | ACR (dB) | PS.NEXT (dB) | PS.ACR (dB) | ELFEXT (dB/100 м) | PS.ELFEXT (dB/100 м) | Return Loss (dB) |
|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 | 74.3 | 72.3 | 72.3 | 70.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 61.5 | 63.3 | 59.5 | 55.7 | 52.7 | 23.0 |
| 8 | 5.3 | 60.8 | 55.3 | 58.8 | 53.3 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 53.3 | 57.3 | 51.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.3 | 48.7 | 54.3 | 46.7 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 46.3 | 52.8 | 44.3 | 41.7 | 38.7 | 25.0 |
| 25 | 9.6 | 53.3 | 43.7 | 51.3 | 41.7 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 41.2 | 49.9 | 39.2 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 32.0 | 45.1 | 30.0 | 31.8 | 28.8 | 21.5 |
| 100 | 19.8 | 44.3 | 24.5 | 42.3 | 22.5 | 27.8 | 24.8 | 20.1 |
| 155 | 25.1 | 41.5 | 16.4 | 39.5 | 14.4 | 23.9 | 20.9 | 18.8 |
| 200 | 29.0 | 39.8 | 10.8 | 37.8 | 8.8 | 21.7 | 18.7 | 18.0 |
| 250 | 32.8 | 38.3 | 5.5 | 36.3 | 3.5 | 19.8 | 16.8 | 17.3 |
