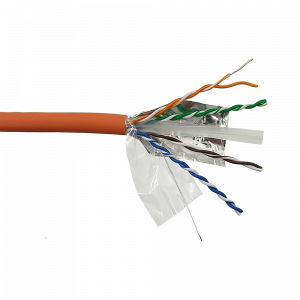

LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, 305 m
LANMASTER FTP cable, 4 pairs, cat. 6A, with separator, 500Mhz, LSZH, 305 m
LAN-6AFTP-LSZH-xx

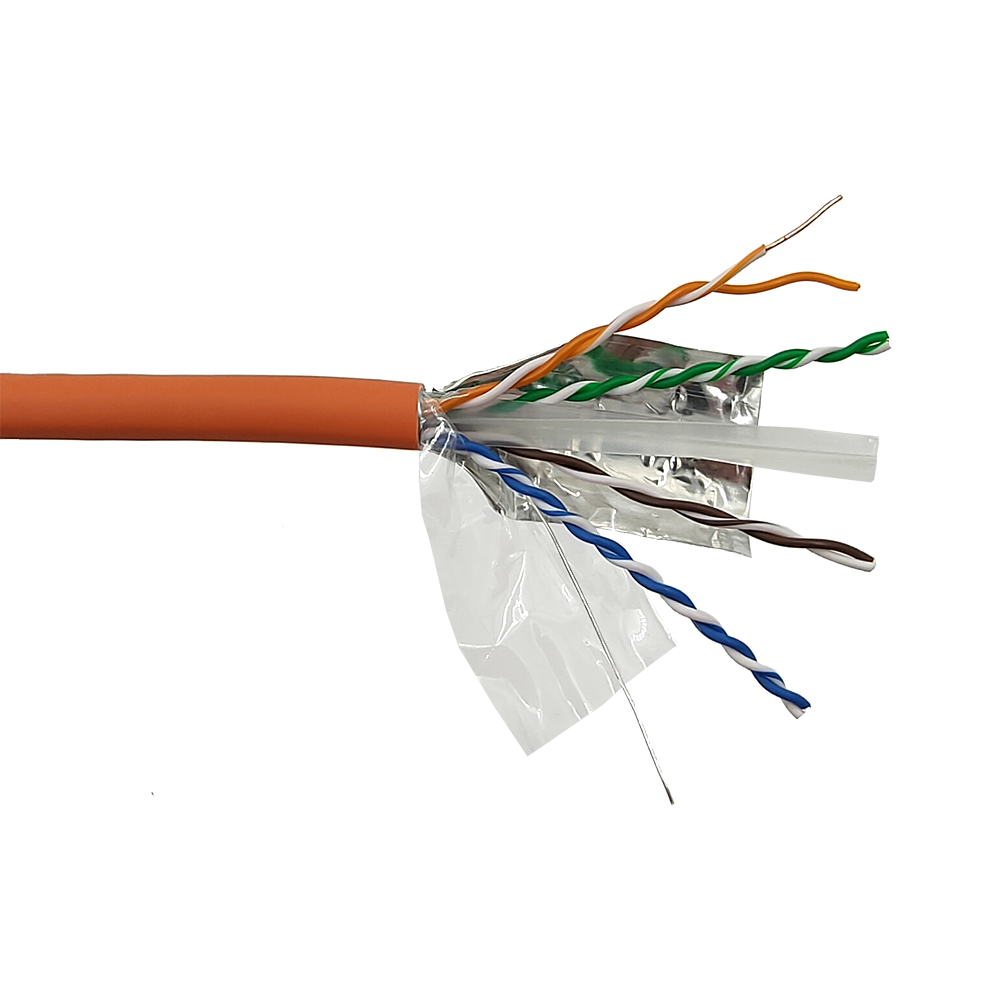

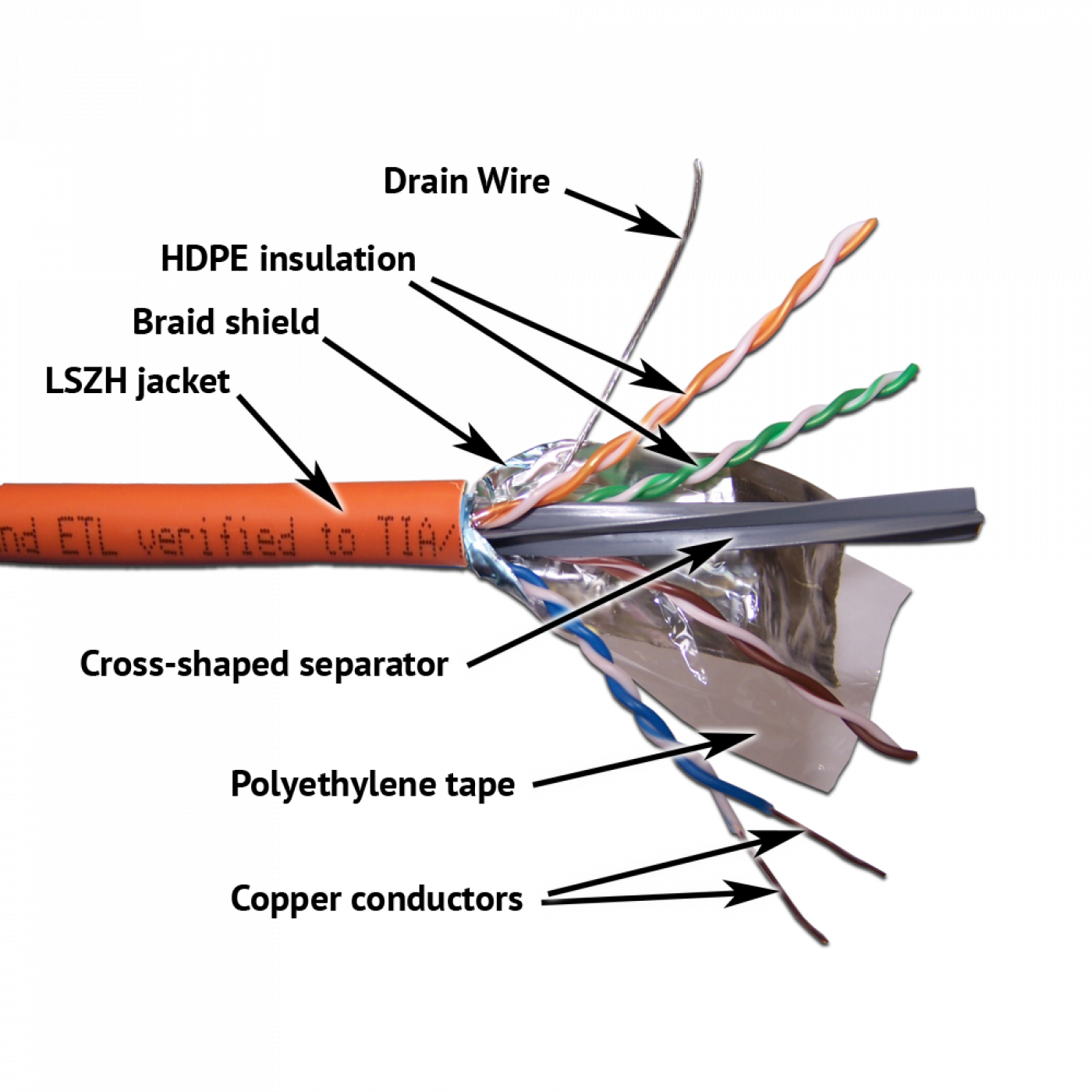

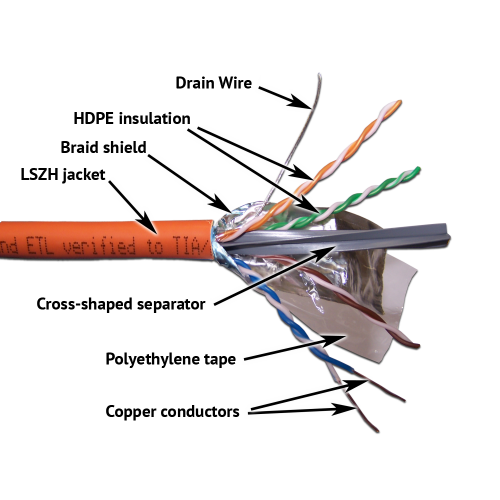

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG. Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.
The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.
4 twisted pairs and partition are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common laminated foil screen and LSZH jacket.
Sequential meter length marks are printed on the cable jacket.
Characteristic of the cable:
| Characteristic | Value |
|---|---|
| Type of conductor | Solid |
| Conductor Diameter | 23 AWG |
| Insulation Type | HDPE (High Density Polyethylene) |
| Outer jacket | LSZH |

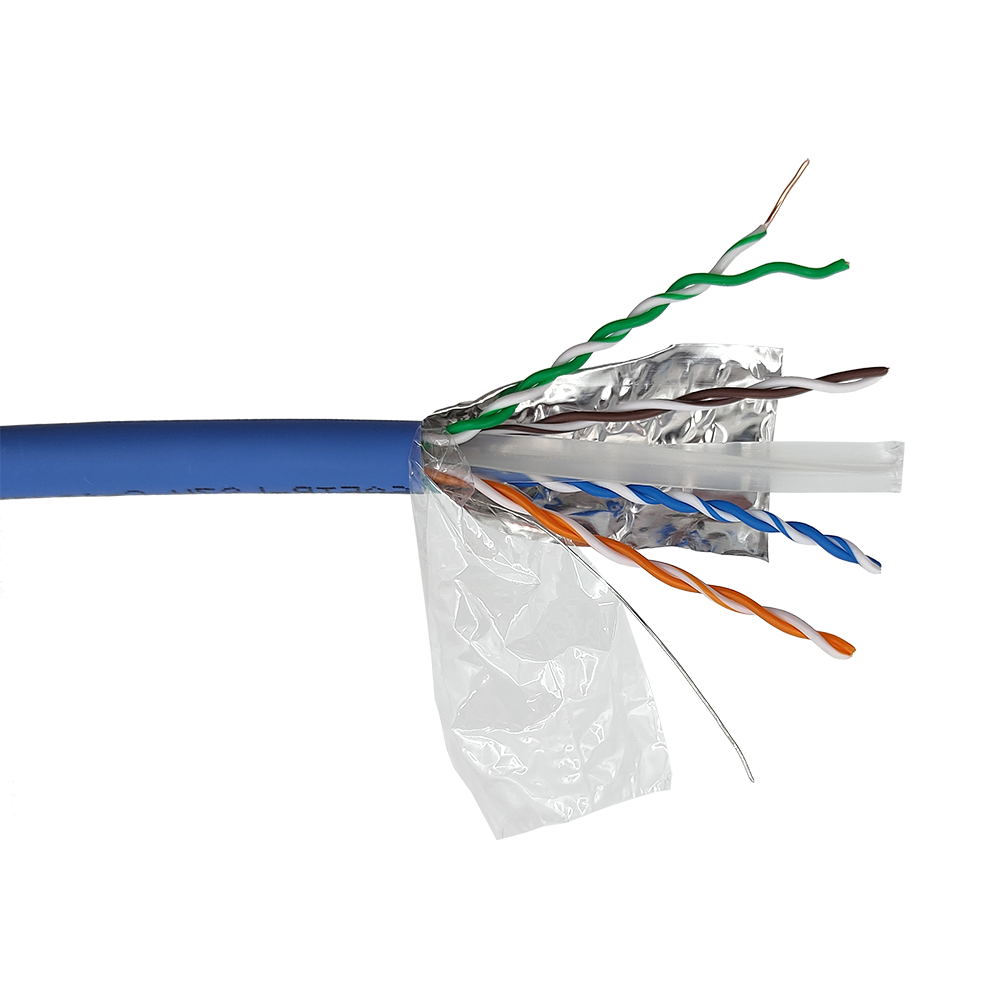

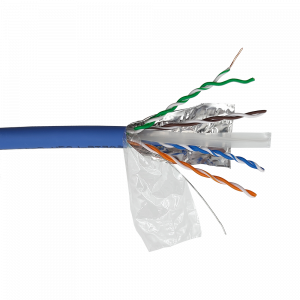

| Sheath color | Orange, Blue |
| FTP screen type | laminated aluminum foil around 4 pairs |
| Cable diameter | 7,7 mm |
| Operating temperature range | to +60oС |
| Impedance | 100 ± 15 Ohm |
| Fire resistance level | CM |
| DC Resistance Unbalance of a pair | 5% |
| Capacitance Unbalance pair to Ground | 330 pF / 100 m |
| Propagation Delay Skew | 1 ~ 500 MHz 45nS/100m MAX. |
| Nomal velocity propagation | 67% |
| Certified by the laboratory | 3P, UL, ETL VERIFIED |
| Complies with | TIA/EIA 568-С.2-1 cat. 6А; ISO/IEC 11801; EN 50173 |

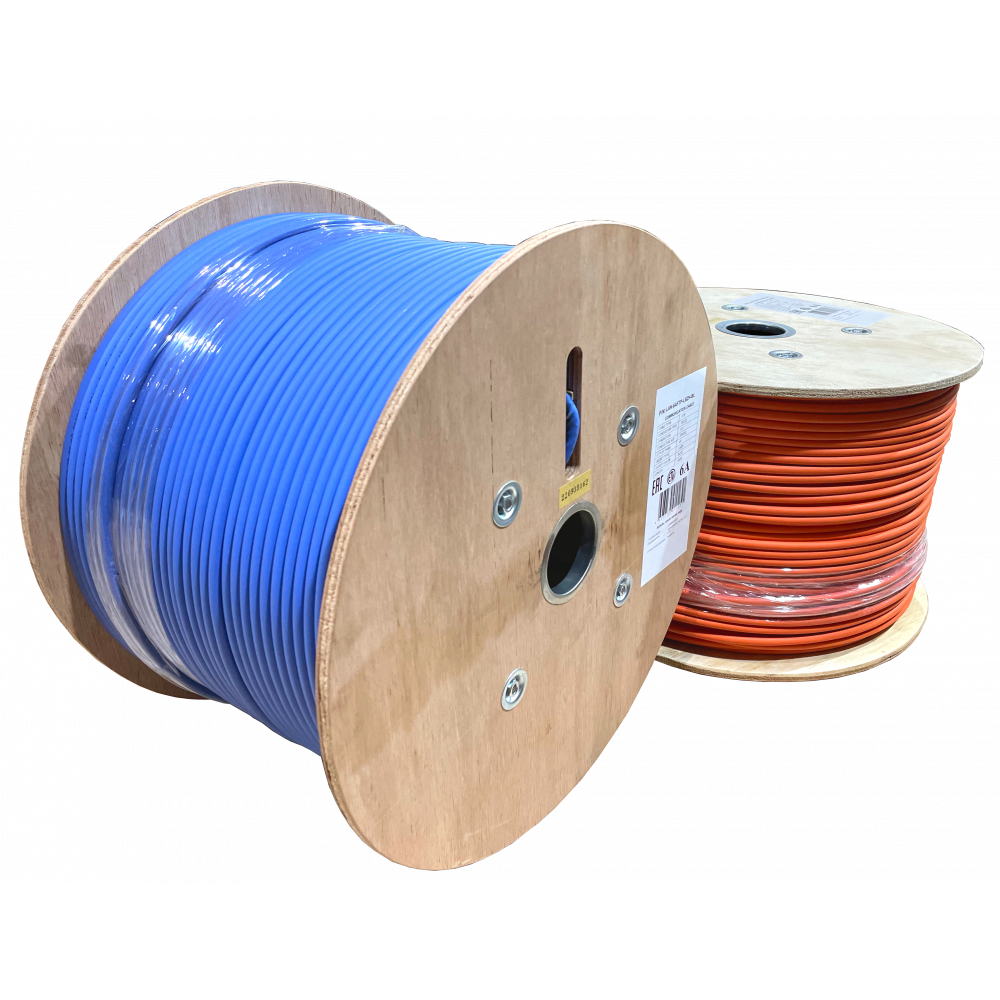

| Meters in a box | 305 м |
| Frequency range | 1-500 Mhz |
| Color coding | Pair 1 "blue/white-blue"; Pair 2 "orange/white-orange"; Pair 3 "green/white-green"; Pair 4 "brown/white-brown". |
| Frequency(MHz) | IL MAX.(dB/100m) | NEXT MIN.(dB) | ACR MIN.(dB) | PS.NEXT MIN.(dB) | PS.ACR MIN.(dB) | ACRF MIN.(dB)/100m) | PS. ACRF MIN.(dB/100m) | R.L. MIN.(dB) |
|---|---|---|---|---|---|---|---|---|
| 1 | 2.1 | 75.3 | 73.2 | 73.3 | 71.2 | 68.0 | 65.0 | 20.0 |
| 4 | 3.8 | 66.3 | 62.5 | 64.3 | 60.5 | 56.0 | 53.0 | 23.0 |
| 8 | 5.3 | 60.8 | 55.5 | 59.8 | 54.5 | 49.9 | 46.9 | 24.5 |
| 10 | 5.9 | 60.3 | 54.4 | 58.3 | 52.4 | 48.0 | 45.0 | 25.0 |
| 16 | 7.5 | 57.2 | 49.7 | 55.2 | 47.7 | 43.9 | 40.9 | 25.0 |
| 20 | 8.4 | 55.8 | 47.4 | 53.8 | 45.4 | 42.0 | 39.0 | 25.0 |
| 25 | 9.4 | 54.3 | 44.9 | 52.3 | 42.9 | 40.0 | 37.0 | 24.3 |
| 31.25 | 10.5 | 52.9 | 42.4 | 50.9 | 40.4 | 38.1 | 35.1 | 23.6 |
| 62.5 | 15.0 | 48.4 | 33.4 | 46.4 | 31.4 | 32.1 | 29.1 | 21.5 |
| 100 | 19.1 | 45.3 | 26.2 | 43.3 | 24.2 | 28.0 | 25.0 | 20.1 |
| 155 | 24.1 | 42.4 | 18.3 | 40.4 | 16.3 | 24.2 | 21.2 | 18.8 |
| 200 | 27.6 | 40.8 | 13.2 | 38.8 | 11.2 | 22.0 | 19.0 | 18.0 |
| 250 | 31.1 | 39.3 | 8.2 | 37.3 | 6.2 | 20.0 | 17.0 | 17.3 |
| 300 | 34.3 | 38.1 | 3.8 | 36.3 | 2.0 | 18.5 | 15.5 | 16.8 |
| 400 | 40.1 | 36.3 | NA | 34.3 | NA | 16.0 | 13.0 | 15.9 |
| 500 | 45.3 | 34.8 | NA | 32.8 | NA | 14.0 | 11.0 | 15.5 |
