LANMASTER F/UTP cable, 4 pairs, cat. 6A, with separator, LSZH, нг(А)-HF, 305 м
LANMASTER F/UTP cable, 4 pairs, cat. 6A, with separator, LSZH, нг(А)-HF, 305 м
LAN-6AFTP-HFLT-xx

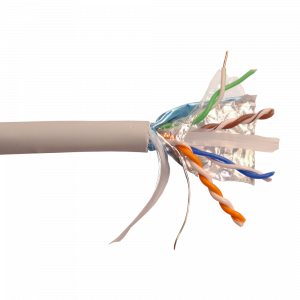

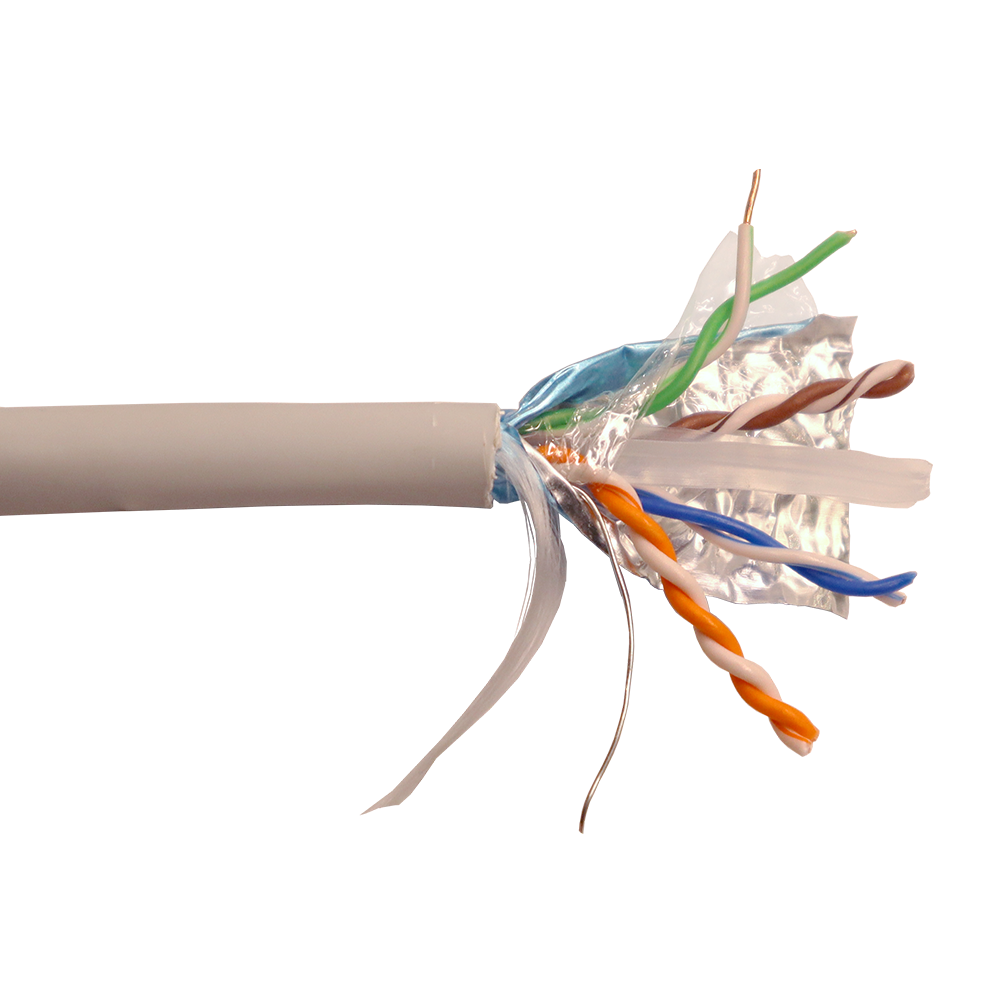

The cable consists of 4 pairs of single copper conductors.
The diameter of the conductor is 23AWG. Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.
The pairs are separated from each other by a cross-shaped partition increasing the transient attenuation between the pairs.
4 twisted pairs and partition are wrapped in polyethylene film and together with a solid copper grounding conductor are enclosed in a common laminated foil screen and HFLT jacket.
Sequential meter length marks are printed on the cable jacket.
Characteristic of the cable:
| Characteristic | Value |
|---|---|
| Type of conductor | Solid |
| Conductor Diameter | 23 AWG |
| Insulation Type | HDPE (High Density Polyethylene) |
| Outer jacket | LSZH |
| Sheath color | Violet, Gray |
| FTP screen type | laminated aluminum foil around 4 pairs |
| Cable diameter | 7,4 mm |
| Operating temperature range | to +60oС |
| Impedance | 100 ± 15 Ohm |
| Fire resistance level | CM |
| DC Resistance Unbalance of a pair | 5% |
| Capacitance Unbalance pair to Ground | 330 pF / 100 m |
| Propagation Delay Skew | 1 ~ 500 MHz 45nS/100m MAX. |
| Nominal velocity propagation | 67% |
| Certified by the laboratory | 3P |
| Complies with | TIA/EIA 568-С.2-1 cat. 6А; ISO/IEC 11801; EN 50173 |

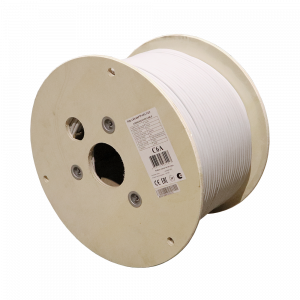

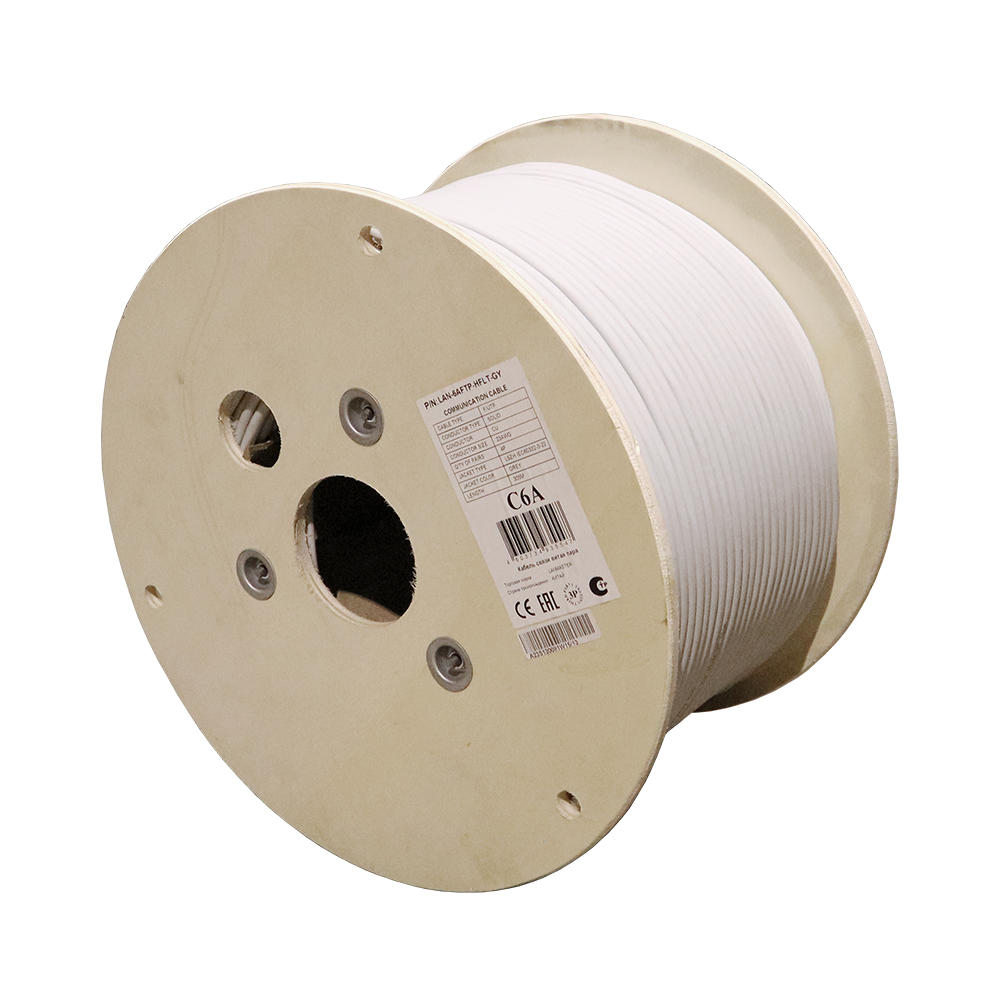

| Meters in a box | 305 м |
| Frequency range | 1-500 Mhz |
| Color coding | Pair 1 "blue/white-blue"; Pair 2 "orange/white-orange"; Pair 3 "green/white-green"; Pair 4 "brown/white-brown". |
