LANMASTER UTP cable, 4 pairs, cat. 5E, for outdoor

LAN-5EUTP-OUT

Description Compatible Products (3)

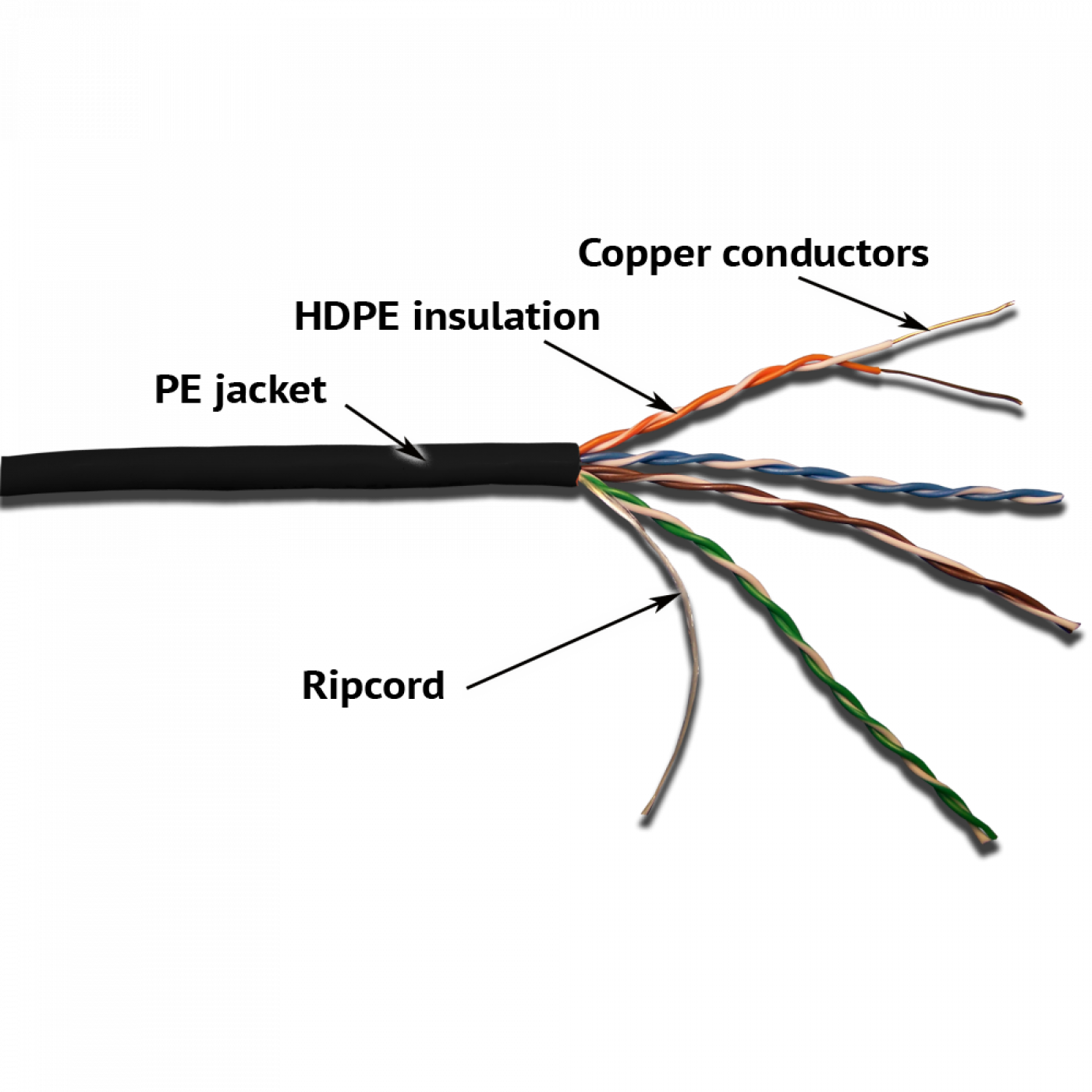

The cable consists of 4 pairs of solid copper conductors.
The diameter of the conductor is 24AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs are enclosed in a common PE (polyethylene) jacket.

The cable meets the requirements of standards:

3P & ETL Verified to TIA/EIA568-B.2 CAT 5e
UL444
EN50173
ISO/IEC 11801

Characteristic of the cable:

Characteristic	Value
Type of conductor	Solid
Conductor Diameter	24 AWG
Insulation Type	HDPE (High Density Polyethylene)
Outer jacket	PE (polyethylene)
Jacket Color	Black
Cable diameter	4,9 mm
Impedance	100±15 Ohm
Mutual Capacitance	56 pF/m (max)
DC Resistance	93.8 Ohm/1km
DC Resistance Unbalance of a pair	5%
Capacitance Unbalance pair to Ground	330 pF/100m
Propagation Delay Skew	45 ns/100m
Nomal velocity propagation	71%
Color coding	Pair 1 "blue / white-blue"; Pair 2 "orange/white-orange"; Pair 3 "green/white-green"; Pair 4 "brown/white-brown".
Fire resistance level	CMX
Operating temperature range	from -60^oС to +60^oС
Meters in a box	1000ft (305 m)

Cable transfer characteristics:

Frequency (MHz)	Attenuation max (dB/100m)	NEXT min (dB)	ACR min (dB)	PS.NEXT min (dB)	PS.ACR min (dB)	ELFEXT min (dB/100м)	PS.ELFEXT min (dB/100m)	Return Loss min (dB)
1	2.0	65.3	63.3	62.3	60.3	63.8	60.8	20.0
4	4.1	56.3	52.2	53.3	49.2	51.7	48.7	23.0
8	5.8	51.8	46.0	48.8	43.0	45.7	42.7	24.5
10	6.5	50.3	43.8	47.3	40.8	43.8	40.8	25
16	8.2	47.3	39.1	44.3	36.1	39.7	36.7	25.0
20	9.3	45.8	36.5	42.8	33.5	37.8	34.8	25.0
25	10.4	44.3	33.9	41.3	30.9	35.8	32.8	24.3
31.25	11.7	42.9	31.2	39.9	28.2	33.9	30.9	23.6
62.5	17.0	38.4	21.4	35.4	18.4	27.8	24.8	21.5
100	22.0	35.3	13.3	32.3	10.3	23.8	20.8	20.1
