LANMASTER FTP patch cord cable FTP, 4x2, cat. 5E, 100 MHz, LSZH, 305 m
LANMASTER FTP patch cord cable FTP, 4x2, cat. 5E, 100 MHz, LSZH, 305 m
LAN-5EFTP-PT-LSZH-xx

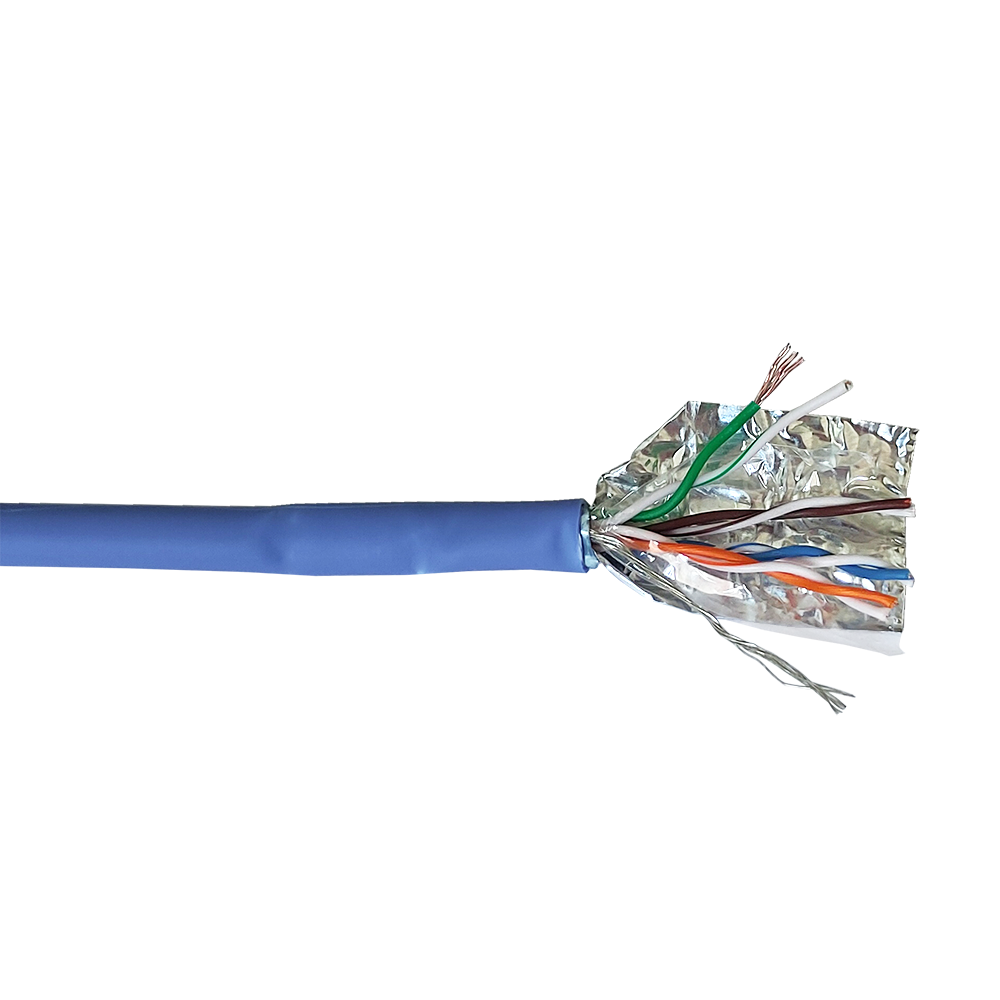

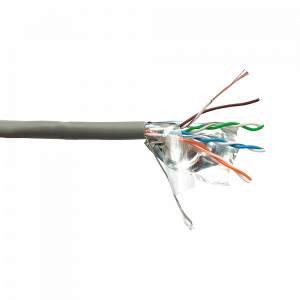

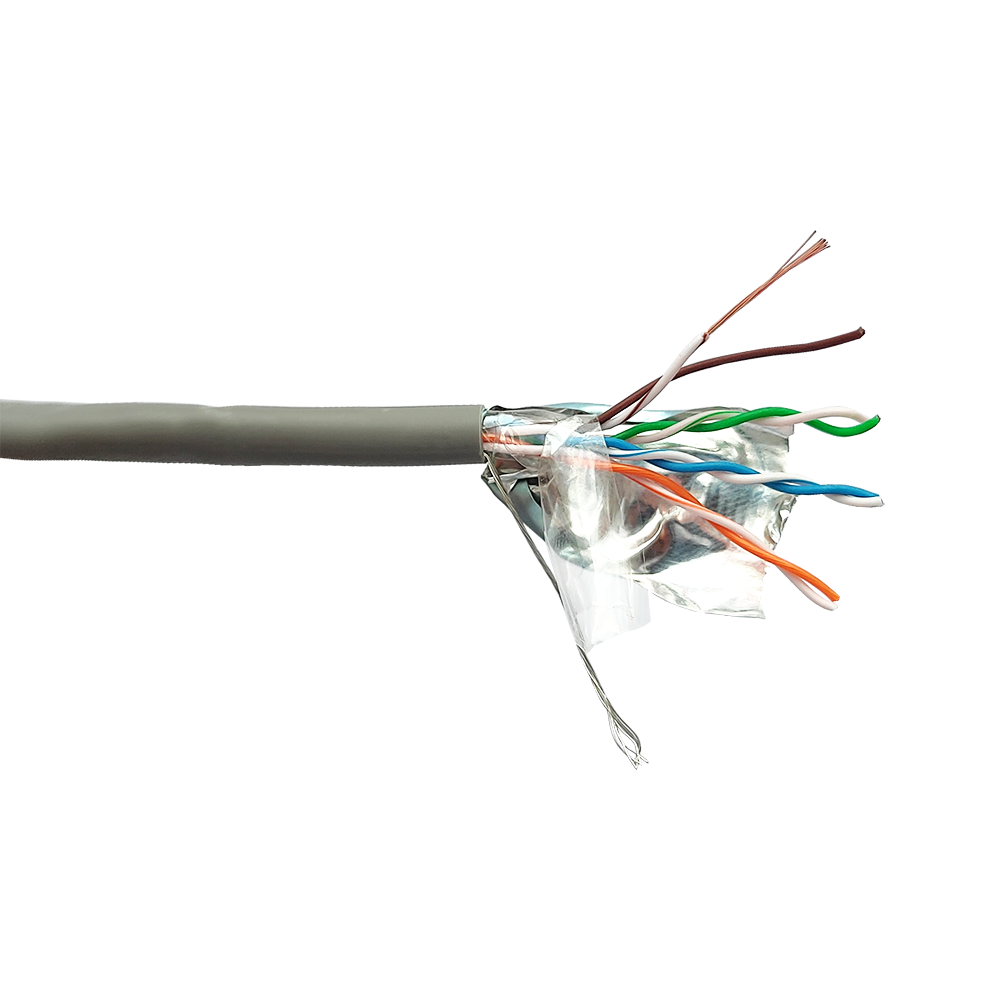

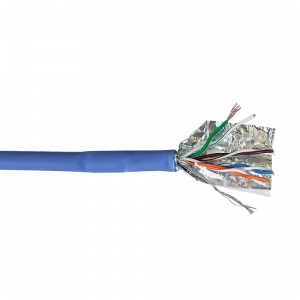

The cable consists of 4 pairs of stranded copper conductors.
The diameter of the conductor is 26AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.
Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs and a partition are put in a common LSZH (low smoke, zero halogen) jacket.
Characteristic of the cable:
| Characteristic | Value |
| Type of conductor | Stranded |
| Conductor Diameter | 26 AWG |
| Insulation Type | HDPE (High Density Polyethylene) |
| Outer jacket | LSZH |
| Cable diameter | 5.4 ± 0.2 mm |
| Nomal velocity propagation | 71% |
| Certified by the laboratory | 3P and ETL Certified |
| Complies with | TIA/EIA 568-C.2 cat. 5E; IEC 61156-6; IEC 60332-1-2; IEC 61034; IEC 60754-2 |

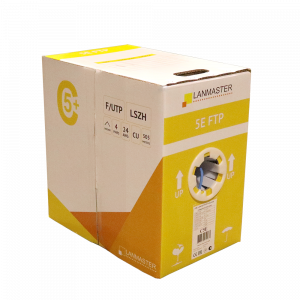

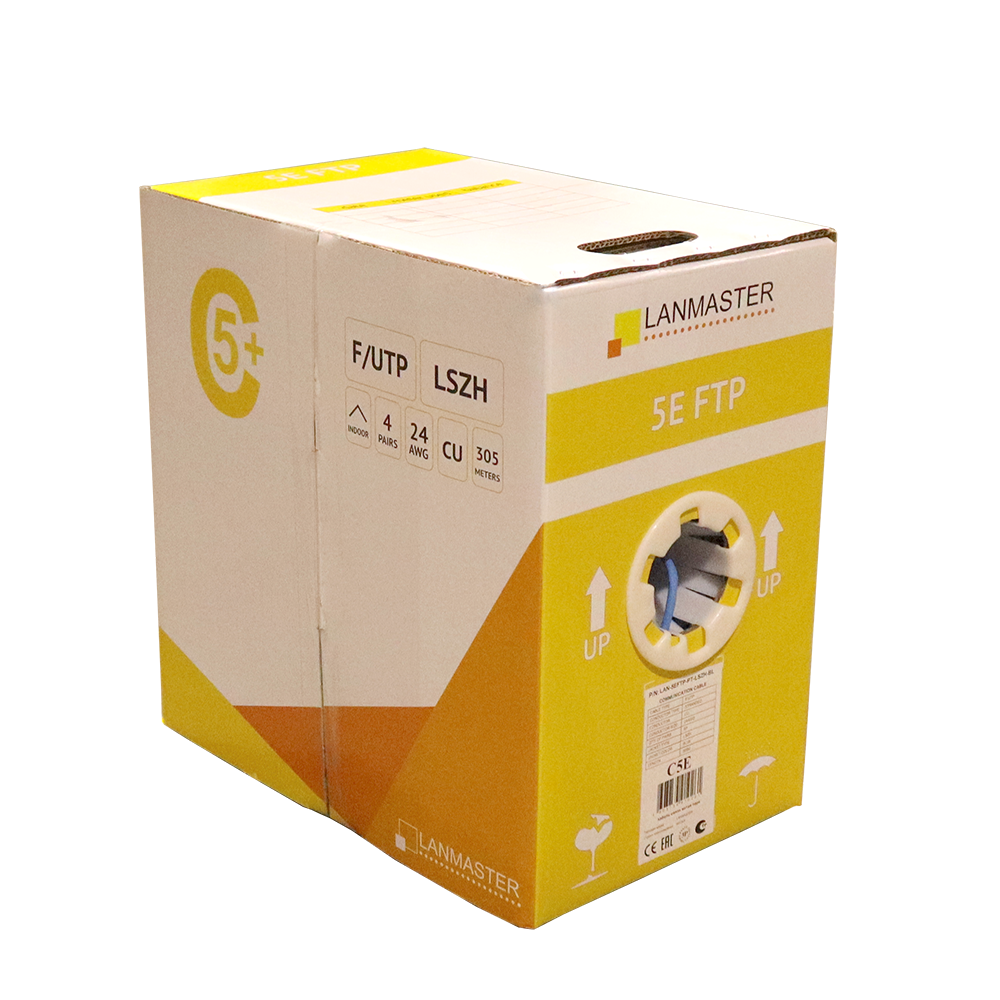

| Meters in box | 305 m |
| Color coding | Pair 1 "blue/white-blue"; Pair 2 "orange/white-orange"; Pair 3 "green/white-green"; Pair 4 "brown/white-brown". |
