LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m

LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m
LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m
LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m
LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m
LAN-5EFTP-HFLT-xx

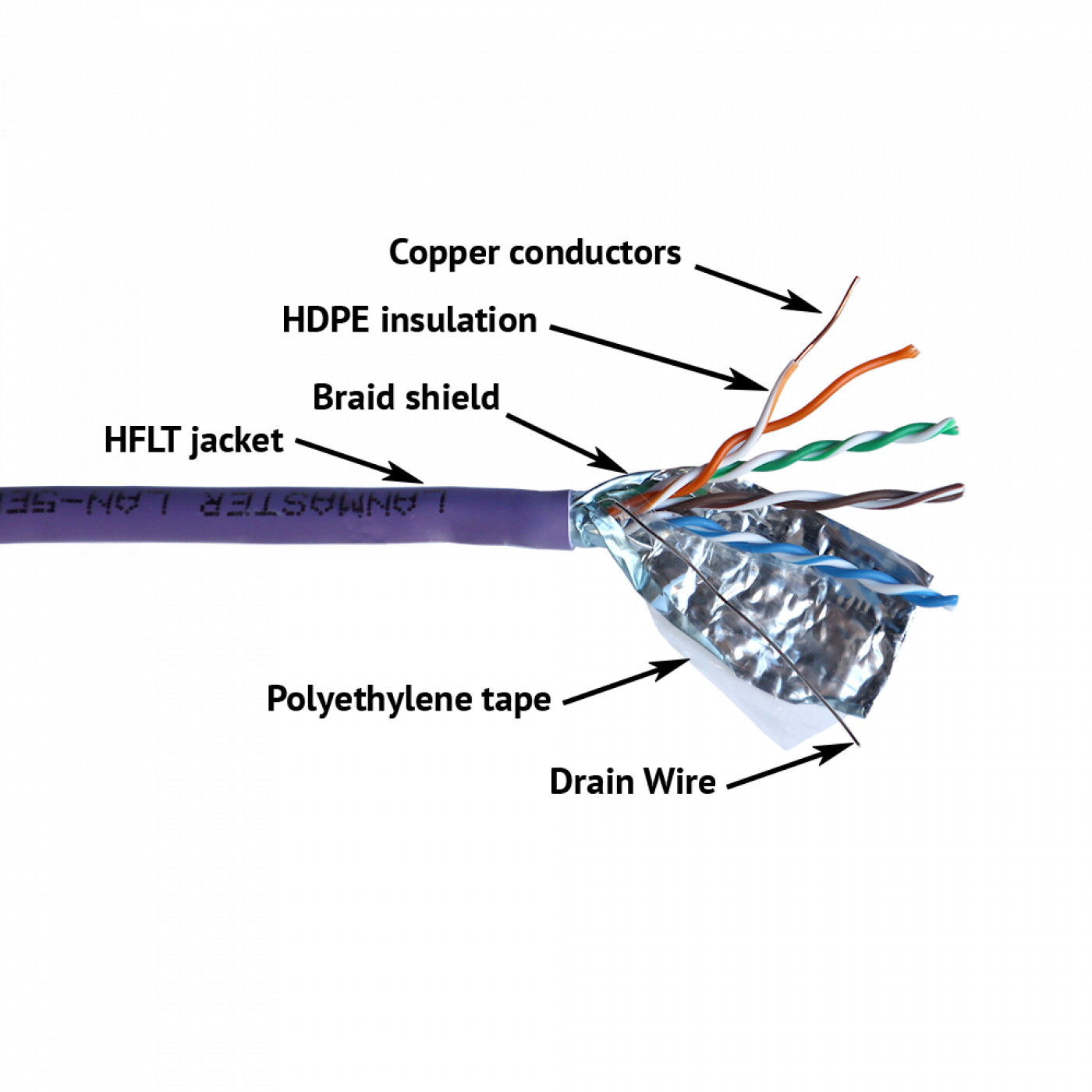

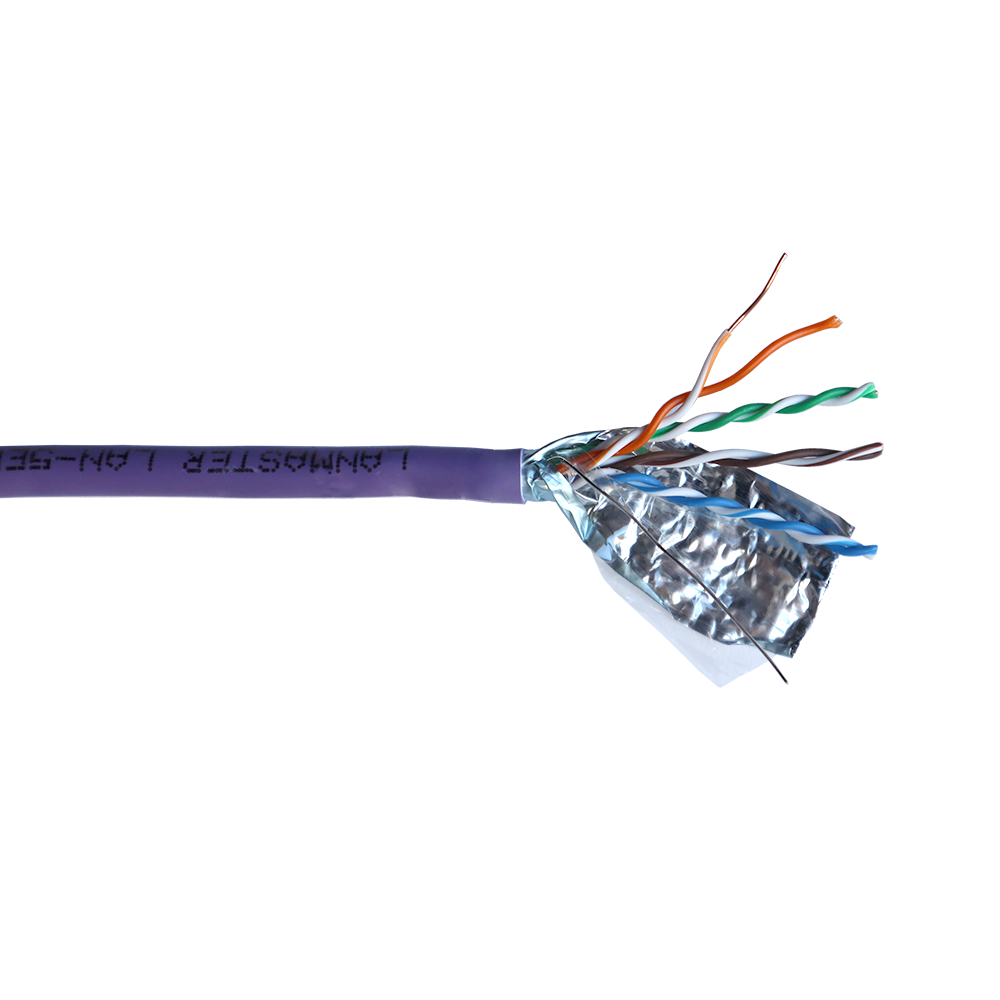

The cable consists of 4 pairs of stranded copper conductors.
The diameter of the conductor is 24 AWG.
Each conductor is protected with HDPE (high density polyethylene) insulation.

Two conductors stranded with a specially selected step make up one twisted pair.
4 twisted pairs and a partition are put in a common HFLT jacket.

Characteristic of the cable:

Characteristic Value
Type of conductor Solid
Conductor Diameter 24 AWG
Insulation Type HDPE (High Density Polyethylene)
Outer jacket
 HFLT
Cable diameter 6.1 ± 0.2 mm
Nominal velocity propagation 71%
Certified by the laboratory 3P
Complies with TIA/EIA 568-C.2 cat. 5E; IEC 61156-6; IEC 60332-1-2; IEC 61034; IEC 60754-2
Meters in box 305 m
Color coding Pair 1 "blue/white-blue";
Pair 2 "orange/white-orange";
Pair 3 "green/white-green";
Pair 4 "brown/white-brown".

Model range (2)

  • Code Code / Name Name Количество
  • LAN-5EFTP-HFLT-OR
    LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, 305 m
  • LAN-5EFTP-HFLT-VI
    LANMASTER FTP cable, 4x2, cat. 5E, 200 MHz, LSZH, violet, 305 m
Product descriptions are listed according to the available information at the time of publication. Product specifications can be changed without advanced notification. More detailed and exact information can be obtained from the official partners and distributors of LANMASTER.
